4ポート1.25G〜2ポート2.5G（1 + 1保護付き）FM-P-OTP800-TMUX（2G5）光マックスポンダサービスカード

FM SKU#:SKU00281I
Model#:FM-P-OTP800-TMUX(2G5)
MFG PART#:

8 Ports for Conversion of 4*1.25G to 2*2.5G Data with 1+1 Mode Protection Optical Muxponder Service Card

FM-P-OTP800-TMUX(2G5) is a kind of Muxponder service board developed by Fiber-Mart. It can transparently gather 2*1.25G data to 1*2.5G data, as well as provide 1+1 data backup for 2*2.5G ports, which can tremendously save room for WDM modules and fiber resources, strengthen stability, as well as save cost.

Key Features

• It provides 8 standard SFP ports, including 4 GE ports at the client side and 4 2.5G ports at the line side
• GE ports at the client side are isolated from each other
• It supports 1+1 backup protection for 2.5G ports at the line side
• It supports cross mapping of the data of all ports
• It supports statistics on error packet of each port
• It supports loopback setting of the client side and the line side
• It supports SNMP network management

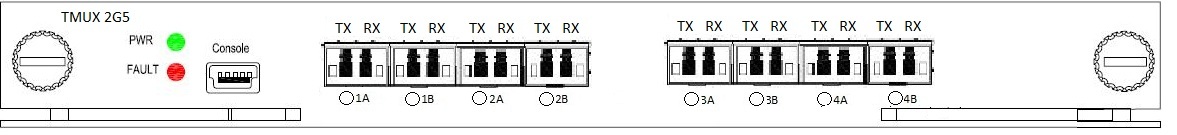

Front Panel Appearance

Valid Slots

The FM-OEO800-MUX(2G5) board occupies one slot.
Valid Slots in the Sub-racks
a. In the FM-P-OTP800-2S rack mount, there is no slot designed for SC control board.
b. In the FM-P-OTP800-4S rack mount, the valid slot of the board is SLOT1 only.
c. In the FM-P-OTP800-11S rack mount, the valid slot of the board is SLOT1 only.

Application

MUX (2G5) achieves multiplexing of four Gigabit Ethernet service to two 2.5G link, thereby reduces wavelength requirements of the WDM system. There are 4 pluggable SFP ports at the client side and 4 pluggable XFP ports at the line side.




Specifications include electrical specifications, optical specifications, laser level, mechanical specifications and power consumption.
