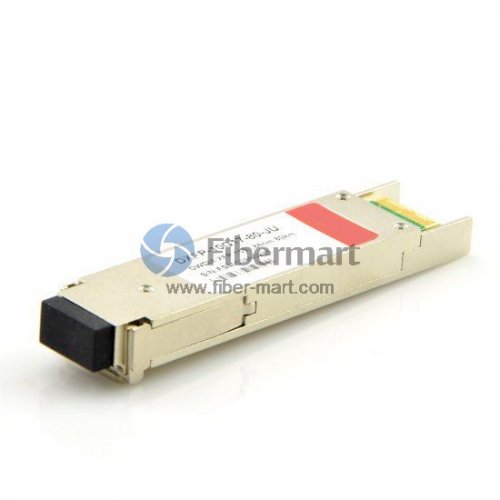

Juniper XFP-10G-CBAND-T50-ZR Compatible 10G DWDM C-band Tunable XFP 80km Transceiver

FM SKU#:SKU00867J2
Model#:TDWDM-XFP10G-80
MFG PART#:XFP-10G-CBAND-T50-ZR

TDWDM-XFP10G-80

Fiber-Mart TDWDM-XFP10G-80 series optical transceiver is a unique product which enables you to set the channel or “color” that the laser emits. Tunable transceivers are typically used as “spare-optics”, in case of emergency, because you can tune them to the right channel and reduce the amount of spare optics you need to hold in stock. Typically these tunable optics are for the C-Band 50GHz. Around 88 different channels can be set with intervals of 0.4nm, which is the 50GHz band. This tunable transceiver offers the same function with Juniper XFP-10G-CBAND-T50-ZR and it is fully compatible with Juniper devices. The TDWDM-XFP10G-80 complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement (MSA).

It complies with the ITU-T G.698.1 S-D100S1-2D standard with 50GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fibre Channel) applications. This transceiver contains both transmit and receive sections. On the transmit side, the 10 Gbps serial data stream is recovered, retimed, and passed to a modulator driver.

The modulator driver biases and modulates a C-band-tunable integrated laser, enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receive side, the 10Gbps optical data stream is recovered from an APD/transimpedance amplifier, retimed, and passed to an output driver. This module features a hot-pluggable XFI-compliant electrical interface.

Key Features

Supports 9.953 Gbps (SONET and SDH), 10.31 Gbps (Ethernet), 10.52 Gbps (Fibre Channel), and corresponding Forward Error Correction (FEC) rates of 10.66/10.709/11.09/11.35 Gbps

C3.Monolithically integrated full C-band tunable transmitter

50 GHz ITU channel spacing with integrated wavelength locker

80km MZM Tunable TOSA

Hot-pluggable XFP footprint

Maximum power dissipation of 3.5 W

Commercial operating temperature from -5°C to 70°C

Digital diagnostic monitoring support

Telcordia GR-253-CORE and tested in accordance with GR-468

ITU-T G.691

IEEE 802-3ae-2002

10 GFC 1200-SM-LL-L

Applications

DWDM 10Gb/s SONET/SDH

DWDM 10Gb/s SONET/SDH with FEC

SONET OC-192 and SDH STM-64

DWDM 10Gb/s Ethernet & 10Gb/s

Fiber Channel with FEC

Ordering Information

Packaging

Antistatic bag

Packed on pallets in a box(Default Customer Options)

Specific Labels as Request

Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiber-Mart provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiber-Mart in the world.

OEM/ODM order is available

We can supply TDWDM-XFP10G-80 according to your requirements, and design TDWDM-XFP10G-80 label and packaging for your company. We welcome any inquiry for customized 10G DWDM XFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying 10G Tunable DWDM XFP From Original Manufacturer Fiber-Mart Directly.

Fiber-Mart is an professional manufacturer & supplier of Tunable DWDM XFP transceivers. All of our Tunable DWDM XFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee Tunable DWDM XFP transceivers to work in your system and all of our Tunable DWDM XFP transceivers come with a lifetime advance replacement warranty. If you have questions about Tunable DWDM XFP optics, please feel free to contact us at [email protected].

Ordering Information

All the 10GB DWDM XFP 80km 100GHz Wavelengths that we can offer refer to the following table:

Prices and specifications are subject to change without notice. Fiber-MART.Com Transceiver is not responsible for typographical or photographic errors.
