ST-16ハンドヘルドFTTxフュージョンスプライサーキット

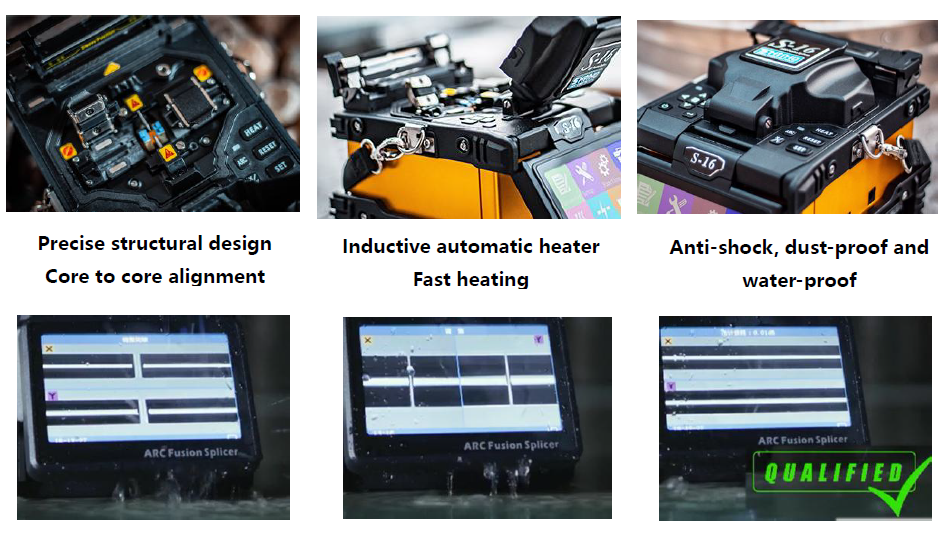

Alignment method

4 motors core to core alignment

Applicable fiber

SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)

Cladding diameter

80 -150μm

Coating diameter

160–1000μm

Cleaved length

5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)

Typical splice loss

SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB

Return loss

＞60dB

Splicing program

40 groups

Operation mode

Manual/ Automatic

Auto- heating

Available

Typical splice time

6 seconds

Typical heating time

18 seconds for 60mm and 40mm shrinkable sleeves

Fiber magnification

250X(X or Y view), 125X(X and Y view)

Viewing display

Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor

Data storage

4000 groups data records

Loss evaluation

Available

Tension test

1.8～2.25N

Interface

GUI menu interface, easy for operation

Battery capacity

5200mAh Li-battery, 250 cycles splicing and heating

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life

More than 4000 ARC discharges, easy to replace

Terminals

USB 2.0 port, for software upgrading, records exporting

Operating condition

Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s speed：max15m/s

160mm (L)×136mm (W)×140mm (H) /2.20kg (incuding battery)
