Model#:SM-STA-STA-SX--FM
MFG PART#:

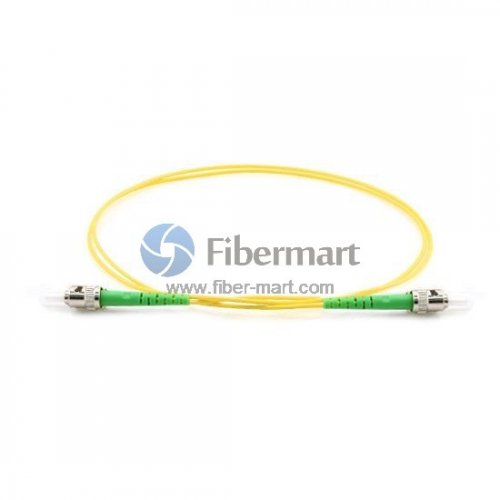

ST/APC to ST/APC Singlemode 9/125 Simplex Fiber Patch Cable
Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.
The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core. Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation.
The core of a single mode fiber optic cable is 9/125μ (micron).
Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.
Characteristics
-
ST/APC to ST/APC Connectors
-
Single-mode duplex fiber optic cable
-
Complete with orange OFNR rated riser/jacket
-
All of our fiber optic patch cables feature the high degree connectors
-
100% optically tested to ensure high performance
-
Micron: 9/125um
-
Color: Yellow
Specifications
Specification |
Unit |
FC, SC, LC/Armored Cables |
ST, MU |
MT-RJ, MPO |
E2000 |
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
Insertion loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Wavelength |
nm |
1310,1550 |
1310,1550 |
1310,1550 |
1310,1550 |
Interchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
Operating temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
Storage temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
Cable diameter |
mm |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
