FM SKU#:SKU00054JR
Model#:SM-6F-WP-FM
MFG PART#:

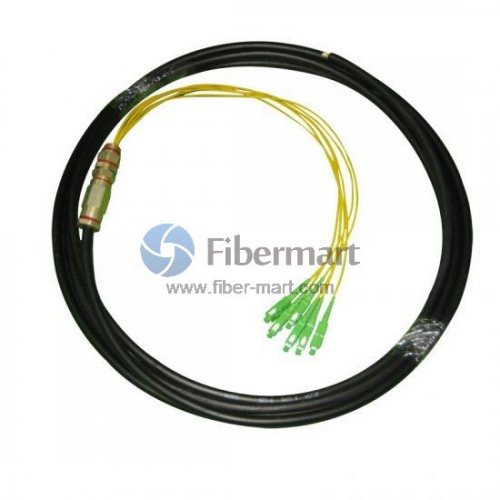

6-Fiber Single-mode 9/125 FC/SC/ST/LC Waterproof Fiber Pigtail
Fiber optic waterproof pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Key Features
-
Good reliability and stability
-
Excellent water-resistance performance
-
Waterproof, rigid and anti-corrosive copper connector
-
Simple installation
Applications
-
Optic fiber communications systems
-
Optical CATV & LAN
-
Telecommunication networks
-
Optical communication networks
-
Connecting with backbone optical cable and RX
Specifications
|
Parameter |
UPC,SM |
APC, SM |
|
Return Loss(dB) |
≥50 |
≥60 |
|
Insertion loss(dB) |
≤0.3 |
≤0.3 |
|
Repeatability 1000 times(dB) |
≤0.2 |
|
Exchange(dB) |
≤0.2 |
|
Working Temperature(℃) |
-40 to +80 |
|
Fiber Cores |
2, 4, 6, 8 and 12 cores optional |
|
Applicable connector |
FC, SC, ST, LC |
Custom Information
Fiber-Mart offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
