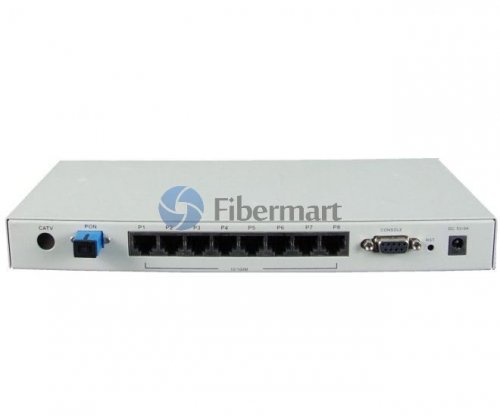

FM-E028U EPON ONU avec port 1-PON et 8 ports 10 / 100M

SKU: #8980
P/N: FM-E028U
US$85.58



Order Today, Ship before 04/02/2024, from U.S. or HK
  • La description
  • Fiche données
  • Tags

FM SKU#:SKU50207S
Model#:FM-E028U
MFG PART#:FM-E028U

FM-E028U type ONU products fully comply with IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

Product features:
Conform to IEEE802.3ah standard and meet CTC V2.1 technical requirements
Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
Support frame filtering and suppression
Support standard 802.1Q Vlan function, support VLAN conversion
Support 4094 VLANs (802.1Q)
Support Dynamic Bandwidth Allocation (DBA) function
Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
Single ONU supports up to 8 LLID.
Support IGMP Snooping
Support Ethernet port ratelimit loop detection
Support power failure alarm
Support lightning protection for power supply and lightning protection for service port
CATV radio frequency feature (optional)
Output level 85dBuv (input-6dbm)
AGC working range 10dB CNR ≥46dB@-6dBm (input)
Port features:
1 PON ports (1.25G)8 10/100M port
Physical features:
Physical dimension: 259*119*30 (L×W×H, unit: mm)
Power supply: 5VDC Power consumption: 7W
Temperature:
Working temperature: -10℃~+55℃;
Storage temperature: -30℃~+60℃;
Relative humidity: 10℃~+90℃(non-condensing)




Datasheet to Download
