Hot-swappable Fan Module, Front-to-Back Airflow Through the S5850-48S6Q, S5850-48S2Q4C and S8050-20Q4C Switches Chassises

Hot-swappable Fan Module, Front-to-Back Airflow Through the S5850-48S6Q, S5850-48S2Q4C and S8050-20Q4C Switches Chassises

The cooling system in a S5850-48S6Q, S5850-48S2Q4C and S8050-20Q4C switches each consists of four fan modules and a single fan in each power supply and provide front-to-back (air exhausts through the back of the switch) airflow depending on the fan modules and power supplies installed in the switch. Fan modules for the S5850-48S6Q, S5850-48S2Q4C and S8050-20Q4C switches are hot-insertable and hot-removable field-replaceable units, you can remove and replace the module without interrupting normal switch operation.

Installation of Fan Module

Installation of Fan Module

Undo the fastening screws on the left and right sides of fan module with a cross-head screwdriver Hold the handle of fan module, and gently pull out the fan module Insert a new fan module x it with a little force. The fan module will be rmly inserted into the backplane of the switch and integrated with it closely Tighten the fastening screws on both sides of fan module with a screwdriver to x the fan moduleNote:The fan module of Fiber-MART.COM S5850-48S6Q, S5850-48S2Q4C and S8050-20Q4C switches support hot plug function, it is convenient for maintenance and replacement online.The fan module provides cooling function for the switch. If you need to replace a failed fan module, it is recommended to complete the operating within three minutes (Prevent the temperature inside the switch is too high).

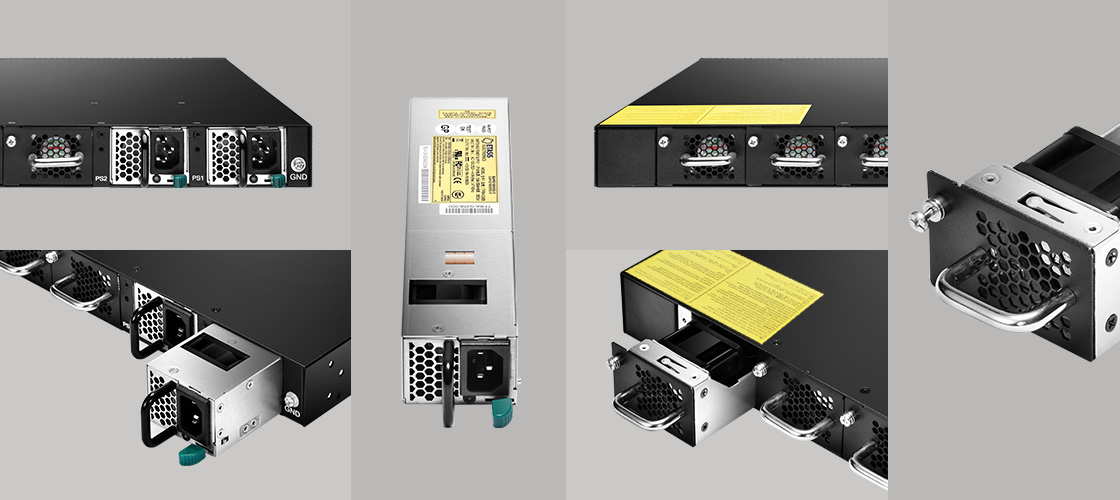

Hot-insertable and hot-removable field-replaceable unit
