12 Fibers Single-mode Tight Buffered Glass Yarn Indoor Outdoor Cable

製品アイテム: #1261
P/N: sku1261
US$0.74

選択して下さい:





Order Today, Ship before 07/06/2022, from U.S. or HK
  • 説明
  • データシート
  • その他の備考
  • 商品タグ

FM SKU#:SKU00733E2
Model#:IOBF-12B1.1
MFG PART#:

Indoor/Outdoor Tight-Buffered Cables are specified for campus network cabling between buildings where inter-building lengths are short enough. So that the installer can recognize savings from the lower costs of terminating tight-buffered cables.

LSZH (LSZH, Low smoke, Zero halogen, Flame-retardant)) material jacket, good fame retardant performance. Tight-buffered cable design typically offers a smaller package and more flexible cable. The glass yarn improves the cable strength. With a plenum rating, this cable can be used in all environments: plenum, riser, general inside plant, outside plant.

Item Details

  • Fiber Count: 12 Fibers

  • Fiber Type: Single-mode G.652B

  • Outer Jacket: LSZH

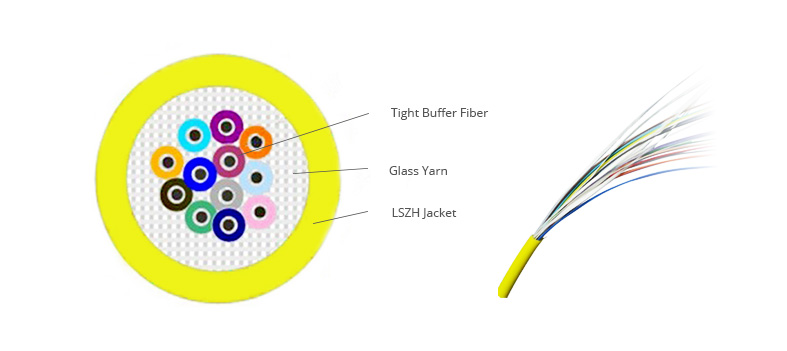

Cable Structure

Features
  • Streamlined installation with direct outdoor-to-indoor cable transitions.
  • Low Smoke Zero Halogen available, good fame retardant performance.
  • Low shrinkage and high tensile strength.
  • High density, easy installation in transitional aerial and duct applications.
  • Enhances system performance by avoiding additional splice point attenuation.
  • Lower costs of terminating tight-buffered cables.
  • Small diameter, light weight and friendly installation.
  Application
  • Outside plant, inter-building installations
  • Aerial, duct applications and entrance facilities
  • Local area networks
  • Private networks

Package

Package 1 Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX


Cable production throughout the chart

Fiber-Mart



Cable Count Outside
Diameter
Tight buffer
fiber OD
Cable Weight
(kg/km)
Tensile Load
(N)
Bend Radius
(mm)
Storage
Temperature
  (mm) (mm) short term long term short term long term short term long term (℃)
4 6.3±0.2 0.9 55 1000 2000 1000 20D 10D -40~+60
6 6.3±0.2 0.9 55 1000 2000 1000 20D 10D -40~+60
8 6.3±0.2 0.9 55 1000 2000 1000 20D 10D -40~+60
12 6.3±0.2 0.9 55 1000 2000 1000 20D 10D -40~+60
24 6.7±0.2 0.9 70 1000 2000 1000 20D 10D -40~+60


  G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)
@850nm   ≤3.0 ≤3.0
@1300nm   ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm   ≥600 ≥200
@1300nm   ≥1200 ≥600
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


Datasheet to Download
