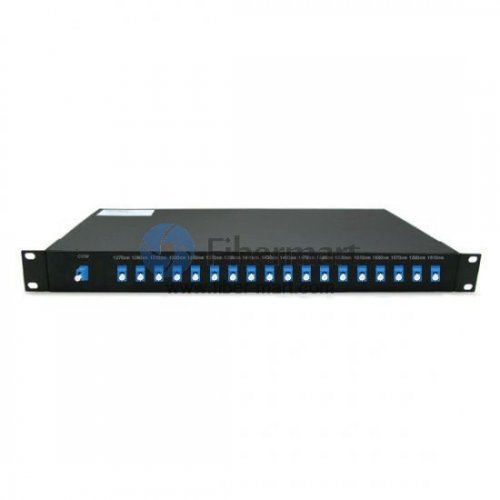

18 channels, 1RU Rack Mount, Simplex Uni-directional, CWDM Mux

18 channels,  1RU Rack Mount, Simplex Uni-directional, CWDM Mux

Press Esc key to close this popup
  • 18 channels,  1RU Rack Mount, Simplex Uni-directional, CWDM Mux

18 channels, 1RU Rack Mount, Simplex Uni-directional, CWDM Mux

製品アイテム: #1547
モデル: sku1547

選択して下さい:



Special Port









価格: US$432.00
カートに入れる:

  • 説明
  • オーダーサポート
  • その他の備考
  • 商品タグ:
FM SKU#:SKU00429I
Model#:18MS-1RU-FMCWDM
MFG PART#:

Simplex CWDM MUX

Multiplexer (MUX) work with demultiplexer (DEMUX) on the other side for single directional data transmission over one fiber.

Fiber-Mart CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
Fiber-Mart provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

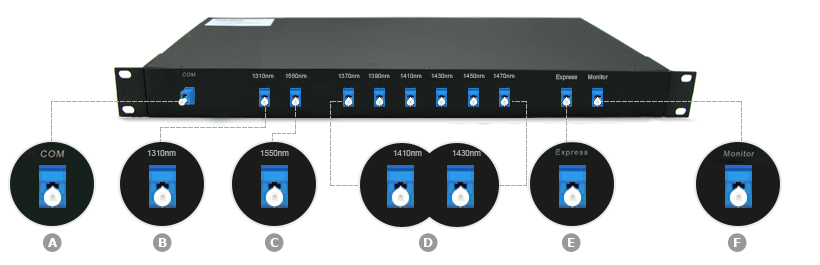

Front Panel Details


a
Common port:
  • LC, SC, ST and FC connectors available.
b
Standard port 1310nm:
  • Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
  • LC, SC, ST and FC connectors available.
c
Standard port 1550nm:
  • Allows a legacy 1550nm signal to pass. That is to say, it can carry ER optics, ZR optics, LX optics, ZX optics etc.
  • LC, SC, ST and FC connectors available.
d
Mux/Demux port for specific wavelengths:
  • LC, SC, ST and FC connectors available.
  • Compliant with the ITU G.657A1 standard as default.
e
Express port:
  • Enables the cascading of two CWDM mux/demux modules, doubling the channel capacity on the common fiber link.
  • Channel Isolation is 15dB as default, 16dB ~40dB available on request.
  • LC, SC, ST and FC connectors available.
f
Monitor port:
  • Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs.
  • When finished monitoring, disconnect the instruments and the network is left undisturbed.
  • LC, SC, ST and FC connectors available.
  • Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.


NOTE:
  • Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
  • We provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at [email protected]
  • When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
  • When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

  • Item Details

  • 18 channels CWDM mux in one 1U Rack
  • Com port is simplex
  • 1U 19 inch Rack Mount Housing
  • It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
  • Front panel is equipped with adapters according to customer choice (see options)
  • Passive, no electric power required. (MTBF ca. 500 years)
  • Low insertion loss
  • Simple to install, requires no configuration or maintenance
  • ISO 9001 manufacturing facility

  • Mechanical Details for Housing




    Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
