S5800-48F4S 48-Port Gigabit SFP L2/L3/MPLS Switch with 4 10Gb SFP+ Uplinks

SKU: #16644
Modèle : S5800-48F4S-FM

Prix: US$1,699.00
Ajouter au Panier :

  • La description
  • Support de commande
  • Autres remarques
  • Tags:

S5800-48F4S (48*1Gb+4*10Gb) 48-Port Managed SFP Fiber Gigabit Data Center Switch with 4 10Gb SFP+ Uplinks



S5800-48F4S is an availability, high-compatibility and network-scaling applications of data center as a carrier Access switch. It has 48-port 1Gb SFP and 4-port 10Gb SFP+ in a compact 1RU form factor and it's a low latency L2/L3 Ethernet switch. The S5800-48F4S comes with the complete system software with comprehensive protocols and applications to facilitate the rapid service deployment and management for both traditional L2/L3/MPLS networks. With support for advanced features, including MLAG, IPv4/IPv6, SFLOW, SNMP etc, this switch is ideal for traditional or fully virtualized data center.
The S5800-48F4S hardware provides high-availability features, including Hot-swappable redundant fans and using high quality electronic components. It provides high port density with 48Gb fixed port and adopts flexible modular design to support maximum 4x10Gb uplink.



Switch Class Layer2/3 Switching Capacity 176Gbps
CPU Cavium CN5010-500BG564-CP-G/500MHz Non-blocking Bandwidth 88Gbps
Latency 2.3us Throughput 130.95Mpps
Jumbo Frames 9600 Bytes Typical/Max Power Draw 75W
MLAG Support Hot-swappable Power Supplies 2 (1+1 redundancy)
Hot-swappable Fans 4 (N+1 redundancy) Warranty 5 Years



Quality CertificationQuality and standards are the foundation of Fiber-MART.COM. We are dedicated to providing customers with the outstanding, standards-compliant products and services.Fiber-MART.COM has passed many quality system verification, like ISO9001, ETL, CE, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

  • This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
  • This product fully accords with the ETL to indicate conformity with relevant industry standards for any electrical or mechanical product. Please contact us to learn more.
  • This product was produced under the requirements of CE to indicate conformity with the essential health and safety. Please contact us to learn more.
  • This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
  •

Product Highlights

How to Configure MLAG (Multi-Chassis Link Aggregation)




Data Center Grade Hardware Design

Hot-swappable Redundant fans and power supplies High quality electronic components Low power consumption



Reliability Design

Support VRRP Support MLAG and VARP Support Smart Link and Monitor Link



Metro Ethernet Network Features

Support QinQ and Vlan Translation Support MPLS/VPLS/VPWS/L2VPN Support G.8031/G.8032 Support 802.1ag (CFM) and 802.3ah (EFM)



Networking OS Preloaded

L2/L3 Metro Ethernet Data Center Network IEEE, IETF and MEF



Supported Optical Transceivers and Cables

100M SFP 1G SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP, 1GBASE-T 10G SFP+, 10G BIDI SFP+, 10G CWDM SFP+, 10G DWDM SFP+ 10GBASE-T 10G DAC 10G AOC

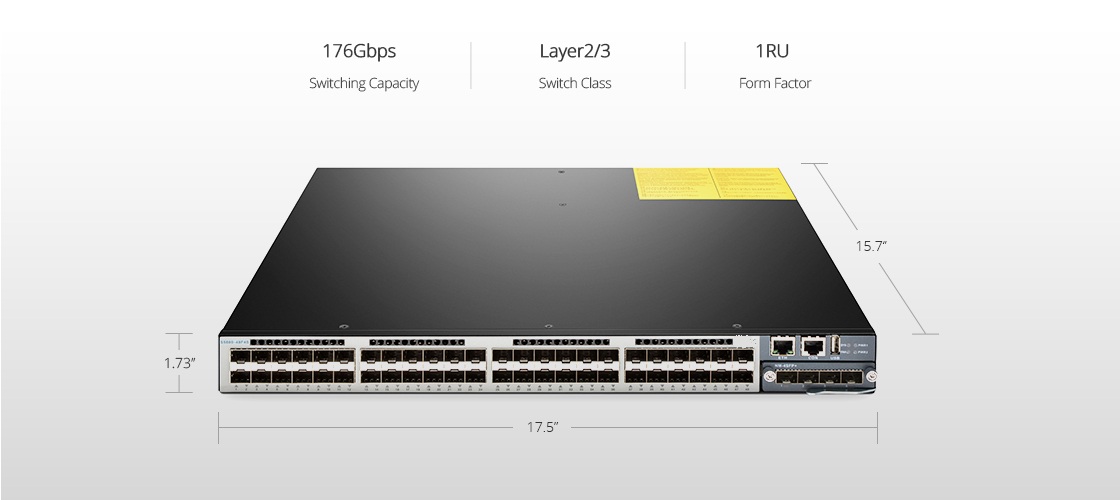

1Gb Access Layer Switch

S5800-48F4S has 48-port 1Gb SFP and 4-port 10Gb SFP+ in a compact 1RU form factor and it's a low latency L2/L3 Ethernet switch.

10G Switches 1Gb Access Layer Switch

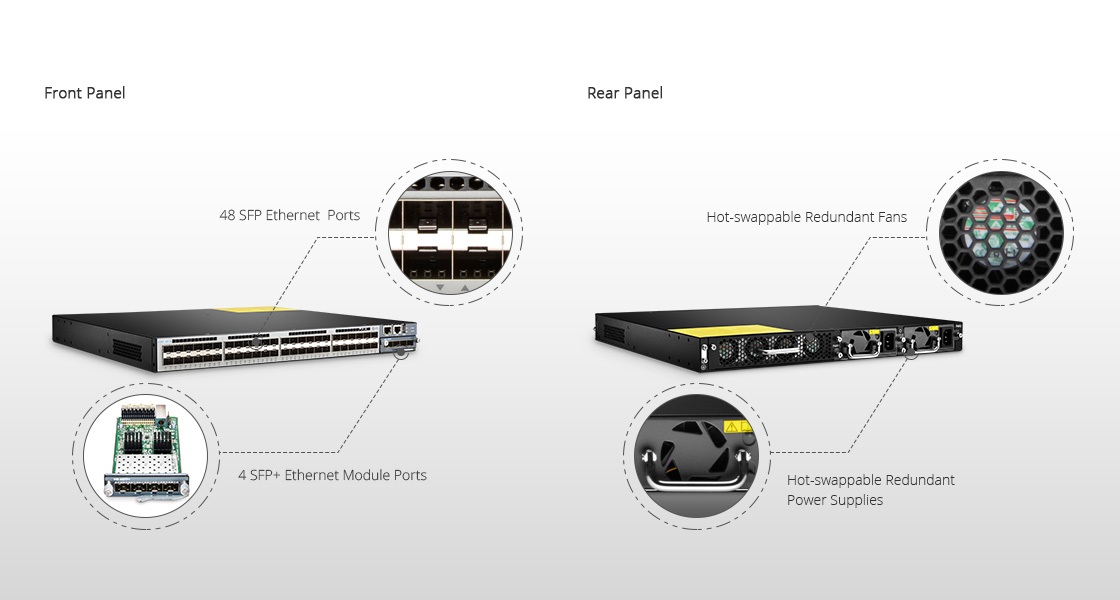

Front and Rear Panel Overview

10G Switches Front and Rear Panel Overview


Flexible Hardware Design

  • Hot-swappable Power Supplies
  • Hot-swappable Fans
  • Low Power Consumption

10G Switches Flexible Hardware Design


High Compatibility Ethernet Switches

Fiber-MART.COM S5800/S5850/S8050 series are high compatibility Ethernet switch which can work with Broadcom, Cisco, Juniper, Arista switches, as well as other brands of switches.

10G Switches High Compatibility Ethernet Switches


Networking OS

Fiber-MART.COM software provides common user interface and available command set to manage our Ethernet switches.

10G Switches Networking OS


Accessories List10G Switches Accessories List
