48-Port Gigabit PoE+ Managed Switch with 4 SFP+, 600W
48-Port Gigabit PoE+ Managed Network Switch with 4 SFP+, 600W
S1600-48T4S managed PoE+ Ethernet switch comes with 48x10/100/1000Base-T RJ45 Ethernet ports, 1x console port, 4x 10G SFP+ slots. It offers enterprise-class features, High-performance of both hardware and software , stable and reliable rapid spanning Tree Protocol (RSTP), free configuration, Strong network security, Convenient management and maintenance. The switch can automatically identify the connected devices whether compatible with IEEE 802.3af or IEEE 802.3at standards, and then supply power for them. The PoE switch makes it easier to deploy wireless access point (AP) and IP-based terminal network equipment with PoE technology. Fiber-MART.COM PoE+ Gigabit Ethernet switch comes with a 4-years limited warranty, including any quality problems during the free maintenance.
Quality and standards are the foundation of Fiber-MART.COM. We are dedicated to providing customers with the outstanding, standards-compliant products and services.Fiber-MART.COM has passed many quality system verification, like ISO9001, CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
How to Connect PoE Switch
PoE Support Features
Power over Ethernet Plus (PoE+) support with up to 600W of PoE budget Dual-mode PoE standard, compliant with both IEEE802.3af and IEEE802.3at Support PoE intelligent management system, timing of PoE power supply, power online configuration, voltage and current online monitoring etc. 25% redundant power peak, can fully allocate IEEE802.3af PD devices, and half allocate the IEEE802.3at PD devices IEEE802.3az Energy Efficient Ethernet, can automatically adjust energy consumption according to the ports' actual flow, dynamically sense idle periods between traffic bursts and quickly switch the interfaces into a low power idle mode, save 30% power dissipation
Layer 2+ Switching Features
Support O-ring, the failover time <50ms Support stable and reliable rapid spanning Tree Protocol (RSTP), which achieved real ring loop redundancy protection Support Port-based VLAN, IEEE 802.1Q VLAN and GVRP, simplify the network planning Support QinQ, extends the vlan up to 4094*4094 Support Link Aggregation Control Protocol (LACP) IEEE 802.3ad IGMP v1/v2 snooping, IGMP limits bandwidth-intensive multicast traffic to only the requesters
Support dynamic or static binding by users’ definition, such as IP , MAC, VLAN, PORT, etc. Support TACACS+, SNMP v3, HTTPS and SSH, ensures all users are authorized before being granted access to the network Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain, for reducing network risk Support storm control, to prevent traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port Threat Defense features including Port Security, Dynamic ARP Inspection, and IP Source Guard Access Control Lists (ACLs) restrict access to sensitive network resources by denying packets based on source and destination MAC addresses, IP addresses, and TCP/UDP ports Apply security communication technology design, the HD surveillance video has traffic priority Adapt to harsh outdoor environments, 5KV ethernet ports surge protection, 6KV power ports surge protection, overcurrent fusing protection
Enterprise Level Management Features
Support various advanced management, such as WEB, CLI, TELNET, SNMP Support SNMP v1/v2c/v3 which aims at diffrent levels of network management RMON enhances the network monitoring and forecasting ability to ensure the network stability. Support BWM, convenient for online debugging. Support port mirroring Support Fiber-MART.COM switch intelligent management platform-FS-NMS
Enhanced Quality of Service
Up to eight egress queues per port and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic Strict priority and weighted round-robin (WRR) Flow-based rate limiting and up to 256 aggregate or individual policers per port 802.1p class of service (CoS) and Differentiated Services Code Point (DSCP) classification
Hardware Configuration Features
PoE uses top-rated imported Microsemi chip, intelligentized power supply management, constant voltage and current power supply, safe and reliable Communication uses high-end imported VITESSE chip, high reliability, high throughput, low latency, excellent traffic control strategy PCB applys immersion gold technique, lower the fraction defective, provides signal reliability and anti-oxidative capacity, extend the service life of circuit Most advanced lead-free SMT, welding and assembly procedure, safe and environmental, strong heat-resisting ability, improve the seismic capability of devices High quality tantalum capacitor features long service life, heat-resisting, high accuracy, non-flammable, excellent frequency etc. Effective fully loaded switching power supply, Input 100-240VAC, 50-60Hz, overcurrent protection (blown fuses), 6V surge protection, up to 25% power margin Galvanized steel metal housing, IP30 protection grade, stronger corrosion and rust prevention, anti-interference Ethernet ports use 3μm gold plating technique, abrasion resistant, anti-oxidant, easily conductive, reduce Internet lag, improve the user experiences
Build a Powerful, Easy-to-Use Basic Business Network
Small and medium-sized businesses can get cost-effective networking solutions without sacrificing enhanced usability and strong performance because of the integrated L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and Static Routing.
Cost-effective & Efficient PoE+ Solution for SMB
S1600-48T4S has 48x 10/100/1000Base-T RJ45 Ethernet ports and 4x 10G SFP+ slots in a compact 1RU form factor, provide an affordable solution for businesses of all sizes that require simple network management
Superior Hardware Design
S1600-48T4S Gigabit Ethernet PoE+ Switch with an enterprise-grade high-quality hardware design ensures stability and longevity for PoE+ Series on your networks.

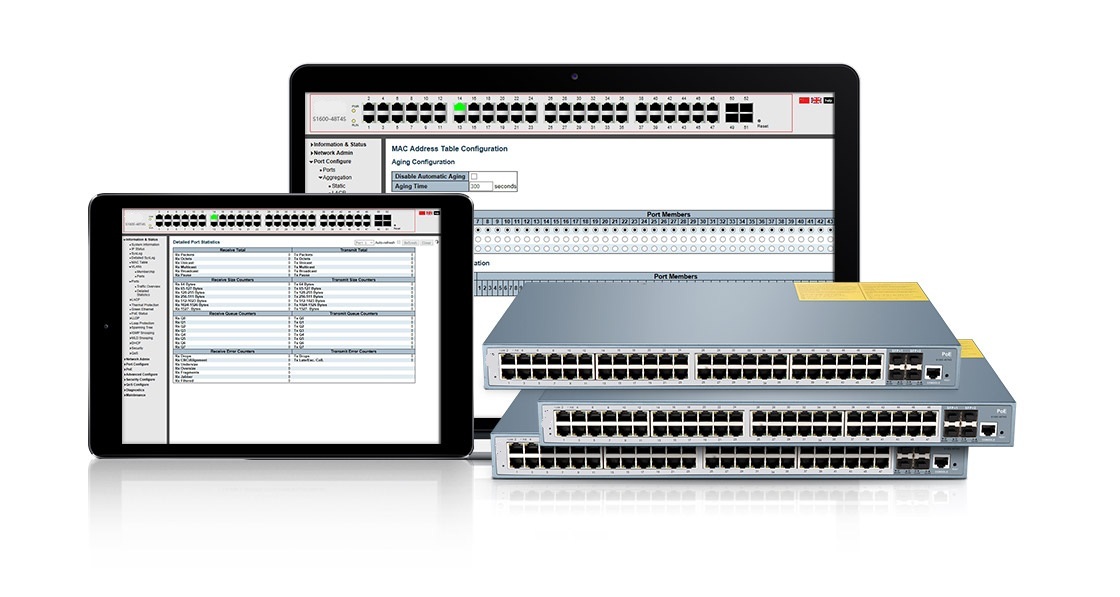

Easy-to-Use Web Management
Fiber-MART.COM software provides the common and easy-to-use web browser-based management GUI, available command set to manage our PoE+ Ethernet switches.
Before you start installing the switch, make sure you get all the contents of the package.
