Одномодовые двухмодовые дуплексные LC/SC/FC/ST кабельные сборки 1M

FM SKU#:SKU30204T
MFG PART#:

1m Harsh Environment Singlemode Duplex LC/SC/FC/ST Cable Assemblies (MOQ:1KM)

Harsh Environment Duplex LC/SC/FC/ST Cable Assemblies are perfect for Industrial networks and harsh environments where protection from moisture, chemicals, corrosive gases and liquids is essential. These rugged Singlemode assemblies feature robust outdoor rated cable, which stands up to hostile environments. Each assembly is 100% functionally tested and is covered by a 1-year manufacturer warranty. Accessories sold separately include a bulkhead style adapter where one side is designed for standard LC/SC/FC/ST fiber cable connections and the other will accept the industrial LC/SC/FC/ST connector. Additionally, caps for both the bulkhead adapter and plugs are available. Contact us today with your custom cable requirements.

NOTE:This price on the website is for 1M length,please feel free to enquiry us for the other length standard

Characteristics

• Used to connect communications equipment that utilize ST, SC or LC OM1 62.5/125 Multimode fiber interfaces
• Cable meets Military requirements for crush and impact resistance & rugged Polyurethane jacket protects against cuts, abrasions and chemicals
• Impact Resistance: EIA/TIA-455-25, (Military Req.) Crush Resistance: EIA/TIA-455-41, (Military Req.)
• Multiple off the shelf lengths provide design flexibility and Fiber-Mart's Custom Cable Configurator can be used to create your own lengths and/or connector combinations
• The connector are stainless steel bodies which resist rust and corrosion

Applications

• Military networks
• Industrial Ethernet
• Harsh environment applications
• Combat vehicles

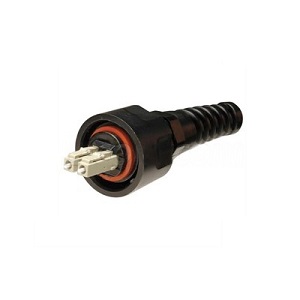

Sample Picture

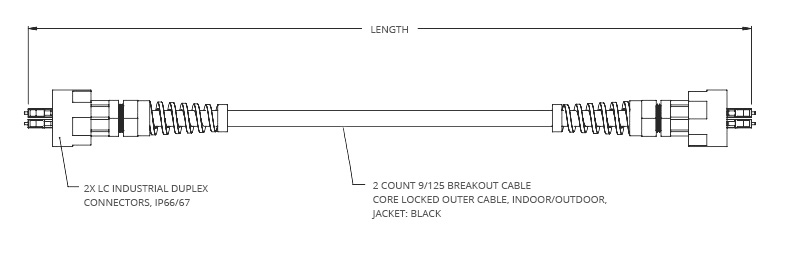

Mechanical Drawing

Specifications
