24 Волокна Многомодовый одиночный куртка Non-Metal Member Водонепроницаемый диэлектрический прочный кабель Наружный кабель - GYFTY

FM SKU#:SKU00049E2
Model#:GYFTY-24A1b
MFG PART#:

Non-Metal strength member is the dielectric structure, and the FRP(FIBER REINFORCED PLASTIC) has the light weight property. So it is suitable for operating in electrical system or frequently lighting areas. The cable is completed with a single polyethylene (PE) sheath, aerial and duct installation are acceptable.

The FRP as the central member enforce the tensile strength of the cable,and ensures the resistance to electromagnetic interference. High strength loose tube is hydrolysis resistant and the tube filling compound ensures a critical protection of the fiber. The water-blocking material between the out jacket and the loose tube is applied to keep the cable compact and watertight.

Item Details

• Fiber Count : 24 Fibers


• Fiber Type: 62.5/125μm Multimode


• Strength Member: Non-metal


• Outer Sheath: PE (Default)

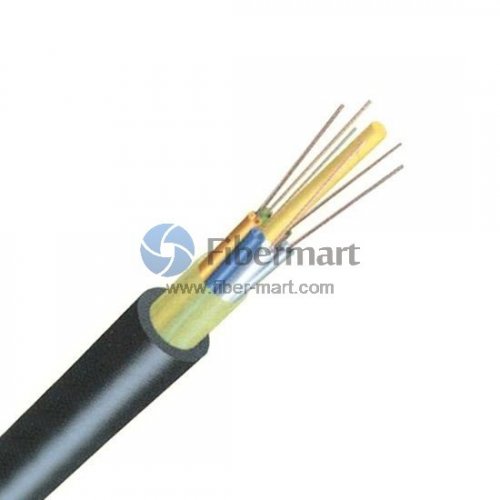

Cable Structure

Features Light weight, small diameter, easy to lay. Excellent mechanical and temperature performance. Low dispersion and attenuation. Special filling get filled loose tubes provide perfect optical fiber protection. Non-metal central strength has a excellent anti-electromagnetic ability. Water blocking system provide reliable performance of moisture-proof and water block. The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.		Application Laying modes: Aerial & Duct Electromagnetic interfering places Outdoor distribution Access network and local network

Package

Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart
