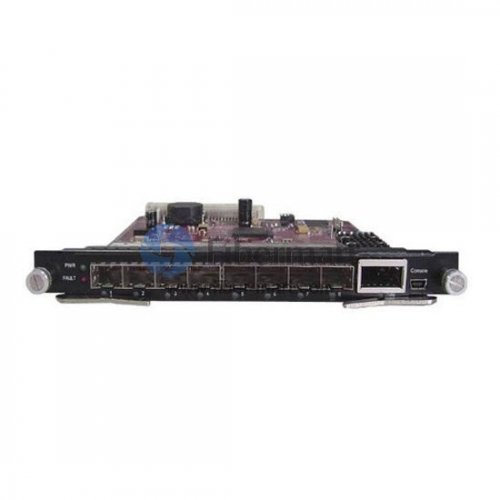

Wavelength Conversion of 8 Ports 1.25G Data to 1 Port 10G Data Optical Muxponder Service Card

FM-P-OTP800-TMUX(10G) is a kind of Muxponder service card developed by Fiber-Mart. It can transparently gather 8*1.25G data to 1*10G data, which can tremendously save room for DWDM modules and fiber resources, strengthen stability, as well as save cost.

Key Features

It provides 8 standard SFP slots and 1 XFP slot

8 GE ports at the client side are isolated from each other

It supports statistics on error packet of each port

It supports loopback setting of the client side and the line side

It supports SNMP network management

It adopts time-division multiplexing technology

GE port sources are available for option

Front Panel Appearance

Valid Slots

The FM-OEO800-MUX(10G) board occupies one slot.
Valid Slots in the Sub-racks
a. In the FM-P-OTP800-2S rack mount, there is no slot designed for SC control board.
b. In the FM-P-OTP800-4S rack mount, the valid slot of the board is SLOT1 only.
c. In the FM-P-OTP800-11S rack mount, the valid slot of the board is SLOT1 only.

Application

MUX (10G) achieves multiplexing of eight Gigabit Ethernet service to a 10G link, thereby reduces wavelength requirements of the WDM system. There are 8 pluggable SFP ports at the client side and1 pluggable XFP port at the line side.

Working Principle and Signal Flow

Datasheet to Download
