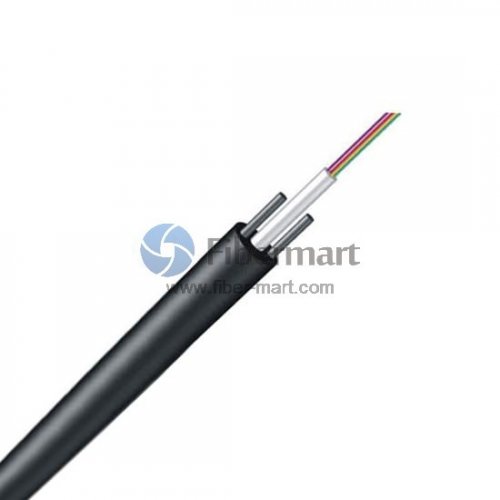

Single Jacket Loose Tube Steel-wire Strength Member Outdoor Cable -GYXTY
These central loose tube optical fiber cables with a single jacket are suitable for installation in aerial for communication between bureaus, trunk power transmission, access network. It has the light weight for easy installation in aerial.
Loose tube filled with special grease, providing key protection for the fiber and ensures good water blocking resistance. Two entrained parallel steel wires to ensure tensile strength, anti-tension. The cable is completed with a single medium density polyethylene (PE) sheath.
Cable Structure
 |
Features
Good mechanical and temperature resistant performance. Low dispersion and attenuation. The centrally-situated loose tube minimizes the influence of lateral crush. Small cable diameter, light weight, compact tight bending performance Two parallel steel wires ensure tensile strength. PE sheath have good ultraviolet radiation resistance
| | Application
Laying modes: Aerial Bureaus network Trunk power transmission Access network
|
Package
 |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath
Diameter | Weight | Minimum Allowable Tensile Strength
(N) | Minimum Allowable Crush Load
（N/100mm) | Minimum Bending Radius
(MM) | Storage
Temperature |
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 2 | 7.5 | 80.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 4 | 7.5 | 80.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 6 | 7.5 | 80.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 8 | 7.5 | 80.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 10 | 7.5 | 80.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 12 | 7.5 | 80.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| G.652 | 50/125µm | 62.5/125µm |
Attenuation
(+20°C) (dB/km) | @850nm | | ≤3.0 | ≤3.0 |
| @1300nm | | ≤1.0 | ≤1.0 |
| @1310nm | ≤0.36 | | |
| @1550nm | ≤0.22 | | |
| Bandwidth (Class A) (MHz·km) | @850nm | | ≥600 | ≥200 |
| @1300nm | | ≥1200 | ≥600 |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | | |
