Custom Corning Fiber Duplex Round Cable

MFG PART#:

Corning Fiber Duplex Round Cable

This duplex round cable is suitable for patch cord making. And this a kind of indoor cable, could be used in the interconnection of fiber optic equipment.

The two fibers are coated with 250µm soft plastic, and then covered with a 900µm tight buffer thick layer of hard plastic separately, which add some fiber protection. Then the two 900µm tight buffer fibers are surrounded together by Kevlar yarn, and wrapped by outer jacket.
The Kevlar yarn material ensure a good performance of tensile strength. And the Flame retardant outer jacket could be used in Riser, LSZH or Plenum environment. The default cable diameter is 3.2mm, and 3.2mm~5.0mm could be customized.

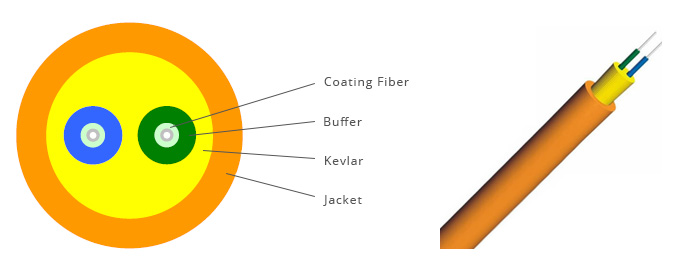

Cable Structure

Features Good mechanical and environmental characteristics The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards Kevlar yarn material ensure a good performance of tensile strength 900µm tight buffer protect the fiber well		Application Used in patch cords and pigtails Interconnection of fiber optic equipment

Package

Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart
