Tutorial de cables de conexión de fibra óptica

¿Qué es el cable de conexión de fibra óptica?



El cable de conexión de fibra óptica es un cable de fibra óptica terminado con conectores de fibra óptica en ambos extremos. Se utiliza para vincular equipos y componentes en una red de fibra óptica, también conocida como puente de fibra óptica, cable de conexión de fibra óptica, cable de conexión de fibra óptica, etc. Hay muchos tipos de cables de conexión de fibra óptica con diferentes tipos de conectores, como LC , FC, SC, ST, MU, MTRJ y E2000, etc.


Tipos de cable de conexión de fibra óptica



Hay varios tipos de cables de conexión de fibra óptica y se pueden clasificar principalmente por los tipos de conectores y cables.

Cables de conexión de fibra óptica con diferentes tipos de conectores



Los cables de conexión de fibra óptica se pueden clasificar según los tipos de conector de fibra óptica. Por ejemplo, el cable de conexión LC se denomina tal como está con los conectores LC. Del mismo modo, hay cables de conexión SC, ST, FC, MT-RJ, E2000, MU y MPO/MTP, etc. Además, existen latiguillos de fibra tipo PC, UPC, APC, que se diferencian de los tipos pulidos. Haga clic aquí para obtener más detalles: Tutorial del conector de fibra óptica
Cable de conexión LC
LC Patch Cable

LC Patch Cable: LC patch cable is terminated with LC connectors. LC is the short form of Lucent Connector. LC connector is a push and latch structure, with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber optic patch cable which reduce the space and it is widely used for densely installation. The LC patch cables use a 1.25 mm ferrule, half the size of the ST patch cable. It has good performance and is highly favored for single mode patch cord. LC patch cables comply with IEC, Telcordia, ANSI/EIA/TIA .The connector of LC patch cable is used on 1.6mm/2.0mm as well as 3.0mm cable. There are LC/PC (for multimode), LC/UPC and LC/APC (for single mode) patch cables. An example of LC-LC Patch Cable is shown in the picture on the left.

SC Patch Cable

SC Patch Cable: SC patch cable is terminated with SC connector. The SC connector was invented by the Japanese company NTT. SC stands for Subscriber Connector or Square Connector or Standard Connector. It is extremely common in datacom and telecom fiber optic market. It has a push and pull type and can be used for 1000 mating cycles. SC patch cable is with a locking tab on the cable termination and provides for accurate alignment through their ceramic ferrules. It has an advantage in keyed duplexibility to support sending and receiving channels. SC patch cable features low cost, simplicity as well as good durability. It is the most cheapest type, convenient to use and cost saving. SC patch cable is widely used in fiber optic networks and can be with zirconia sleeve and plastic housing. An example of SC-SC Patch Cable is shown in the picture on the left.

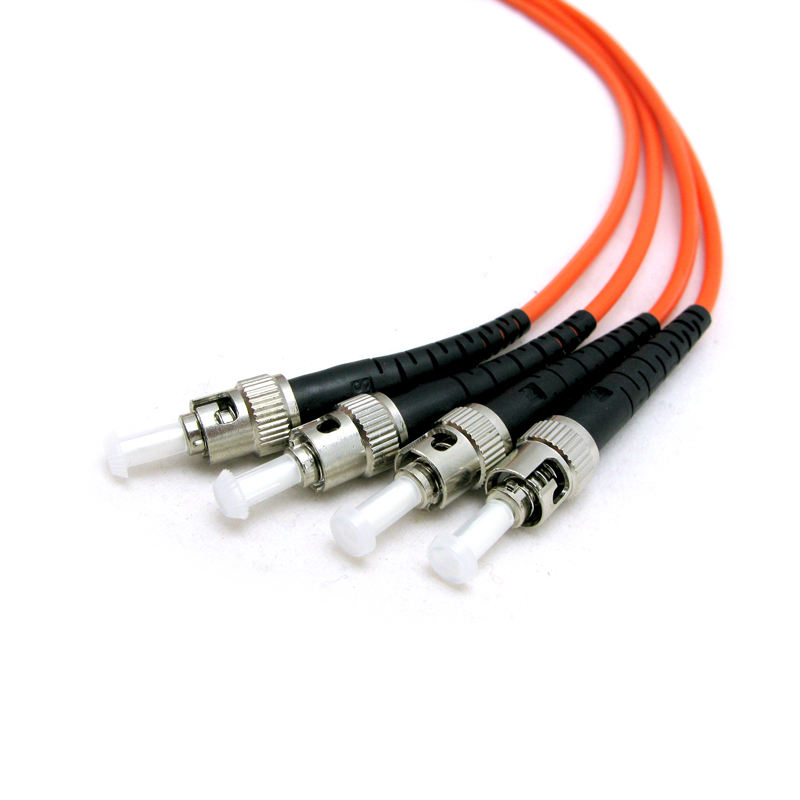

ST Patch Cable

ST Patch Cable: ST fiber optic patch cable is terminated with ST connector. ST stands for Straight-Tip and features a Bayonet twist locking mechanism. ST connector has 2.5mm diameter ferrule as in SC connector. It was developed by AT&T and was very popular in the 1980s and 1990s. ST connector has bayonet-style housing and a long spring-loaded ferrule hold the fiber. It is available in both multimode and single mode versions. Horizontally mounted simplex and duplex adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia split sleeve. Although there are plastic housing ST connectors, more and more people tend to use metal housing ST. ST fiber optic patch cable has straight tip type terminations and is easy to insert and remove. If you experience high light loss, try to reconnect it. It is rated for 500 mating cycles. ST fiber optic patch cable is one of the older generations, but it is still widely used for multimode networks, including LANs for buildings and campuses. ST-ST Patch Cable is shown in the picture on the left.

FC Patch Cable

FC Patch Cable: FC fiber optic patch cable is terminated with FC connector, a screw type connection. FC stands for Fixed Connector. Same as SC connector, FC is also invented by NTT. FC is with metal housing, screw structure. FC connector ferrule and sleeves used in FC adaptor are both same as SC ones. FC patch cable is available in both single mode and multimode versions. It is applied in high-vibration environment and can screw on firmly, but you need to have the key aligned in the slot properly before you tighten it. FC-FC Patch Cable is shown in the picture on the left.

MTRJ Fiber Optic Patch Cable

MTRJ Patch Cable: MTRJ patch cable is terminated with MT-RJ connector. MT-RJ stands for Mechanical Transfer Registered Jack. MTRJ connector is developed from MT and RJ connectors. It is with plastic housing and plastic ferrule and features two-fiber connection, that is to say, two fiberglass connection within one MTRJ fiber optic connector. MTRJ connectors use molded MT ferrules originated by NTT. Each MTRJ connector houses two fibers (duplex) and the footprint resembles copper RJ45 Ethernet connector. It is half the size of a SC connector and contributes to the price drop per fiber port on fiber-to-the-desktop solutions. MTRJ connectors come in male (with two metal pins) and female (no pins). MTRJ patch cable has female type and male type. The difference between them is that the male type is with two pins on each of the MTRJ connector. The MTRJ patch cable is commonly used for networking applications. Its size is slightly smaller than a standard phone jack and is easy to operate. MTRJ-MTRJ Patch Cable is shown in the picture on the left.

E2000 Fiber Optic Patch Cable

E2000 Patch Cable: E2000 patch cable is terminated with E2000 connector. E2000 connector has a spring-loaded shutter used to protect the ferrule from dust and scratches. It features a spring-loaded shutter which fully protects the ferrule from dust and scratches. The shutter closes automatically when the connector is disengaged, locking out impurities which could later lead to network failure, and locking in potentially harmful laser beams. When it is plugged into the adapter the shutter opens automatically. With similar structure of SC connector, E2000 connector is smaller. E2000 patch cable is one of the latest style yet one of the most expensive fiber patch cables. E2000-E2000 Patch Cable is shown in the picture on the left.

MU Fiber Optic Patch Cable

MU Patch Cable: MU patch cable is terminated with MU connector. MU connector is also the invention of NTT. It is with plastic housing and a push pull structure. MU connector is also a small form-factor connector which features a 1.25mm diameter ferrule as in LC connector. MU connector has the same push-pull locking mechanism as SC connector. MU fiber optic connector is similar size of LC and sometimes named small-SC. MU connectors are used in advanced optical transmission, exchange, and subscriber systems or high speed data application. MU patch cable is developed to replace SC in the future. MU-MU Patch Cable is shown in the picture on the left.

MPO/MTP Fiber Optic Patch Cable

MPO/MTP Patch Cable: MPO patch cable is terminated with MPO connector. The MPO is an high-density multi-fiber connector built around precision molded MT ferrule. It is a push-pull connector compliant IEC 61754-7 and TIA/EIA 604-5A and offers low cost per termination for high density applications. It is usually used in ribbon fiber optic patch cables or ribbon fan out multi fiber assemblies. MPO has multi fiberglass core inside each single connector, that is to say, there are several fiberglass connections in each single MPO patch cable, for example, 12 fiber, 24 fiber, 36 fiber, etc. MTP is upgrade version of MPO. MTP patch cable allows high-density connections between network equipment in telecommunication rooms. It uses a push-pull latching mechanism for easy and intuitive insertion and removal. MTP-MTP Patch Cable is shown in the picture on the left. Click Here For More Details: MPO/MTP Trunk Cables



Cables de conexión de fibra óptica con diferentes tipos de cables



Los cables de conexión de fibra óptica se pueden clasificar según diferentes parámetros de los cables de fibra óptica: según los materiales del cable, existen cables de conexión de PVC, Riser, Plenum, OFNR, OFNP, LSZH, etc. De acuerdo con los núcleos de fibra óptica, existen cables de conexión simplex y dúplex. El cable de conexión de fibra simple consta de una sola fibra, mientras que el cable de conexión de fibra dúplex consta de dos fibras. Según los modos de fibra óptica, existen cables de conexión monomodo y multimodo. Por lo general, los cables de conexión monomodo son amarillos con fibra de vidrio de 9/125 µm, mientras que los cables de conexión multimodo son de color naranja con fibra de vidrio OM1 de 62,5/125 µm u OM2 de 50/125 µm. Además, los cables de conexión multimodo también incluyen tipos OM3 y OM4. Haga clic aquí para obtener más detalles: Modo único VS. Cable de fibra multimodo

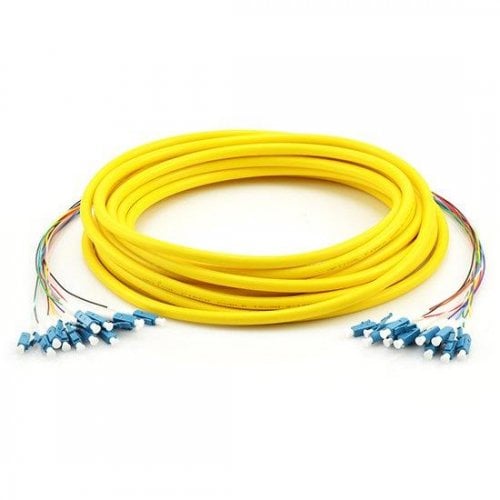

Además, hay cables de conexión multinúcleo y otros cables de conexión de fibra especiales, como cables de conexión VF-45, cables de bucle invertido de fibra, cables de conexión de fibra óptica de plástico, cables de conexión FTTH, cables de conexión de mantenimiento de polarización y cables de conexión de acondicionamiento de modo.

Soluciones de cable de conexión de fibra óptica de Fiber-Mart



Fiber-Mart proporciona todos los cables de conexión de fibra óptica mencionados anteriormente con productos en stock y servicio personalizado. Además, también ofrecemos latiguillos de fibra óptica, latiguillos de fibra trazadora, latiguillos de fibra enrollada y otros cables latiguillos de fibra óptica especiales.
