1 Kanal bidirektional HD-SDI Über LWL-Transmitter und Empfängerset

FM SKU#:SKU000180T
Model#:FM3011-T/R
MFG PART#:

1 Channel HD-SDI over SM Bidirectional optical fiber transmitter and receiver set with embedded audio FC 20km

HD SDI video signal can be transmitted through one single fiber with non-distortion, high-quality, long-distance transmission.
This series of video to fiber converter is with Stable performance, clear picture quality,and high Stability for LED Status Indication on the body of device.
The working status of devices can be visually observed.
At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by data RS485.This makes our devices more flexible when different customers’ request comes.

The FM3011 could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission.
And HD-SDI Bidirectional Fiber Optic Transmitter should be worked with HD-SDI Bidirectional Fiber Optic Receiver.

Features

• CRAFT: uncompressed technology
• VIDEO SPEC: 1080P 30 Hz
• Transmisson Distance:20km
• Fiber Type: Single-mode Simplex
• 1-channel unidirectional HD-SDI and 1-ch reversed RS485/RS232/RS422 data and 1-ch analog audio over one fiber
• Range from 19.4Mb/s to 1.485Gb/s
• SMPTE 292M (1.485Gb/s) clock recovery
• Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
• Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
• Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
• 150m automatic cable equalization, all the 1.485 Gb /s rate below(Belden 1694A)
• LED Status Indication to monitor the working conditions and critical parameters
• Optional network management system
• Support SFP transceiver hot-plugged
• Support stand-alone, 1U rack mount and 4U rack mount

Applications

• Remote OB Van/Truck Video Feeds
• Broadcast Studio Camera Feeds
• Long-haul Signal Transport
• TV station/video conference
• Lecture Hall Projector Connectivity
• Medical/Surgical Room Broadcast
• Building to ing video conference calling
• Small corporate campus video links

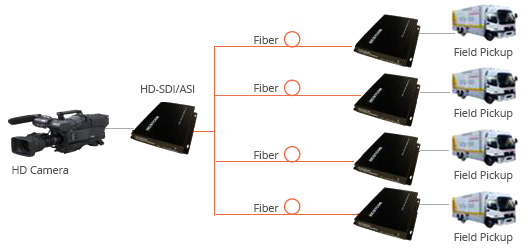

Product connection diagram

Description for HS-SDI Transmission:
1. Video Interface: High-Definition SDI Video Input (input for signal to be transferred)
2. Fiber-optic video transceiver mark:

T: fiber-optic transmitter
R: fiber-optic receiver
Power Indicator (ON for power-on; OFF for power-off)
TX: rns on upon receiving optical signal; turns off when no optical signal is received

3. SDI-DATA: Turns on when SDI signal is input; turns off when there is not.

485/232: Turns on when there is reverse data signal output, or turns off when there is not.

4. Data Interface: Reverse Data Output (for transmission of data sent to optical received)

Left: Positive Terminal of Data Output
Middle: Negative Terminal of Data Output
Right: Earth Terminal (unnecessary for RS485/232 double wires)

Dimension

Make to Order (Extend information)

Note:
1.Audio and date port : For Stand-alone equipment,it could be up to 4 channel,for 1 U Rack Mount packaging ,it available for 8 channel or more. Please contact us by email to [email protected] if you have any requirement for it.
2.Fiber Port: FC and ST is available,and for SC/LC connector,Fiber-Mart will provide you a corresponding patch cable for connector conversion for free.
3.1 U rack mount: The standard is with 4 slots,Fiber-Mart will offer you dam-board for free when some slots is empty.
4.SNMP: If the equipment is with SNMP function,the dimension will be changed and it will packaged by rack cassette.
