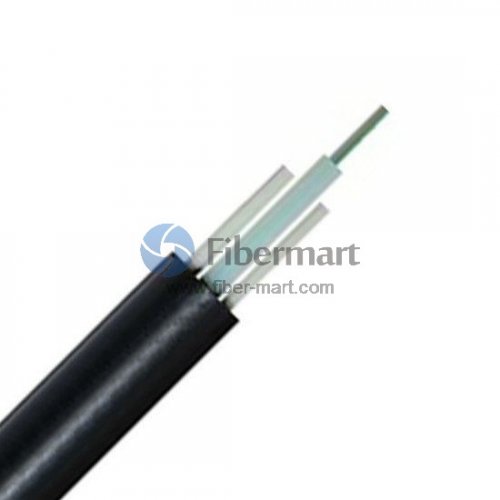

12 Fasern 62,5 / 125μm Multimode nicht metallisches Festigkeitselement Zentrales Losen Rohr LSZH FTTH Außenkabel

FM SKU#:SKU00526E2
Model#:FTCL-12A1bL
MFG PART#:

FTTH Non-metal Central Loose Tube Outdoor Cable can be used in outdoor distribution, trunk power transmission system, and more importantly, it is suitable for access network and local network in high electromagnetic interfering places.

The loose tube filled with grease provides special protection for the fiber. The filling compound has the water resistant performance. The two parallel FRP strength member has an excellent anti-electromagnet ability and improve the tensile strength. The cable is completed with the LSZH (LSZH, Low smoke, Zero halogen) material jacket, which has good flame retardant performance.

Item Details

• Fiber Count: 12 Fibers


• Fiber Type: 62.5/125μm Multimode


• Outer Sheath: LSZH

Cable Structure

Features Non-metal strength member ensures excellent anti- electromagnetic performance. Good fame retardant performance. Low shrinkage and high tensile strength. The loose-tube design isolates the fibers from outside environmental and mechanical stresses. Low Smoke Zero Halogen Available.		Application Trunk power transmission system Access network and local network High electromagnetic interfering places Outdoor distribution

Package

Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart
