FM SKU#:SKU00706E2
Model#:IOFC-4OM4
MFG PART#:

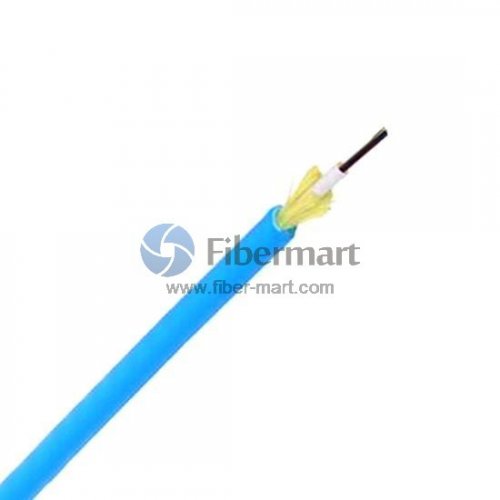

Indoor/Outdoor cables combine the flame resistance and safety features of an indoor riser or plenum cable with the durability that is critical for Outside Plant Cable. The result is a unique, dual-purpose cable that can save time and money by allowing OSP applications to flow seamlessly indoors, using a single cable and no splices.
LSZH (LSZH, Low smoke, Zero halogen) material Jacket, good fame retardant performance. The loose tube filled with grease provides special protection for the fiber. The loose tube is surrounded by the Aramid Yarn, which has the filling effect, high temperature resistance, low shrinkage and high tensile strength.
Item Details

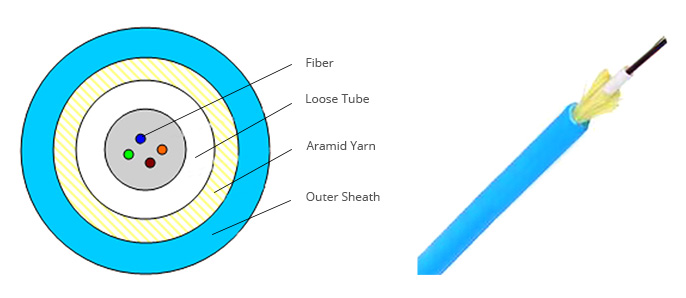

Fiber Count : 4 Fibers Fiber Type: OM4 50/125μm Multimode Outer Jacket: LSZH Cable Structure
.jpg) |
Features
Streamlined installation with direct outdoor-to-indoor cable transitions. Good fame retardant performance. Low shrinkage and high tensile strength. High density, easy installation in transitional aerial and duct applications. Enhances system performance by avoiding additional splice point attenuation. The loose-tube design isolates the fibers from outside environmental and mechanical stresses. Low Smoke Zero Halogen available.
| | Application
Outside plant, inter-building installations Aerial, duct applications and entrance facilities Local area networks Private networks
|
Package
 |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath
Diameter | Weight | Minimum Allowable Tensile Strength
(N) | Minimum Allowable Crush Load
（N/100mm) | Minimum Bending Radius
(MM) | Storage
Temperature |
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 2 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 4 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 6 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 8 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 10 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 12 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| G.652 | 50/125µm | 62.5/125µm |
Attenuation
(+20°C) (dB/km) | @850nm | | ≤3.0 | ≤3.0 |
| @1300nm | | ≤1.0 | ≤1.0 |
| @1310nm | ≤0.36 | | |
| @1550nm | ≤0.22 | | |
| Bandwidth (Class A) (MHz·km) | @850nm | | ≥600 | ≥200 |
| @1300nm | | ≥1200 | ≥600 |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | | |
