Custom Outdoor Cable- GYXTC8Y

MFG PART#:

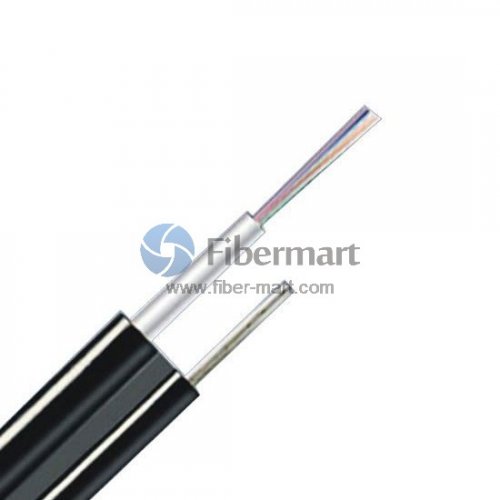

Single Jacket Central Loose Tube Steel-wire Strength Figure 8 Self-supporting Outdoor Cable - GYXTC8Y

GYXTC8Y is a light self-supporting cable with the figure 8 shape in the cross section, suitable for installation in aerial environment for long haul communications. High tensile strength of stranded wires meet the requirement of self-supporting. It can also be used for duct and buried method.

The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking.Metal strength member provides excellent strain performance. High strength loose tube that is hydrolysis resistant. GYXTC8Y is a very good figure-8 aerial fiber optic cable.

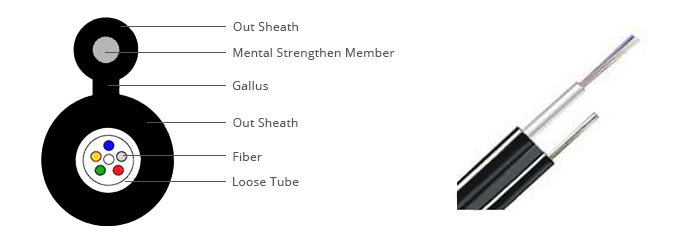

Cable Structure

Package

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart
