Schrank GPON OLT mit 4-PON-Ports

FM-G8604T ist für Chassis-OLT-Geräte konzipiert, die 4 Downlink-1000M-PON-Ports und 8 Uplink-GE-Combo-Ports von FM-COM bieten. Die Höhe beträgt nur 1U, was die Installation erleichtert und Platz spart. Jeder PON unterstützt bis zu 128 Terminals, das gesamte Gerät unterstützt bei voller Konfiguration bis zu 512 ONUs. G8604T verwendet fortschrittliche Technologie zur Unterstützung von SLA und DBA, um die Ethernet- und QoS-Funktionen zuverlässig zu nutzen. Es wird für das digitale Management von kommerziellen und Netzen eingesetzt, um im implementierten Projekt für das nationale Stromnetz perfekte, intelligente, leistungsstarke, fortschrittliche und professionelle Lösungen für die „automatische Verteilung“ und „Erfassung von Strominformationen“ bereitzustellen.

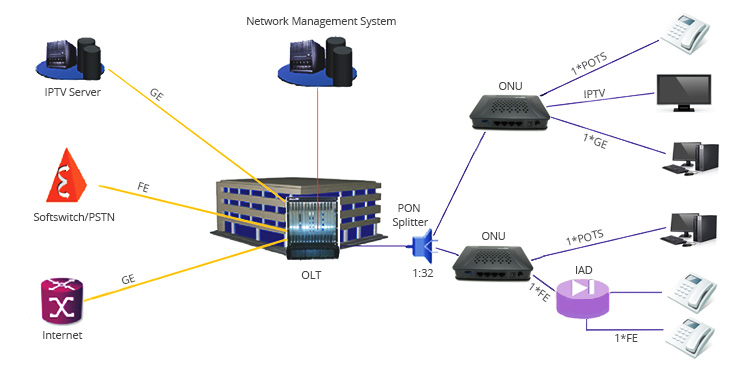

Anwendungstabelle

Merkmale

Attributes	FM-G8604T
PON features	GPON	Satisfy ITU -T standard
TR-101 compliant solution for FTTx OLT applications
High splitter rate, each PON port supports 128*ONU
Maximum transmission distance of 20KM
Support uplink FEC, downlink FEC(Forward Error Correction)
ONU identifier authentication :SN /SN+PASSWD
Bandwidth allocation mechanism
5 types of T-CONT bandwidth
Static Bandwidth Allocation
Dynamic Bandwidth Allocation
GPON feature parameter
4096 port-IDs per GPON MAC (Downstream and Upstream)
1024 Alloc -IDs per GPON MAC (Upstream )
L2 features	MAC	MAC Black Hole
Port MAC Limit
VLAN	4K VLAN entries
Port-based/MAC-based/IP subnet-based VLAN
Port-based QinQ and Selective QinQ (StackVLAN)
VLAN Swap and VLAN Remark and VLAN Translate
GVRP
Based on ONU service flow VLAN add, delete, replace
Spanning tree protocol	IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP)
Port	Bi-directional bandwidth control
Static link aggregation and LACP(Link Aggregation Control Protocol)
Port mirroring and traffic mirroring
Security features	User security	Anti-ARP-spoofing
Anti-ARP-flooding
IP Source Guard create IP+VLAN+MAC+Port binding
Port Isolation
MAC address binds to port and port MAC address filtration
IEEE 802.1x and AAA/Radius authentication
TACACS+ authentification
dhcp anti-attack flood attack automatic suppression
ONU isolation control
Device security	Anti-DOS attack(such as ARP，Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack
SSHv2 Secure Shell
SNMP v3 encrypted management
Security IP login through Telnet
Hierarchical management and password protection of users
Network security	User-based MAC and ARP traffic examination
Restrict ARP traffic of each user and force-out user with abnormal ARP traffic
Dynamic ARP table-based binding
Supports IP+VLAN+MAC+Port binding
L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet
Port-based broadcast/multicast suppression and auto-shutdown risk port
Port-based broadcast/multicast suppression and auto-shutdown risk port
URPF to prevent IP address counterfeit and attack
DHCP Option82 and PPPoE+ upload user’s physical location
Plaintext authentication of OSPF, RIPv2 and MD5 cryptograph authentication
IP routing	IPv4	ARP Proxy, DHCP Relay, DHCP Server, Static route
IPv6	ICMPv6, ICMPv6 redirection, DHCPv6, ACLv6, Configured Tunnel, 6to4 tunnel
IPv6 and IPv4 Tunnels
Service features	ACL	Standard and extended ACL
Time Range ACL
Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic
Support packet filtration of L2～L7 even deep to 80 bytes of IP packet head
QoS	Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow
Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark
CAR(Committed Access Rate)、Traffic Shaping and flow statistics
Packet mirror and redirection of interface and self-defined flow
Super queue scheduler based on port and self-defined flow. Each port/flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoid mechanism，including Tail-Drop and WRED
Multicast	IGMPv1/v2/v3 、IGMPv1/v2/v3 Snooping
IGMP Filter
MVR and cross VLAN multicast copy
IGMP Fast leave
IGMP Proxy
PIM-SM/PIM-DM/PIM-SSM
PIM-SMv6、PIM-DMv6、PIM-SSMv6
MLDv2/MLDv2 Snooping
MPLS	NPLS LDP
Reliability	Loop protection	EAPS and GERP (recover-time <50ms)
Loopback-detection
Link protection	FlexLink (recover-time <50ms)
RSTP/MSTP (recover-time <1s)
LACP (recover-time <10ms)
BFD
Device protection	VRRP host backup
Double fault-tolerant backup of host program and configuration files
1+1 power hot backup
Maintenance	Network maintenance	Telnet-based statistics
RFC3176 sFlow, LLDP
802.3ah Ethernet OAM
RFC 3164 BSD syslog Protocol
Ping and Traceroute
Device management	Command-line interface（CLI）, Console, Telnet and WEB configuration
System configuration with SNMPv1/v2/v3
RMON (Remote Monitoring)1/2/3/9 groups of MIB
NTP(Network Time Protocol)

Bestellinformationen

Product model No.	Product description
FM-G8604T	Cassette OLT (4 downlink 1000M PON ports, 8 uplink GE Combo ports)
FM-G8608T	Cassette OLT (8 downlink 1000M PON ports, 8 uplink GE Combo ports)

Spezifikation

Attributes	FM-G8604T
Switching capacity	102Gbps
Throughput (IPv4/IPv6)	75.88MPPS
Ports	4PON ports, 8GE FX+8GE TX, 210GE SFP+
Power redundancy	Dual power supply. Can be double AC, double DC or AC+DC
Power supply	AC: Input 100～240V, 47～63Hz;
DC: Input -36V～-75V;
Power consumption	≤85W
Outline dimensions (mm) (WDH)	440mm×44mm×380mm
Weight (in maximum configuration)	≤3kg
Environment Requirements	Working temperature: -15℃～55℃
Storage temperature: -40℃～70℃
Relative humidity: 10%～90%, no condensing
