Optisches MEMS-Dämpfungsglied 1260-1650nm SM Fiber TTL+UART Steuerung

Parameter

Unite

Value

Wavelength Range

nm

C band:1530~1570nm     L band:1570~1610nm

Attenuation Type

--

Bright or Dark

Attenuation Range

dB

≥30

Insertion Loss

dB

≤0.7

Attenuation Resolution

dB

Continuous

PDL

dB

≤0.1

Wavelength Dependent Loss

dB

≤0.3@ 0dB , ≤1.5 @20dB

Temperature Dependent Loss (compare with RT）

dB

≤0.7@ 0dB , ≤1.0 @20dB

Return Loss

dB

≥45

Fiber Type

--

SM，PM fiber

Response Time（10-90%optical power）

ms

≤3

Driving Voltage

V

6.5V

Driving Power

mW

≤2

Maximum Optical Power

mW

≤500

Operating Temperature

℃

-0～+70

Storage Temperature

℃

-40～+85

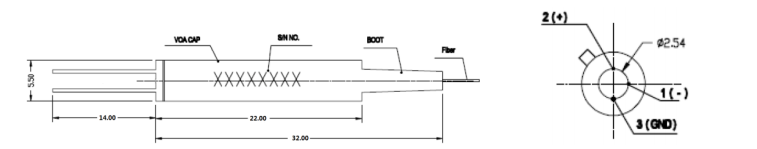

Package Dimensions

mm

22×Φ5.5 (L×D)

MVOA

-

×

×

××

×

××

×

-

×

×

wavelength

Att. Type

Drive Voltage

Fiber Type

Pigtail Length

Pigtail Type

Input

output

1=850nm

B=Bright

05=5V

1=SMF-28

05=0.5m

B=Bare Fiber

0=None

0=None

2=1064nm

D=Dark

15=15

2=HI 1060

10=1.0m

L=900um Loose Tube

1=FC/UPC

1=FC/UPC

3=1310nm

3=MM50/125

2=FC/APC

2=FC/APC

4=1550nm

4=MM60/125

3=SC/UPC

3=SC/UPC

X=Customized

X=Customized

4=SC/APC

4=SC/APC

5=LC/UPC

5=LC/UPC

6=LC/APC

6=LC/APC
