FM SKU#:SKUA0124V
Model#:OM2-MTRJ-MTRJ-DXAM-FM
MFG PART#:

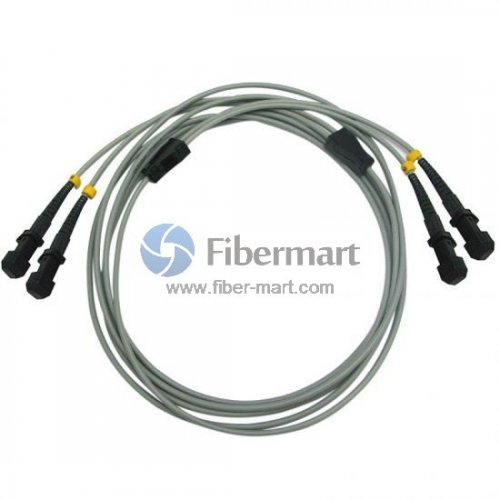

MTRJ/UPC to MTRJ/UPC Duplex Multimode 50/125 OM2 Armored Patch Cable
Armored patch cable can be deployed directly in different harsh environment, without additional tube for protection, save space, reduce construction cost, and make the maintenance more conveniently. This Duplex Multimode Armored Standard fiber optic cable constructed with highest quality components for unmatched durability and reliability. With a Standard Boot on each end. This cable is appropriate for use in data centers and networks with 10G MTRJ applications.
With OFNR (Riser)/OFNP(Plenum) and 3.0mm thickness, this Armored Fiber Optic cable is specifically designed for light to medium duty indoor/outdoor applications. Its rugged shell with steel and kevlar is 10 times stronger than regular Fiber Optic Cable and has a 40% higher rated range of operating temperature. Deploy this cable in environments where networking equipment undergo repeated abuse.
Fiber-Mart Multimode 50/125 armored patch cable provide 1Gigabit data transfer speeds in high bandwidth application, up to 5 times faster than standard 50/125um fiber patch cable. With Fiber-Mart good development, we can offer more and more competitive price on a relatively higher-end heavy armored patch cables.
Warm Tips:The default fiber diameter for the cable is 3.0mm,if you'd like to customize other types as 0.9mm,2.0mm,please kindly enquiry us. (The diameter is refer to the thickness of the cable,the size is able to match the corresponding equipment port.)
Features
-
Stainless steel tube & metal braid under outer LSZH jacket
-
Micro diameter stainless steel tube for protection
-
High resistance of tensile strength, pressure, rodent bite
-
Without damage by construction
-
Ensure transmission power and avoid additional attenuation
-
Prevent optic fiber from destroy by harsh environment
-
Prevent optic fiber from destroy by improper operation
Applications
-
FTTH, LAN, Test equipment, Military industry
-
CATV
-
Measuring equipments
-
Fiber optic communication system
-
Optical active component and equipment
Item information
-
Fiber: Duplex OM2 50/125 Multimode Fiber Optic Cable
-
Connector: MTRJ-MTRJ Connectors at ends
-
Cable Jacket: Armored/Military Tactical
-
OFNR (Riser) Rated
-
Standard Boot on each end
-
Color: Gray
Structures
Each light armored patch cable is inserted in a protective flexible stainless steel tube as you see in the picture.
Custom OEM
Fiber-Mart offer customization solutions as below:
-
Any Fiber Type- OM4 optical fiber, OM3 optical fiber, Single-mode 9/125 optical fiber, OM1 Multimode 62.5/125 optical fiber and OM2 Multimode 50/125 optical fiber for choice.
-
Any connectors- FC, ST, LC, SC, MTRJ, E2000, MU etc connectors for choice.
-
Any lengths- 1m, 2m, 3m, 4m ...100m... no limits.
-
Label or Logo customs- we can print customer logo on fiber patch cable at this position:
.jpg)
|
ConnectorType |
MTRJ to MTRJ |
|
FiberType |
Multimode OM2 50/125 |
|
Length |
3m |
|
EndfaceType（nm） |
PC |
UPC |
APC |
|
InsertionLoss（dB） |
≤0.20 |
≤0.20 |
≤0.30 |
|
Repeatability（dB） |
≤0.10 |
|
Exchangeability（dB） |
≤0.20 |
|
ReturnLoss（dB） |
≥45 |
≥50 |
≥60 |
|
CoreDiameter |
50µm±2.5µm |
|
CladdingDiameter |
125µm±1µm |
|
OuterDiameter |
3.2mm±0.10mm |
|
Max.Attenuation |
3.5dB/km@850nm
1.5dB/km@1350nm |
|
Min Static Bend |
10D |
|
Min Dynamic Bend |
15D |
|
TensileLoad(longterm) |
400N |
|
TensileLoad(shortterm) |
400N |
|
Crush(longterm) |
3000N/100mm |
|
Crush(Shortterm) |
5000N/100mm |
|
OperationTemperature(℃) |
-25℃~+70℃ |
|
StorageTemperature(℃) |
-40℃~+85℃ |
|
Durability(time) |
>1000times |
|
IndustryStandard |
TelcordiaGR-326-CORE |
