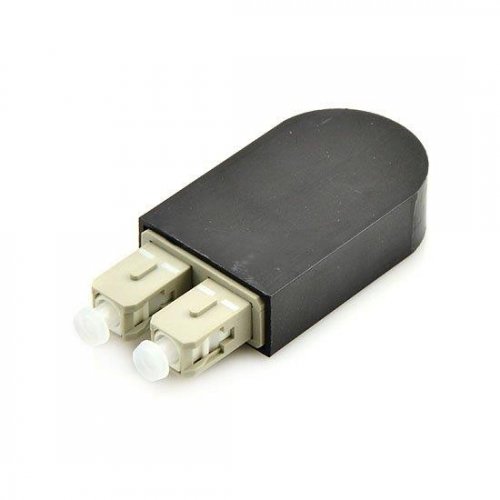

SC/UPC Duplex PVC OM3 Multimode Fiber Loopback

OM3 Multimode 50/125 Fiber Loopback Module SC Connector

Fiber Loop back is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Fiber Loopback is abosolutely an economical solution for a number of fiber optic test applications.
Fiber-MART Co., Limited supply various kinds of Single Mode and Multimode Fiber Optic Loopback Cables, which are with different connectors including ST, SC, FC, LC, MU, MTRJ etc. Each cable is functionally tested before shipping and is covered by a lifetime warranty.

Key Features

Used in OM3 Multimode Fiber Testing Application 100%Functionally tested before shipping Ease and accuracy of insertion as duplex clips hold connectors together 8 inches standard length (Custom length also available upon request) Lifetime Warranty

Applications

R&D Fiber labs Telecom testing FTTX testing

Specifications

Type: Loopback Module
Fiber: 10G Multimode 50/125
Connector: SC/PC
Jacket Style: PVC (Aqua)
Durability: Over 500 cycles (<= 0.2 dB change)
Reflectance: minimum of 20 dB
