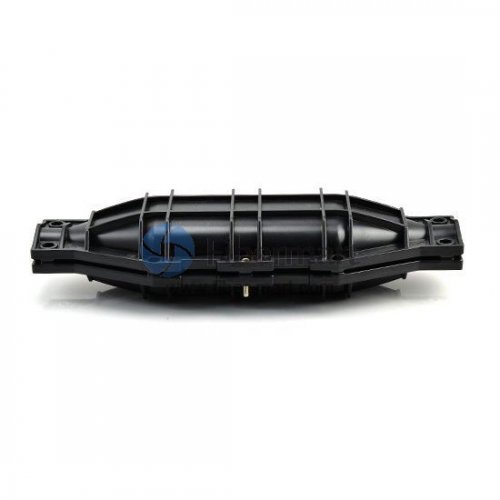

12 Fibers 1In-1Out Horizontale Glasfaserspleißverbindungen der Serie FM013

SKU: #793
Artikelnummer: sku0793

Preis: US$16.25
Anzahl:

  • Beschreibung
  • Bestellung von Support
  • Sonstige Bemerkungen
  • Tags:

FM SKU#:SKU00289U
Model#:FM013H-1IO-12
MFG PART#:FM013H-1IO-12

Description

The horizontal (inline) fiber splice closures are produced to provide space and protection for the fiber optic cable splicing and joint. They are with the perfect sealed design which have the function of waterproof and dust proof. We now provide many kinds of horizontal fiber optic splice closres which vary in sizes, fiber cores types, fused fibers quantity. And they are all with good performance and competitive prices.

Specifications

  • Excellent sealing performance, reusable
  • Compact size and rugged
  • Suitable for ordinary fiber and ribbon fiber
  • Overlap structure in splicing tray easy to install
  • Inner and external push button can insure good sealing,requirements of cable torque , stretching, pressure, bending
  • For aerial, and direct buried applications
  • Easy operation with full range of accesories included
  • 2 Fiber cores: 1in-1out
  • For 12 single fusion fibers

Scope of application

  • This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
  • The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃

Sample Picture


Basic structure and configuration

Dimension and capacity;


Outside dimension (LxWxH)
340×150×70 (mm)
Weight (excluding outside box) 1500g-2000g
Number of inlet/outlet ports 2 (pieces) on each side (total 4 pieces)
Diameter of fiber cable Φ8—Φ16 (mm)
Capacity of FOSC Bunchy: 12—48(Cores)


Main components


No.
Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole Internal diameter:
        270×100×60(mm)
2 Insert plate 2 pairs Fixing the housing 175x56x30(mm)
3 Fiber optic splice tray (FOST) Max 2 trays(bunchy) Max 2 trays( ribbon) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24(cores) Ribbon: 3 (pieces)
4 Foundation 1 set Fixing fiber cable, reinforced core and FOST
5 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
6 Port plug 6pieces Sealing empty ports
7 Pressure testing valve 1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metallic parts of fiber cable in FOSC for earthing connection Configuration as per requirement

Main accessories and special tools


No.
Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices To put through as per actual requirement
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 3 pieces Fixing bolts, tightening nut of reinforced core
10 Measuring paper 1 piece To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape To measure perimeter with the corresponding measuring paper
11 Buffer tube To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air.
