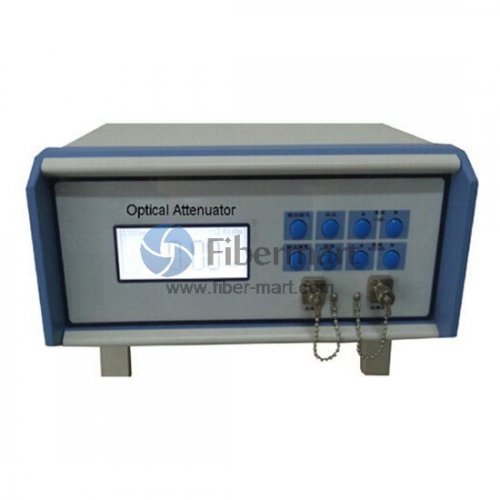

1260~1630nm Variabler optischer Desktop-Dämpfer FM-D7610B (0~60dB)
1260~1630nm Variabler optischer Desktop-Dämpfer FM-D7610B basiert auf der MEMS-VOA-Technologie. Es hat eine hohe Auflösung, eine hohe Reaktionsgeschwindigkeit, eine gute Linearität, eine hohe Auflösung und eine niedrige IL und insbesondere eine Kalibrierungsfunktion, sodass es ein ideales Instrument für optische Netzwerksysteme und optische Engineering-Tests ist.
Hauptmerkmale
MEMS-Design, hohe Genauigkeit
Hohe Zuverlässigkeit, Follow Telcordia
Geringe Einfügedämpfung, hohe Rückflussdämpfung
Automatische Kalibrierung, Ausgabeanzeige
Anwendungen
Optisches Netzwerksystem
Prüfung optischer Geräte
Wissenschaftliche Laborausstattung
Spezifikation
Working wavelength(nm) |
1260~1630 |
850 |
Attenuation Range (dB) |
0~60 |
0~25 |
Excess Loss (dB) |
-3 |
-2 |
Attenuation accuracy (dB) |
0.03 |
0.05 |
Attenuation Step(dB) |
0.01 |
0.01 |
Optical Monitor Range(dBm) |
-55 ~ +10 |
-55 ~ +10 |
Test Uncertainty (dB) |
±0.13 (3%) |
±0.13 (3%) |
Test Linear (dB) |
0.02 |
0.02 |
Display resolution(dB) |
0.01 |
0.01 |
Communication |
RS232/GPIB |
Power Supply |
110VAC/220VAC 50HZ |
Working temperature (℃) |
-10~+40 |
Storage temperature (℃) |
-25~+70 |
Weight (kg) |
3k |
Dimension(mm) |
385*260*120 |
