IP67 SC to Standard LC/SC/ST/FC Duplex Singlemode Waterproof Fiber Patch Cable

FM SKU#:SKU0001C2
Model#:WP-SX-SM-IP67SC-xx
MFG PART#:

IP67 SC to Standard LC/SC/ST/FC Duplex Singlmode Waterproof Fiber Patch Cable

Waterproof fiber optic patch cables are designed to fit for outdoor applications. The waterproof fiber optic cables are with strong PU jacket and armored structure, they can resist high temperature and suit to use in harsh environment. Fiber-Mart provides wide degree flexibility on Waterproof fiber optical cables, including Duplex, Simplex, 12fibers and 24fibers various kinds of connect interfaces optional such as LC/SC/FC/ST/MPO connectors and so on.

IP67 SC to Standard LC/SC/ST/FC Duplex Singlmode Waterproof Fiber Patch Cable with IP-SC on one end of cable and standard LC/SC/FC/ST connector on the other end. the IP-SC connector exceed the requiremnets of ODVA, and meet IP66/67 environmental sealing ratings, it is the ideal choice for a low cost and easy to use solution in industrial, Fiber to the Antenna, or any other harsh environmental applications. The IP-SC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67SC-LC/SC/FC/STSinglemode Simplex Waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.

International Protection(IP) Rating

Features & Application

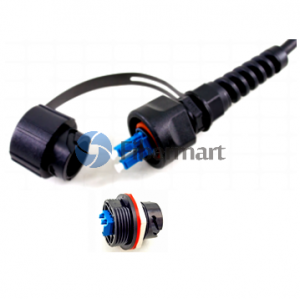

IP67SC Connectors: socket & plug

There are two types of IP67SC weatherproof connector: IP67SC plug (with standard SC connectors) and IP67SC Socket (with SC slot), the plug of one cable and the socket of the other cable can be connected to extend the cable length.

IP67 SC Component Details

Fiber-Mart IP67SC cable connector accommodates simplex, singlemode APC, optical channels based on the conventional and proven SC connector. The Aluminum housing, features a spring-loaded push-pull locking mechanism and excellent cable retention utilising an aramid yarn within the cable. Fibres within both chassis and cable connectors are protected against dirt and dust when unmated by an automatically operated sealing-cover. In addition to the automatic sealing shutters, a rubber-coated, steel, latching protective cap is fitted for use when unmated,.When mated or capped, the connection is environmentally sealed up to IP67.

Specification
