12 Fibers Mechanical Seal Type Vertical/Dome Fiber Optic Splice Closure

12 Fibers FM-S001 Series Fiber Optic Splice Closure 4 Entries Vertical/Dome

Vertical (Dome) fiber optic splice closures are made of excellent engineering plastics.Fiber-Mart.COM supply different ports types, fittings and different fiber optic core numbers for vertical/dome fiber optic splice closures. The main application for vertical fiber optic splice closure is in CATV, telecommunications and fiber optic networks. They are suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.

Key Features

• High-strength engineering plastic shell
• High mechanical performance
• Great aging resistant ability
• Excellent sealing performance
• Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
• Does not require special tools, easy to install and open the duplicate.
• The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
• Come with related fiber optic trays and splice protection sleeves
• The scope of application : aerial, direct-buried, wall-mounting, duct-mounting

Main Technical Parameters

• The application of temperature : -40℃～65℃
• Atmospheric pressure: 70～106KPa
• Resist pull: ＞1000N
• Insulation resistance: ＞2×104MΩ
• Resist pressure: ＞2000N/10cm2pressure,time 1 min
• Dielectric strength: 15KV (DC)/1 min spark-over and no flying arc.

Specifications

• No. of Cable Inlet/Outlet: 4(one oval port and three round ports)
• Number of Fibers, Bunchy: 12
• Sealing of Shells: Silicon rubber
• Sealing of Inlet/Outlet ports: Heat-shrinkable tube
• Length:435 mm, Diameter:190 mm
• Weight: 2.6kg

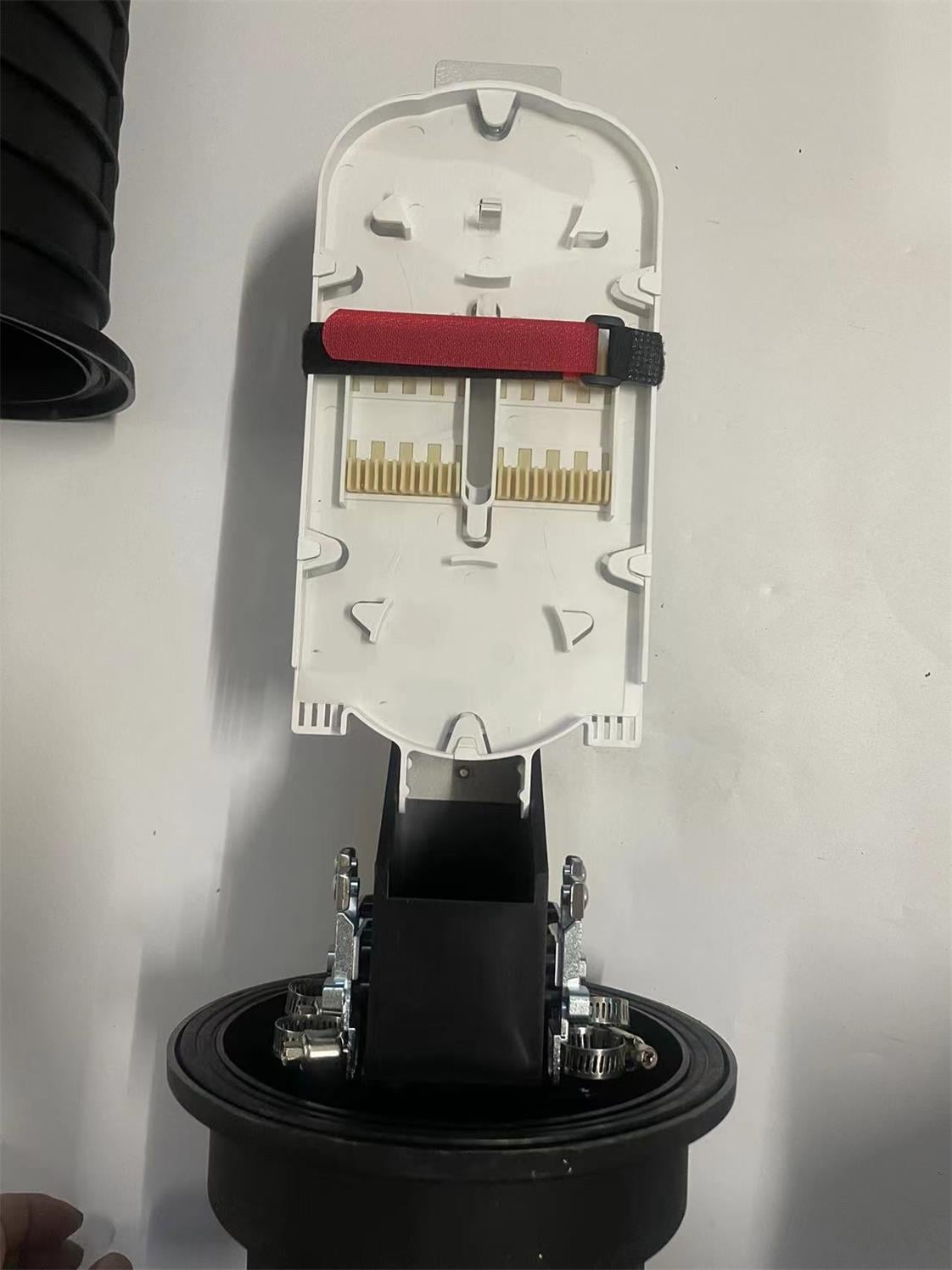

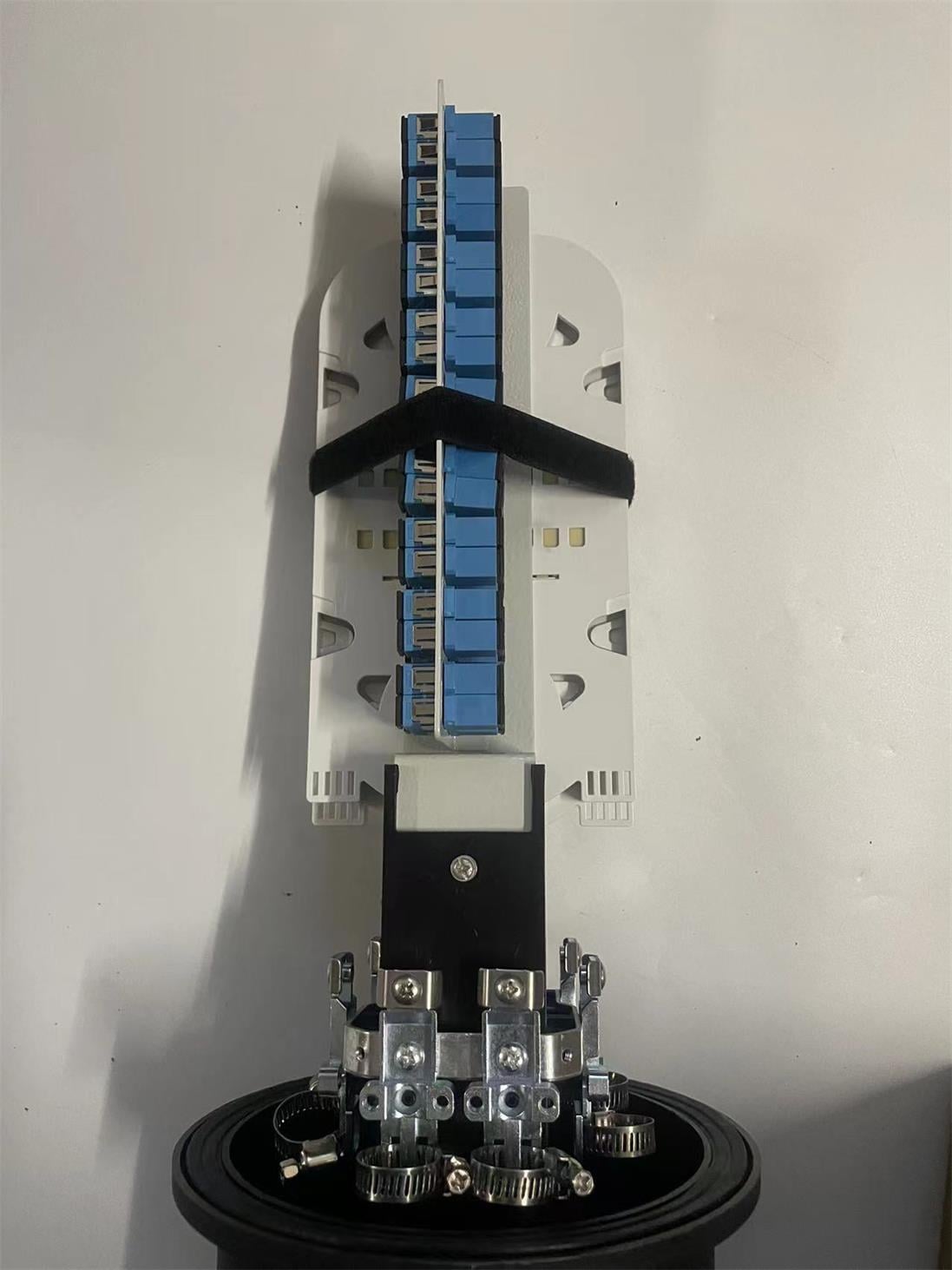

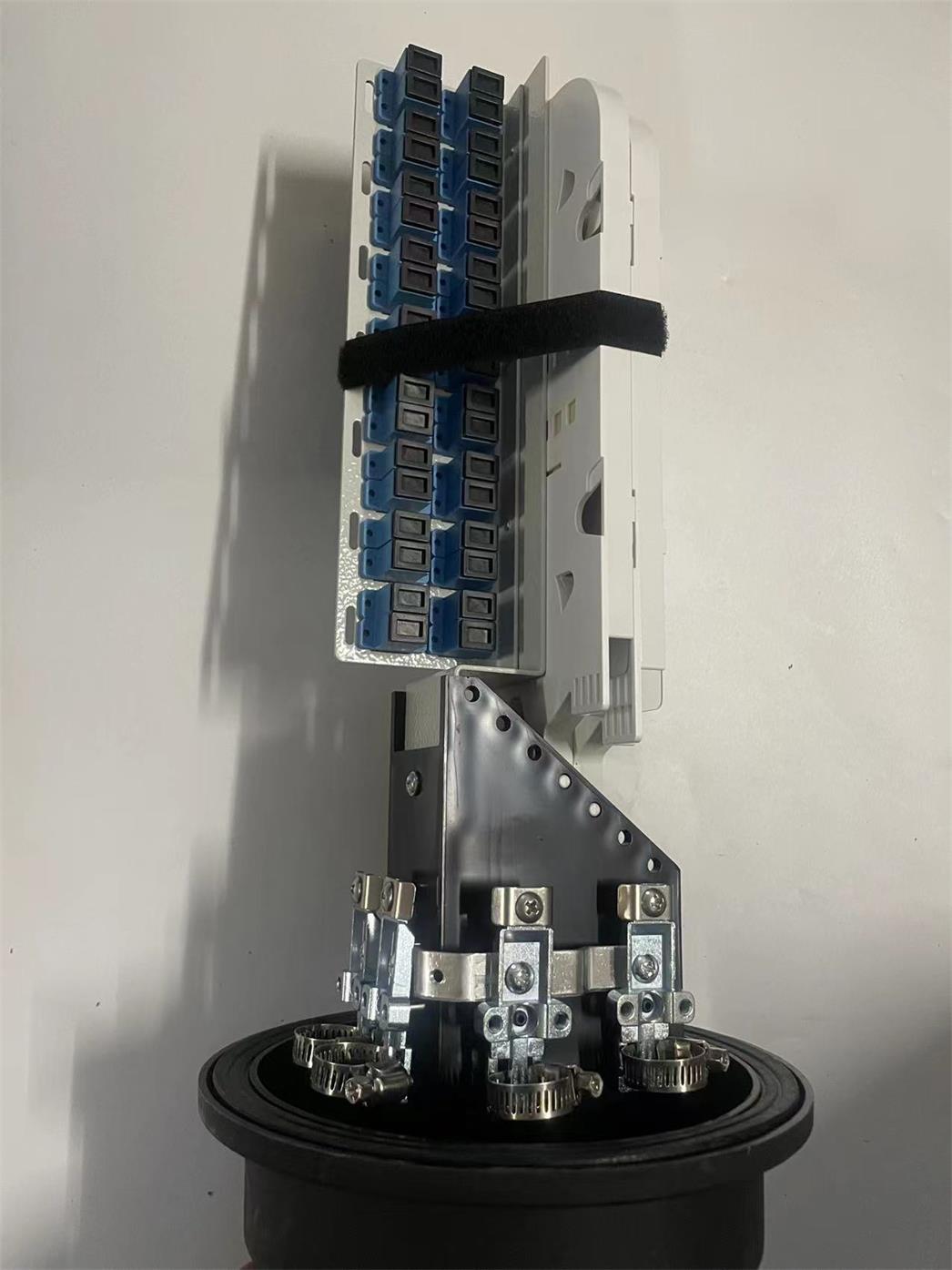

Sample Picture

Basic structure and configuration

Dimension and capacity;

Main components

Main accessories and special tools
