12 Fibers OM3 Multimode 12 Strands MTP Jumper Cable 3.0mm LSZH/Riser

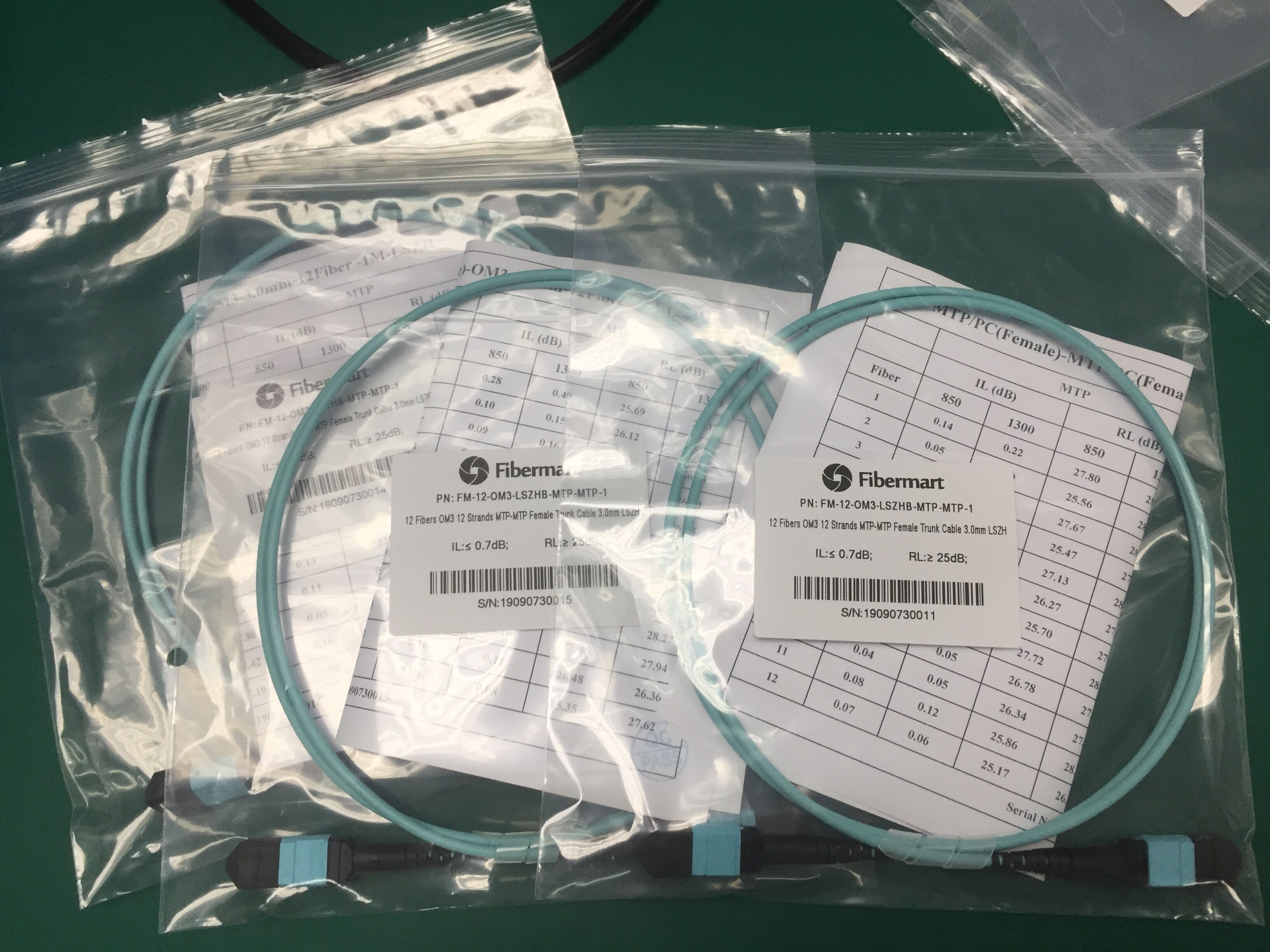

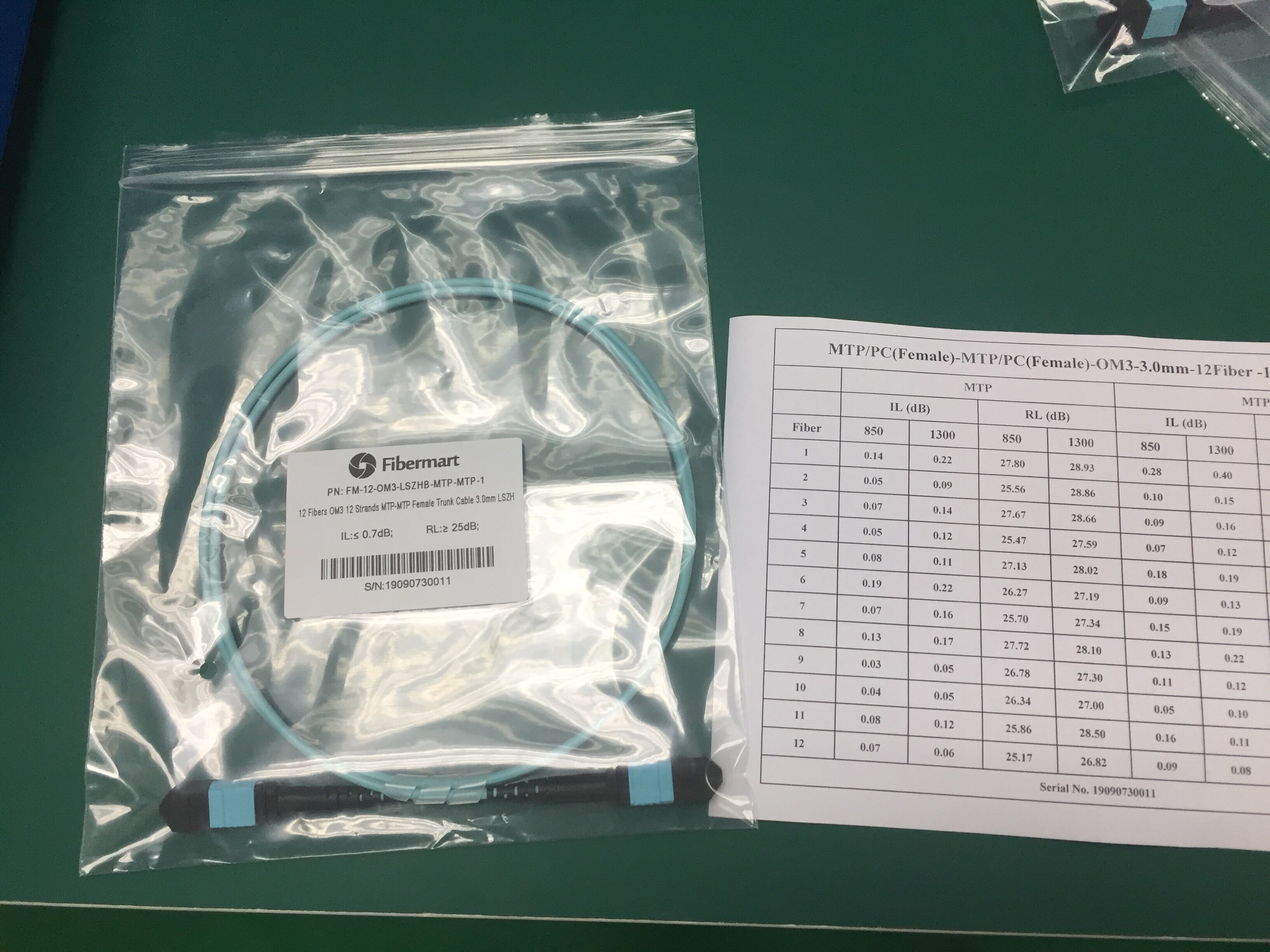

12 Fibers MTP to MTP Fiber Cable, 50um OM3 Fiber 12 Strands - MTP-12 Cable Fiber Jumper

MTP Cable is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

Fiber-Mart's MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

• The data centra application with high dense degree environment
• The optical fiber to the building
• The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.

10G upgrade to 40G/100G data center.

MTP Connector Types

MTP Male with Pins	MTP Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side.(Note: Female connector need to connect with male connector type.)

Pre-terminated MTP Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Assembly Structure Illustration

MTP Trunk Fiber Patch Cables are terminated with MTP connector on both end.
1.The default diameter of the MTP cable is 3.0mm.
2.The default color of the single mode MTP connector is Blue.
3.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter strands.
4.We also support custom pulling eyes for the cable, welcome to contact me for details.

MTP & MPO Difference

The term MTP is a registered trademark of US Conec, it has been the main trend in European and American areas.

MTP/MPO Machinery & Testing Equipment

Parameter Reference

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m


Make To Order
