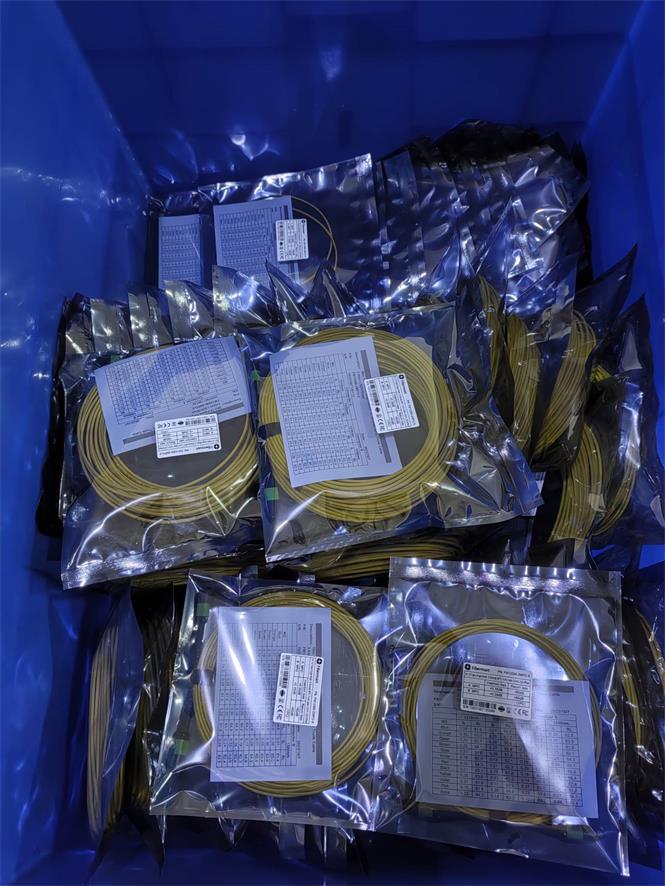

12 Fibers Single-Mode 12 Strands MPO Jumper Cable 3.0mm LSZH/Riser

12 Fibers MPO to MPO 9/125um Singlemode 12 Strands - MPO 12 Fiber Jumper Cable

MPO Fiber Cable System is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

Fiber-Mart's MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

• The data centra application with high dense degree environment
• The optical fiber to the building
• The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.

10G upgrade to 40G/100G data center.

MPO Connector Types

MPO Male with Pins	MPO Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side.(Note: Female connector need to connect with male connector type.)

Pre-terminated MPO Technology-Polarity

The three mpo polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Assembly Structure Illustration

MPO Trunk Cable, MPO Fiber Patch Cables are terminated with MPO connector on both end.
1.The default diameter of the MPO cable is 3.0mm.

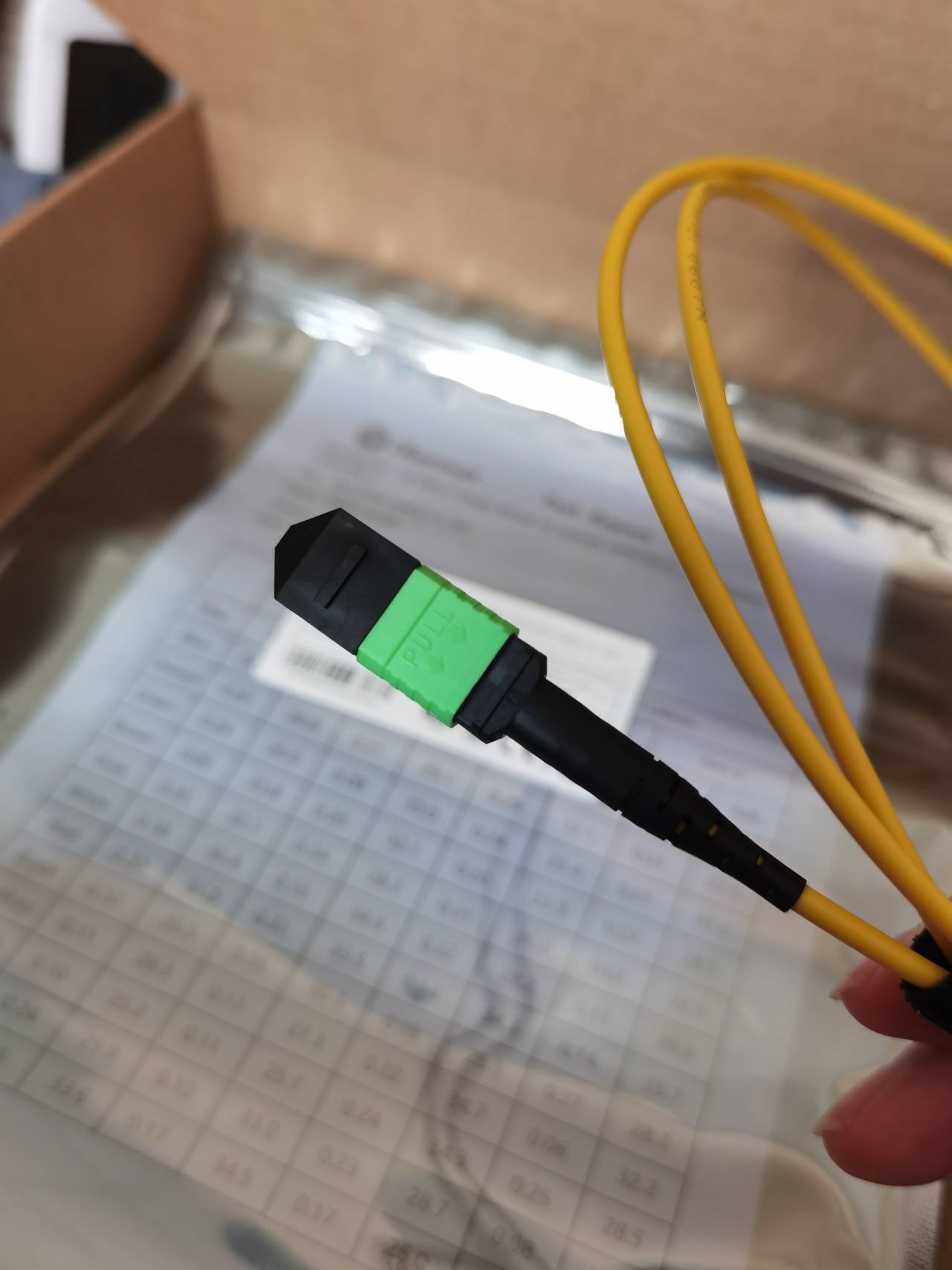

2.The default color of the single mode MPO connector is Green.
3.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter standard.
4.Fiber-Mart can also custom the mpo trunk cable pulling eyes, welcome to contact us if you need.

MTP/MPO Production Machinery & Testing Equipment

Parameter Reference

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m

Make To Order
