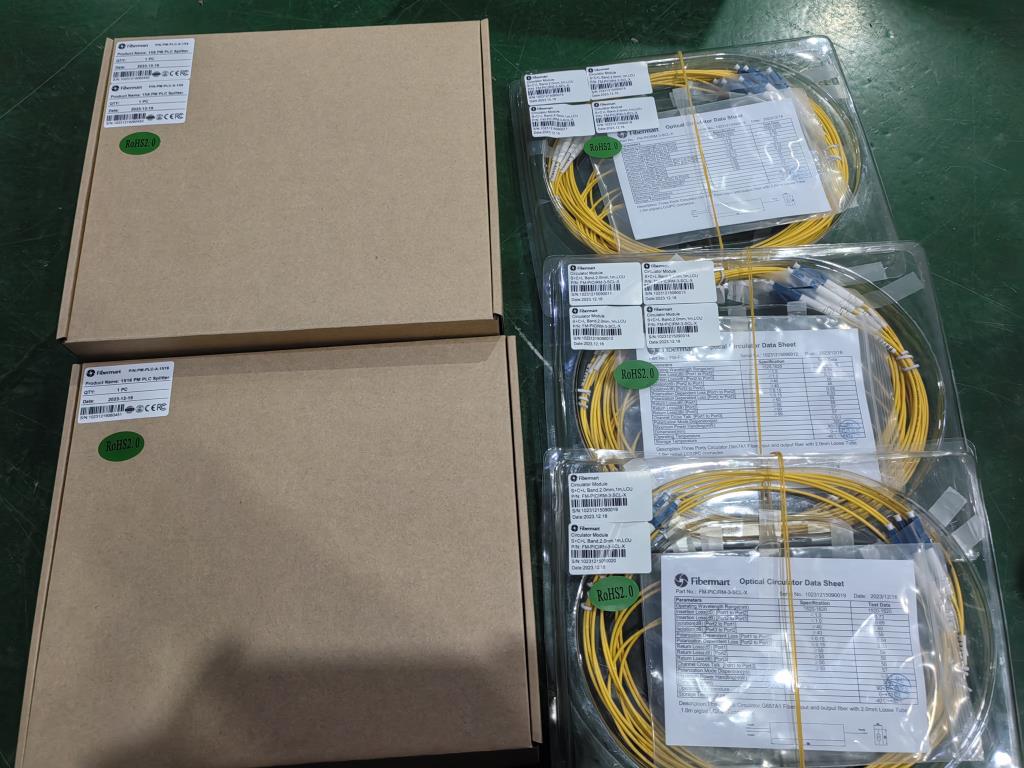

1x16 PM PLC Splitter, PM Fiber Splitter, Fiber Polarization Maintaining PLC Splitter Slow Axis w/ Plastic ABS Box Package
Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization Maintaining Fiber Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.
Features
Applications
Mechanical Drawing
|
.png)
.jpg)
| Parameters | Specifications | Unit | Notes |
| Channel Number | 1×16 | Accord with RoHS requirement | |
| Operation Wavelength | 1310 or 1550 | nm | |
| Insertion Loss | ≤13.7 | dB | |
| Uniformity | ≤1.2 | dB | |
| PER | ≥18 | dB | |
| Return Loss | ≥50 | dB | |
| Directivity | ≥55 | dB | |
| Fiber Type | 1310nm or 1550nm PM fiber | ||
| Pigtail Type | Input: PM fiber with 0.9mm or 2.0mm or 3.0mm loose tube | ||
| Output: PM fiber with 0.9mm or 2.0mm or 3.0mm loose tube | |||
| Input Length | ≥1.0 | m | |
| Output Length | ≥1.0 | m | |
| Connector | None | ||
| Tube Color | Input: white | ||
| Output: blue/orange/green/brown/gray/white/red/black | |||
| Package Dimension | 120(L) × 80(W) × 18(H) | mm | |
| Operation Temperature | -40 ~ +85 | ℃ | |
| Storage Temperature | -40 ~ +85 | ℃ |
