23dBm C-Band Polarization Maintaining PM EDFA Fiber Optic Amplifier Benchtop

PM EDFA Fiber Optic Amplifier 23dBm Output C-Band 1550nm Benchtop Polarization Maintaining (PM) Fiber Amplifier

Description

This optical amplifier is high stability output Polarization Maintaining (PM) EDFA. The key components of the product are high reliability PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power,the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and monitor are intelligent and easy.


Features

• Output stability <0.1dB
• Single mode PM output
• High stability and reliability: MTBF＞100000 hours
• Perfect status monitoring interface: RS-485 and RS-232
• High precision AGC/APC circuit: power control accuracy typ ±0.05dB
• Intelligent temperature control system: power consumption and hot radiation reduce 30％ than common products
• Compact size and circuit
• OEM is optional
• Compatible with Bellcore GR-1312-CORE

Applications

1. PM fiber sensor
2. Coherent detection
3. Free space optical communication
4. Research and Design area

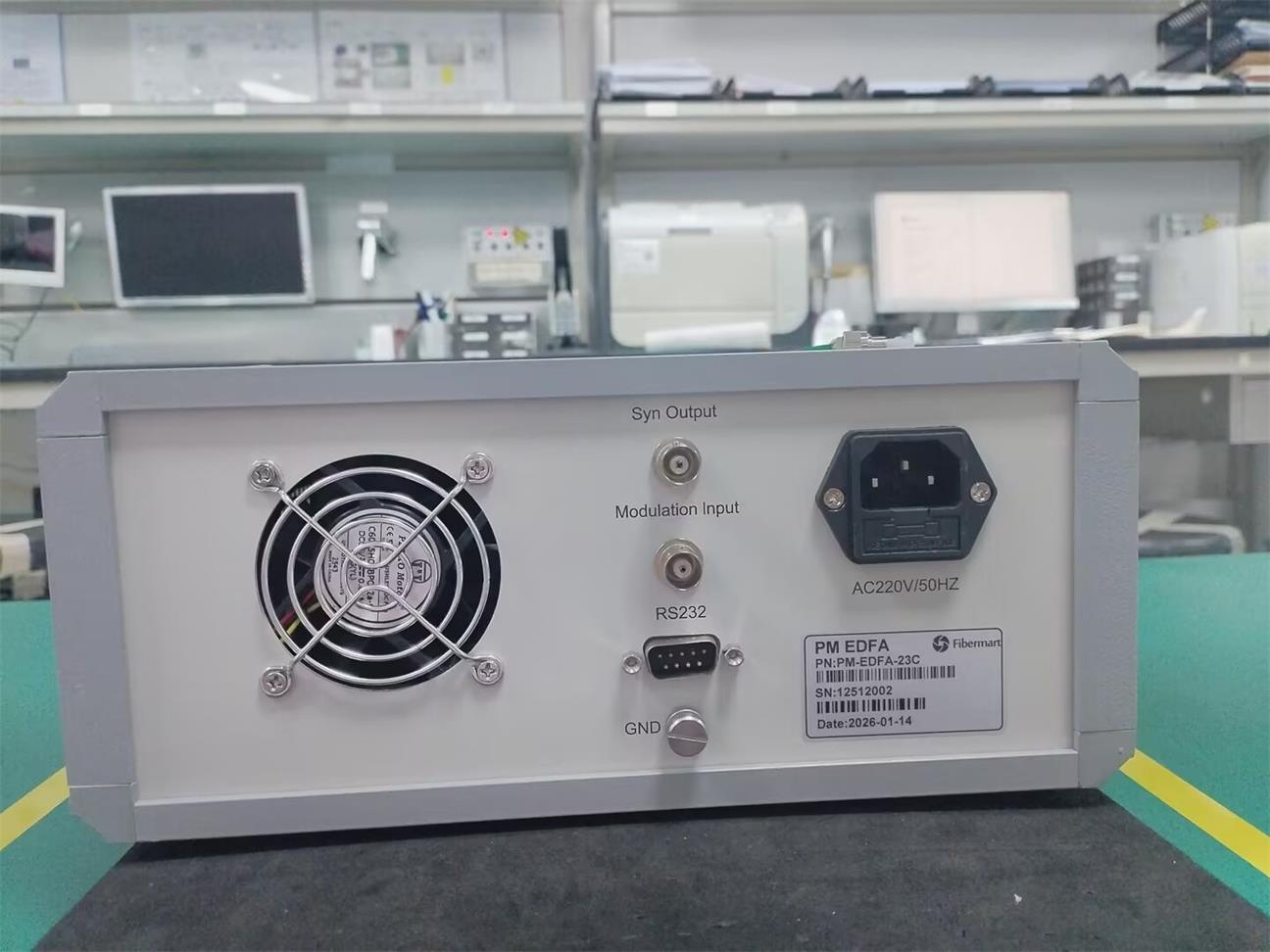

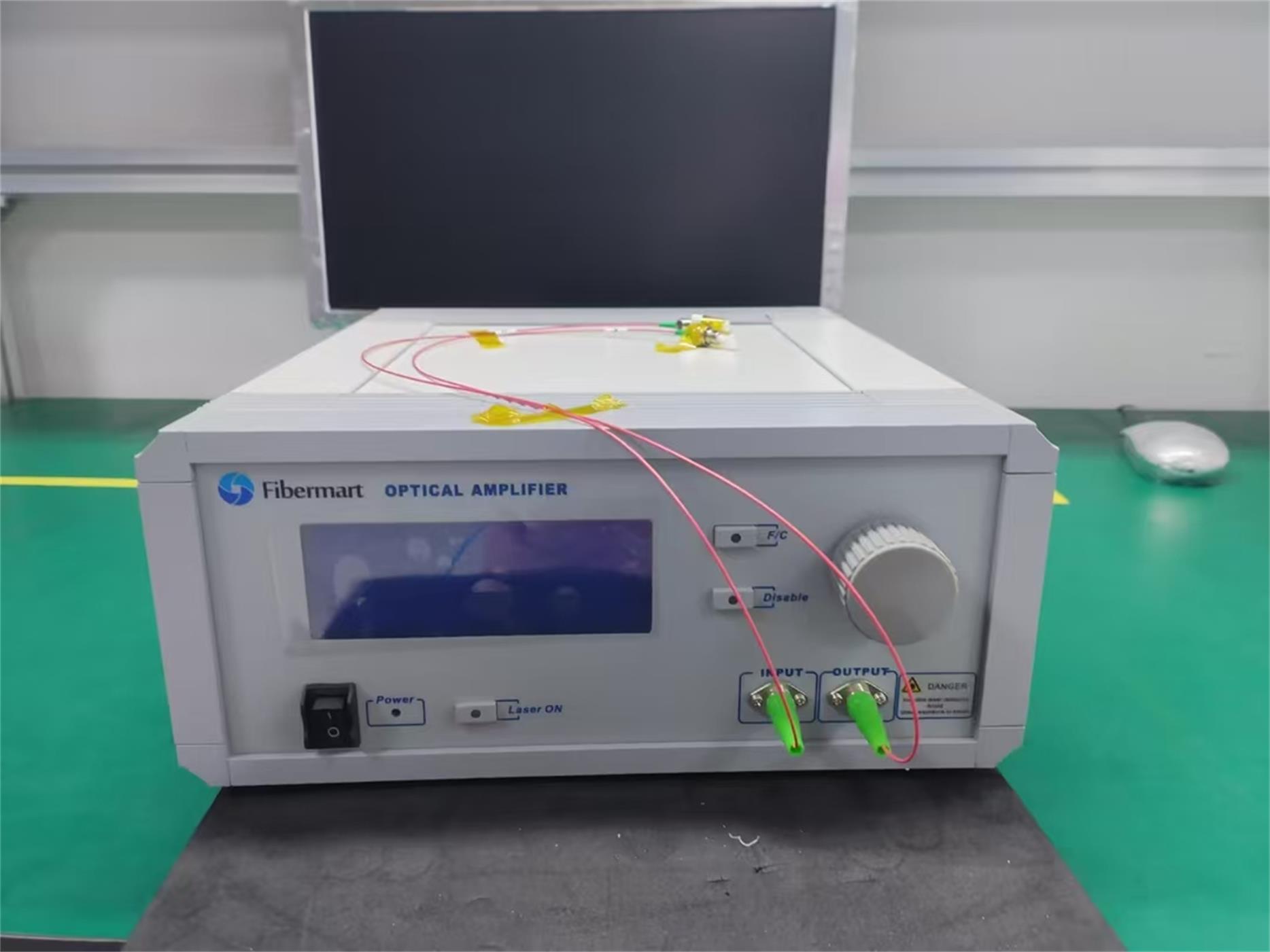

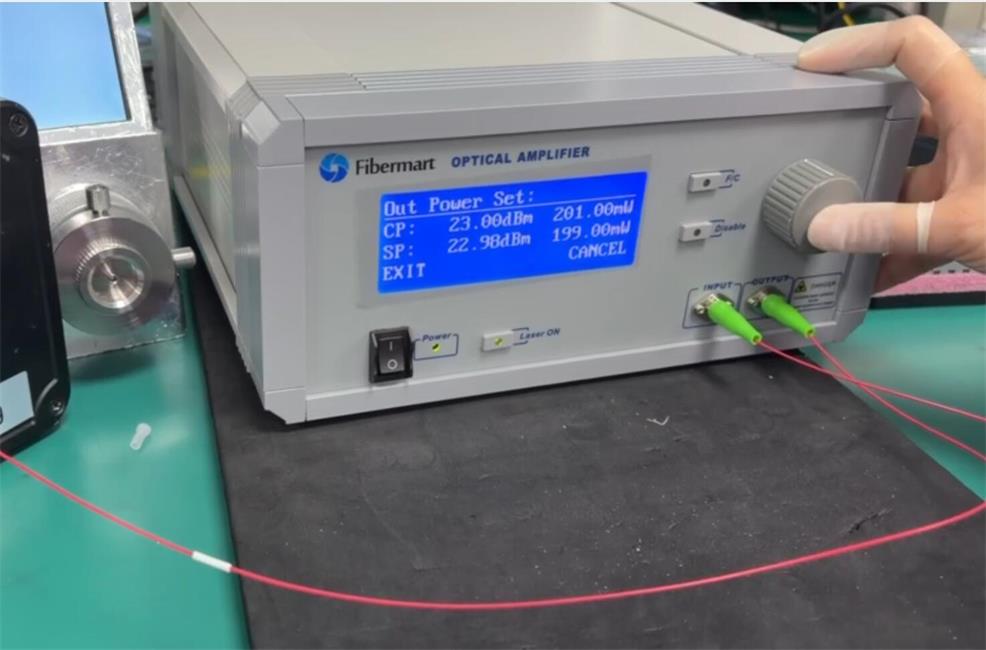

Example

Mechanical Structure

Size:280×260×112mm

Order Information

Specifications

*Optional
