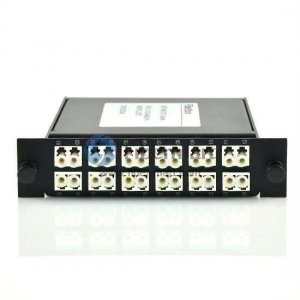

24 Fibers Multi-mode OM2 LC 12 Strands MPO LGX Cassette

24 Fibers, MPO to LC, 50/125 Mulitmode OM2 Fiber, 12 Standard, LGX - MPO Cassette Panel

Fiber-Mart’s MPO Cassette Modules provide secure transition between MPO and LC,SC,ST or FC discrete connectors with two types.
The MPO modules are fitted with 12 or 24 fibers and have LC, SC adapters on the front side and MPO at the rear.

Cassette Type: Standard	Cassette Type: Irregular shape

Kindly Reminds:

• 24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette for 24-strand MPO/MTP cable.
• 12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette for 12-strand MPO/MTP cable.

You can take the following applications for reference.

Features

• High performance zirconia sleeve adapters.
• Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
• MPO interface MPO components feature superior optical and mechanical properties.
• Optimized performance Low loss MPO Elite, discrete Premium connectors and OM4 fiber assures low insertion losses and power penalties in tight power budget, high-speed network environments.
• High density 12 or 24 fiber cassettes can be mounted in 1U scaling up to 72 or in 4U scaling up to 288 discrete connectors.
• Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.

Application

• Data centers
• LAN, WAN and SAN
• Interoffice cross-connects
• Campus environments

Mechanical Drawing:

1U slide and tilt panel - holds up to 3 cassettes (72 fibers)	MPO Cassette housing in 4U Rack mount

MPO Cassette Structure

MPO cable connect with MPO Cassette	MPO Harness cable housing in MPO Cassette

Specifications

Order Information
