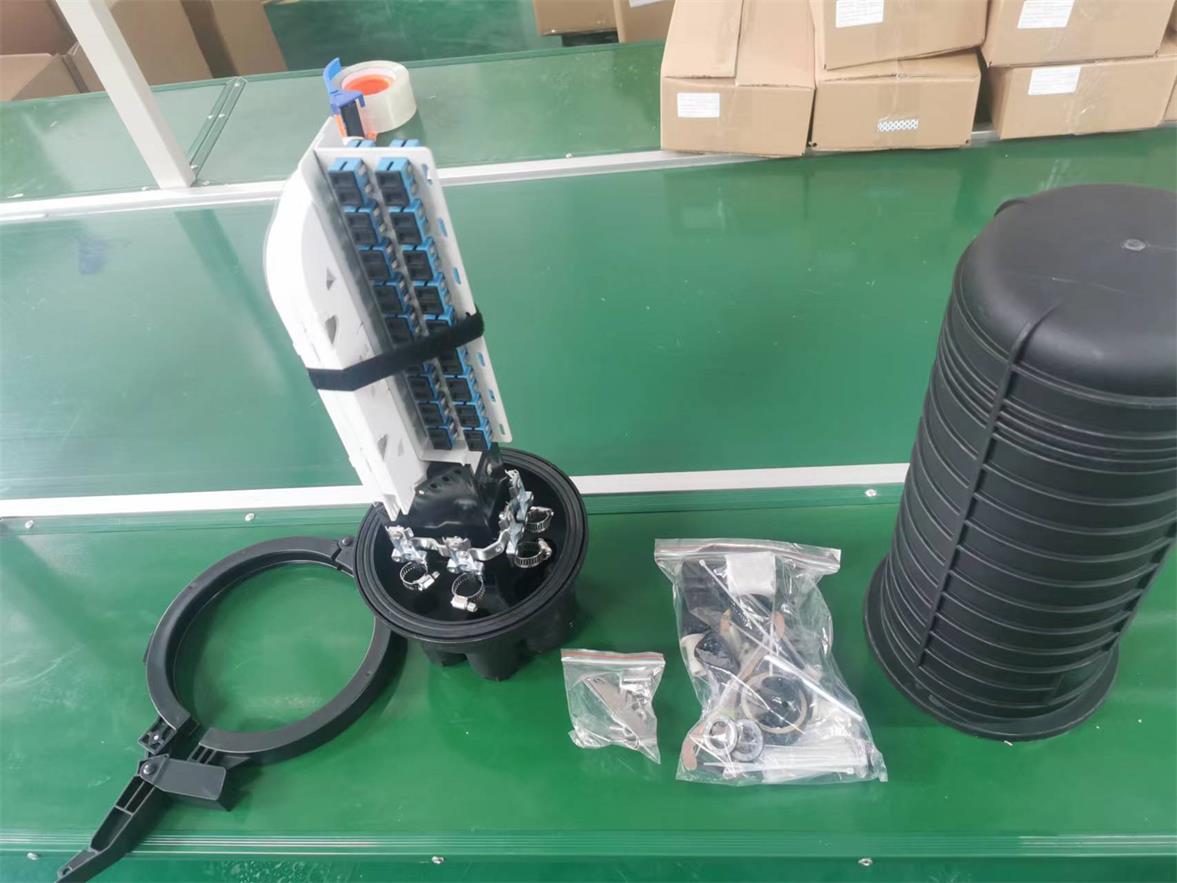

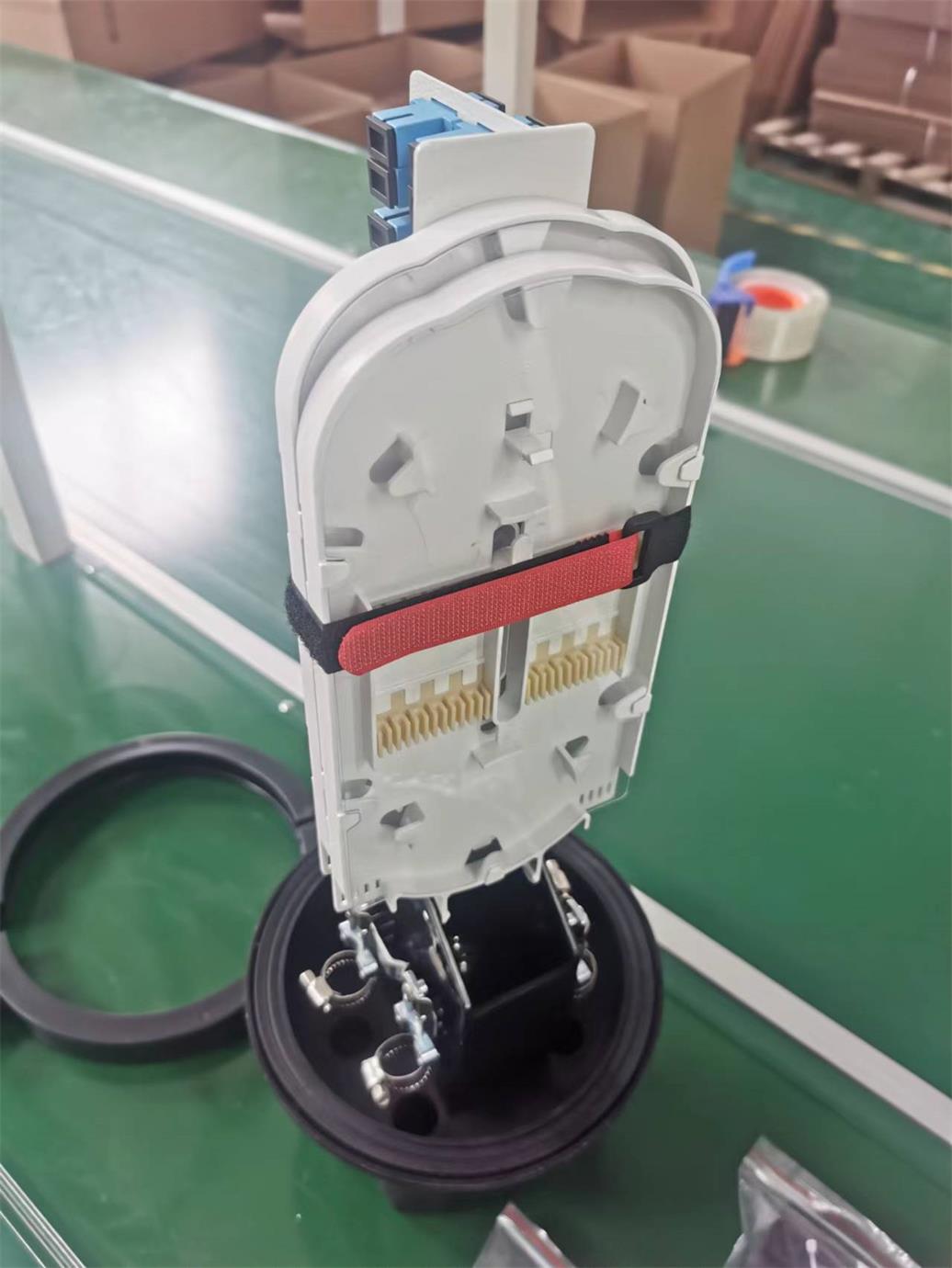

72 Fibers FM-S018 Series Fiber Optic Splice Closures 5 Entries Vertical/Dome

FM-S018 type of Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts fully-mechanical sealing structure, only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 13mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection.

Key Features

1. It could be installed 36pcs SC/PC Pigtails of 1.5
2. It applies to PLC splitter with Max ratio 2:32 or 2*2:16.
3. This model has four small round ports and one large round port.
4. The Max quantity of SC adaptor is 36pcs. (Other types of adaptor could be customized).
5. The sealing component is made from vulcanized rubber.
6. The sealing method adopts screw pressure, sealing performance is excellent, convenient to re-open, especially suitable for optical splitter used.
7. Adopt modified PP material with high strength and anti-corrosion to make the closure have a longer lifetime and excellent sealing performance.
8. There are various sealing accessories of soft cable to be chosen

Main Technical Parameters

The application of temperature : -40℃～65℃
Atmospheric pressure: 70～106KPa
Resist pull: ＞1000N
Resist pressure: ＞2000N/10cm2pressure, time 1min
Insulation resistance: ＞2×104MΩ
Dielectric strength: 15KV (DC)/1 min spark-over and no flying arc.

Specifications

Applies to PLC splitter
Fully-mechanical sealing structure
IP safety rate is IP68
The sealing method adopts screw pressure
This model is suitable for different methods of branch connection, including branching of uncut cable.
It could be used for aerial, pole-mounting, wall-mounting and underground application.
The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.
Number of fibers:72
Length:420 mm ,Diameter:190 mm
Weight: 3.5kg
