20dBm Single Channel Fiber Optical Booster EDFA Amplifier for SDH Networks

EDFA Optical Amplifier for SDH Networks 20 dBm Output Single Channel Booster

Fiber-Mart SDH-EDFA-BA-O6 booster amplifier designed for the Synchronous Digital Hierarchy (SDH) applications which installed after the optical transmitter to increase transmission distance for single wavelength optical module system. The device features wide input power range from -10dBm to +6dBm, output power up to 20dBm and low noise figure. It also includes RS-232 computer interface.

This Rack mountable amplifier work by default in constant signal-gain mode, but they can be configured to constant total output-power mode. These units are used in long-hauls transmission applications, especially for PDH, SDH, SONET and optical Ethernet transmission application. Its ease-of-use and performance make the SDH-EDFA-BA-xx series the ideal solution for Access and Metro optical networks.

Features

• Service as a booster amplifier C-Band 1550nm

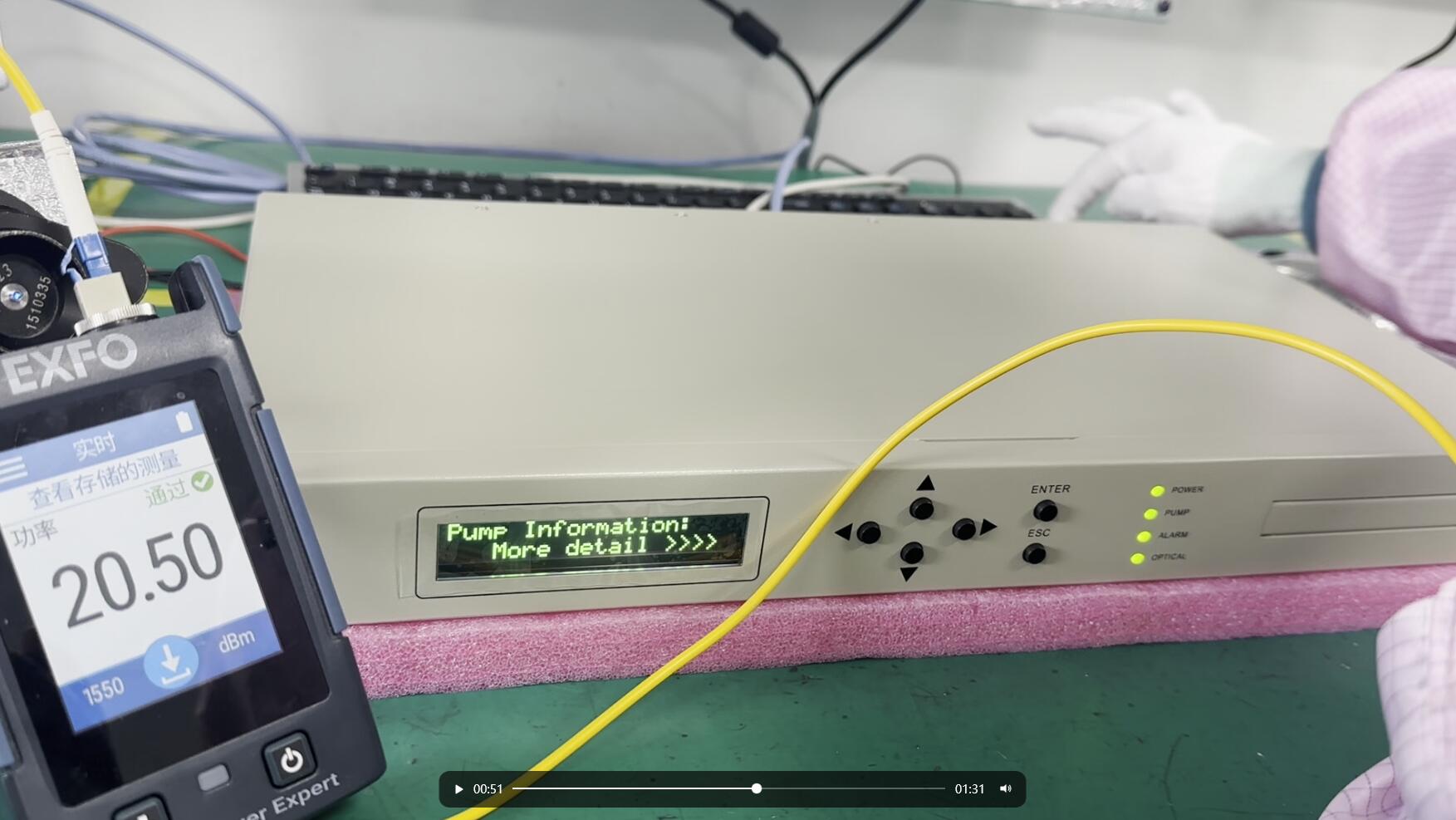

• Tunable output power: 20dBm
• Wide input power range: -10~+6dBm
• Low loise figure: typical is< 4.5dB
• Connectors: SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC and ST/APC connectors are available

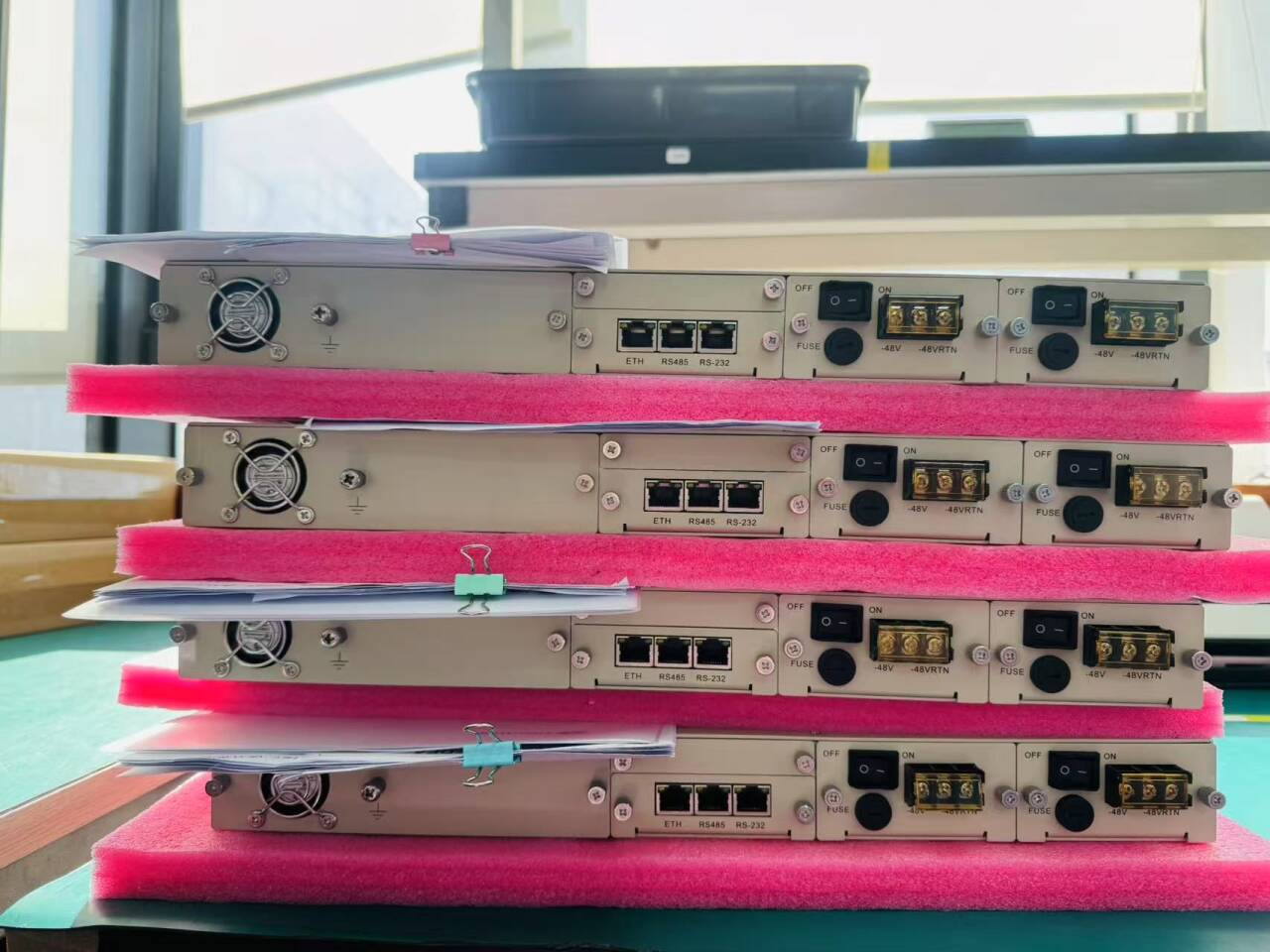

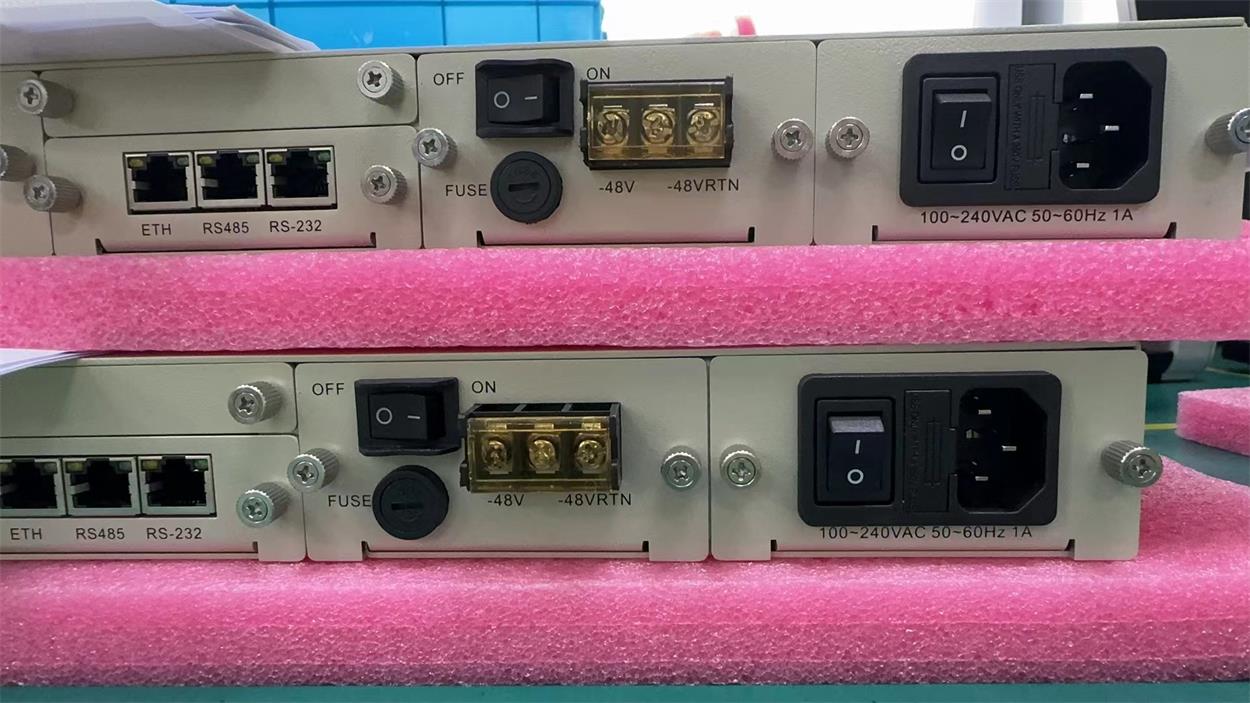

• Single or dual 110VAC, 220VAC, -48VDC, and/or 100V-240V power supply
• Serial interface comes with RS232, RS485
• 1U 19” rack mount structure for easy installation
• All performance compatible with BellcoreGR-1312-CORE request
• Use for Access and Metro optical networks
• Works with point-to-point applications
• High stability and reliability
• 3 years warranty
• 10 years of operation life
• OEM is available

Highlights

• Hot Swap Network Management Agent
• SNMP network management interface: RJ45
• Support Telnet for optional
• ASE noise filter & ASE suppression filters
• High Precise ACC (automatic constant current) Circuit as default, if you need other circuit, please contact at [email protected]
• ATC (automatic temperature control) function

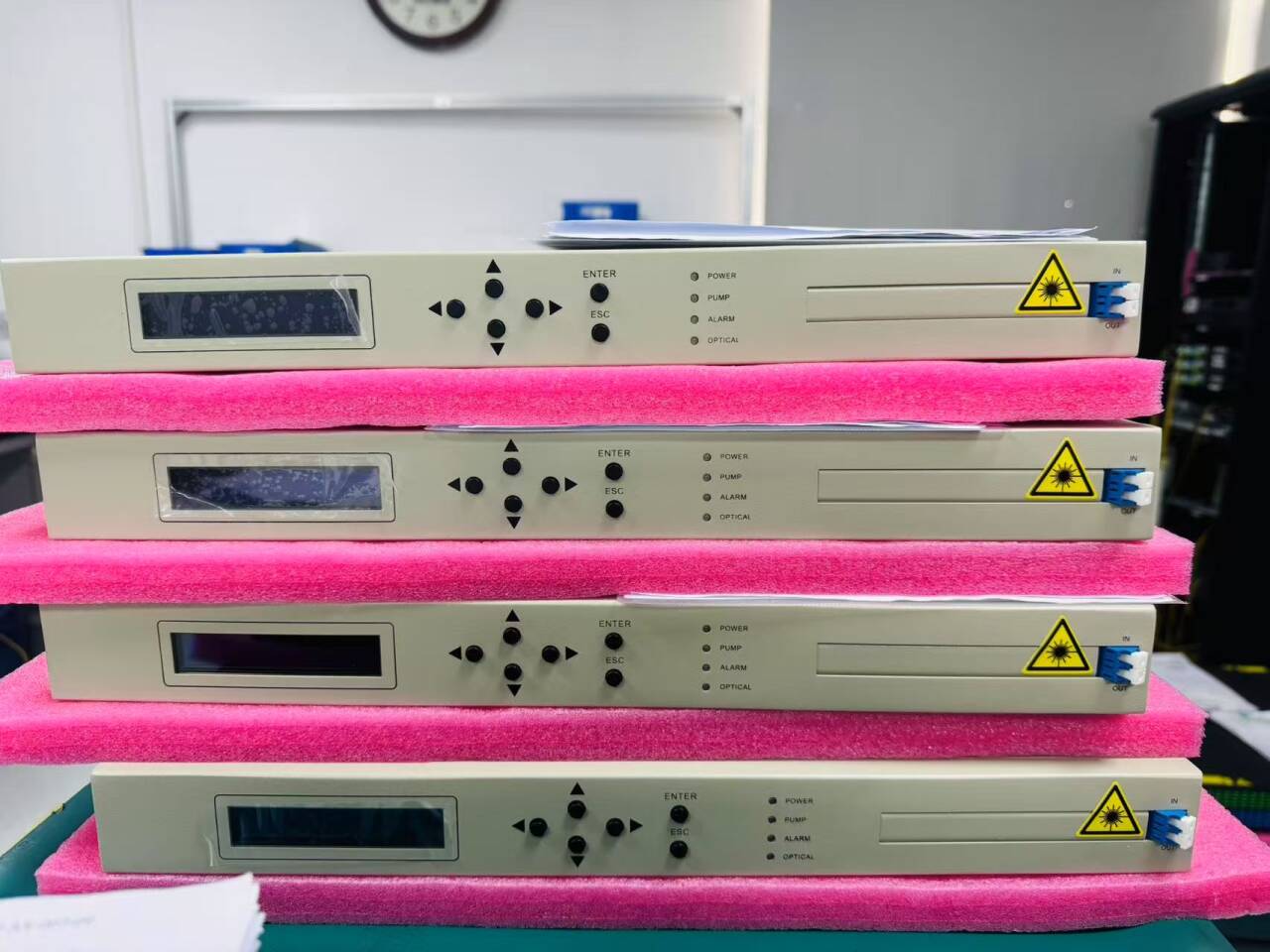

• Offering status appearance and diagnosing fault with LCD

Mechanical Structure

Structure Example

NOTE:

• The SDH EDFA from Fiber-Mart including 1+2+3.

(1): Customer optional
(2): Pre-Amplifier: input power –35~-25dBm; Inline-Amplifier: input power –25~-10dBm, Booster: input power –10～+6dBm
(3): No condensation
