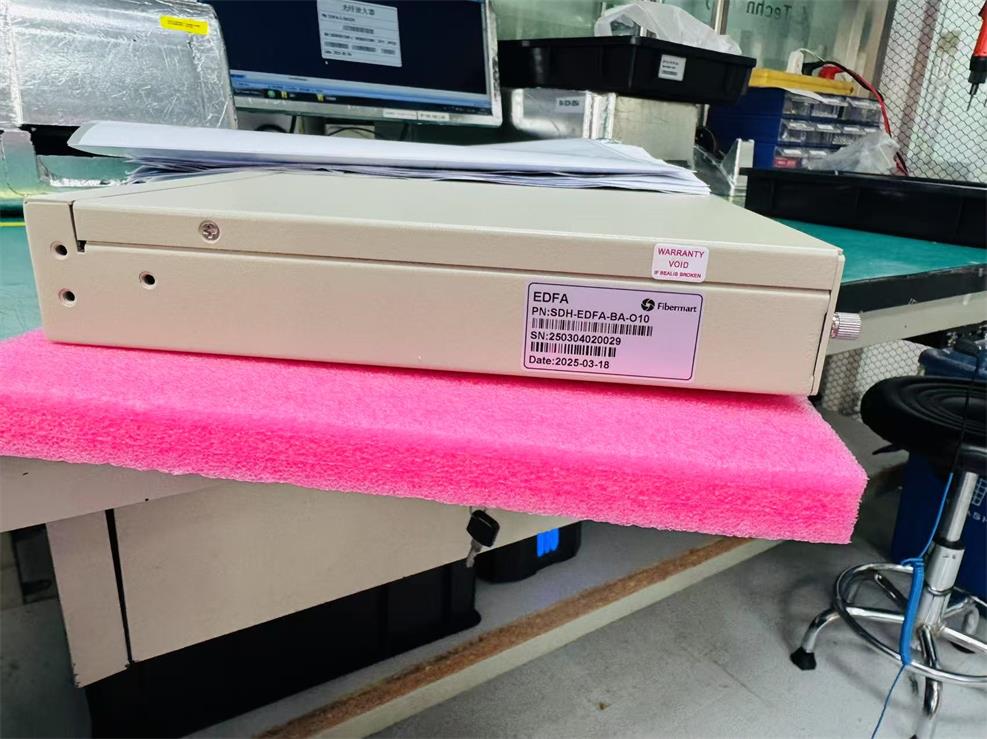

10dBm Output Single Channel Booster EDFA Optical Amplifier for SDH Networks

Product Item: #521
P/N: SDH-EDFA-BA-O10
US$1,062.00

Please Choose:







( Order Today, Ship before 08/01/2021, from U.S. or HK )
  • Description
  • Support
  • FAQ
  • Tags:

EDFA Optical Amplifier for SDH Networks 10 dBm Output Single Channel Booster



Fiber-Mart SDH-EDFA-BA-O6 booster amplifier designed for the Synchronous Digital Hierarchy (SDH) applications which installed after the optical transmitter to increase transmission distance for single wavelength optical module system. The device features wide input power range from -10dBm to +6dBm, output power up to 10dBm and low noise figure. It also includes RS-232 computer interface.




This Rack mountable amplifier work by default in constant signal-gain mode, but they can be configured to constant total output-power mode. These units are used in long-hauls transmission applications, especially for PDH, SDH, SONET and optical Ethernet transmission application. Its ease-of-use and performance make the SDH-EDFA-BA-xx series the ideal solution for Access and Metro optical networks.



Features

  • Service as a booster amplifier C-Band 1550nm
  • Tunable output power: 10dBm
  • Wide input power range: -10~+6dBm
  • Low loise figure: typical is< 4.5dB
  • Connectors: SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC and ST/APC connectors are available
  • Single or dual 110VAC, 220VAC, -48VDC, and/or 100V-240V power supply
  • Serial interface comes with RS232, RS485
  • 1U 19” rack mount structure for easy installation
  • All performance compatible with BellcoreGR-1312-CORE request
  • Use for Access and Metro optical networks
  • Works with point-to-point applications
  • High stability and reliability
  • 3 years warranty
  • 10 years of operation life
  • OEM is available



Highlights

  • Hot Swap Network Management Agent
  • SNMP network management interface: RJ45
  • Support Telnet for optional
  • ASE noise filter & ASE suppression filters
  • High Precise ACC (automatic constant current) Circuit as default, if you need other circuit, please contact at [email protected]
  • ATC (automatic temperature control) function
  • Offering status appearance and diagnosing fault with LCD



Mechanical Structure



Structure Example


NOTE:


  • The SDH EDFA from Fiber-Mart including 1+2+3.

Parameters Symbol Min Typ Max Unit
Operation Wavelength λc 1530 1550 1562 nm
Saturated output power (1) Po     10 dBm
Input power (2) Pi -10   6 dBm
Gain G ------   ------ dB
Noise Figure NF   4.5   dB
Input Isolation ISOi 30     dB
Output Isolation ISOo 30     dB
Input pump leakage PumpLin     -35 dBm
Output pump leakage PumpLout -45   -45 dBm
Return Loss RL     -45 dB
Polarization Dependent Gain PDG     0.3 dB
PMD PMD     0.5 ps
Operation Temperature Tw -5   60
Storage Temperature Ts -40   80
Humidity (3)   10   85 %
Power Voltage Vps 85/170 110/220 132/264 VAC
Power Consumption P     18 W
Serial interface RS232, RS485
Power supply 110VAC, 220 VAC, -48VDC, or 100V-240V
Connectors Simplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available
Warranty 3 years

(1): Customer optional
(2): Pre-Amplifier: input power –35~-25dBm; Inline-Amplifier: input power –25~-10dBm, Booster: input power –10~+6dBm
(3): No condensation




If any option which is not indicate in your Ordering, please write your option or request in your ORDER to Fiber-Mart, and contact with us.
