Cat8 Patch Cable Snagless Shielded (SFTP) PVC CM Ethernet Network, Off-White 20ft (6.1m)

Press Esc key to close this popup
  • Cat8 Patch Cable Snagless Shielded (SFTP) PVC CM Ethernet Network, Off-White 20ft (6.1m)

Cat8 Patch Cable Snagless Shielded (SFTP) PVC CM Ethernet Network, Off-White 20ft (6.1m)

Product Item: #16870
P/N: C8-SFTPSGPVCOW-6.1M
US$9.60



Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Cat8 SFTP Snagless Shielded Ethernet Network Patch Cable, 28AWG, 25/40GBase-T



Cat8 network patch cable is the cost-effective solution for indoor data center applications, supporting up to 25/40GBase-T and 2000MHz within 30 meters of cable. And it is fully backward compatible with all the previous categories.

The Fibermart cat8 patch cables conductor apply Oxygen-free Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CMX, which is durable, flame-retardant, resistant to bending.

Product Specifications

Cable Type Cat8 Snagless Shielding Type Shielded (SFTP)
Cable Jacket PVC CMX (Round) Length 3ft (0.9m) (Including Plugs)
Conductor Material Oxygen-free Copper Conductor Type Stranded
Data Rate Support 25/40GBase-T Standard Bandwidth 2000MHz
Gauge (AWG) 28 (7/0.12mm) Cable Outer Diameter (mm) 6.2 ± 0.3
Max Transmission Distance 30m Twisted Pairs 4 Pairs
Wire Scheme T568B, Straight Standard ISO/IEC 11801, ANSI/TIA-568.2-D
Operating Temperature -20 to +75°C (-4 to 167°F) Installation Temperature -10 to +50°C (14 to 122°F)

Quality Testing Program





Quality Certifications


Product Highlights

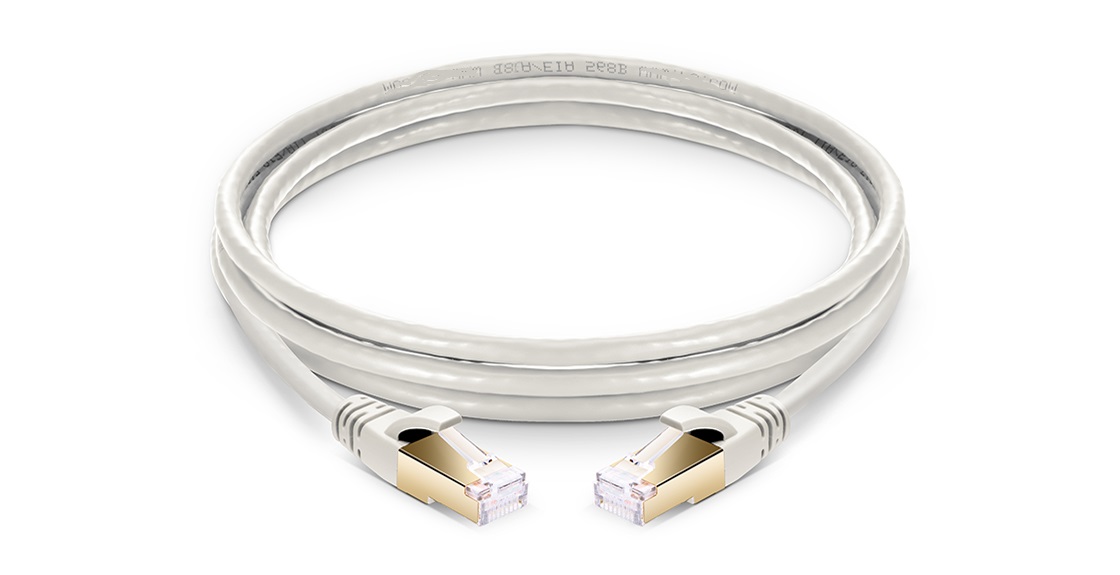

Cat8 Ethernet Patch Cable for 25/40G Network
  • Ideal for switches, servers, patch panels, or other equipment
  • RJ-45 plugs with 50-micron gold-plated connectors
  • Easy to plug and unplug in high density environment.
Cat8 Patch Cables Cat8 Ethernet Patch Cable for 25/40G Network

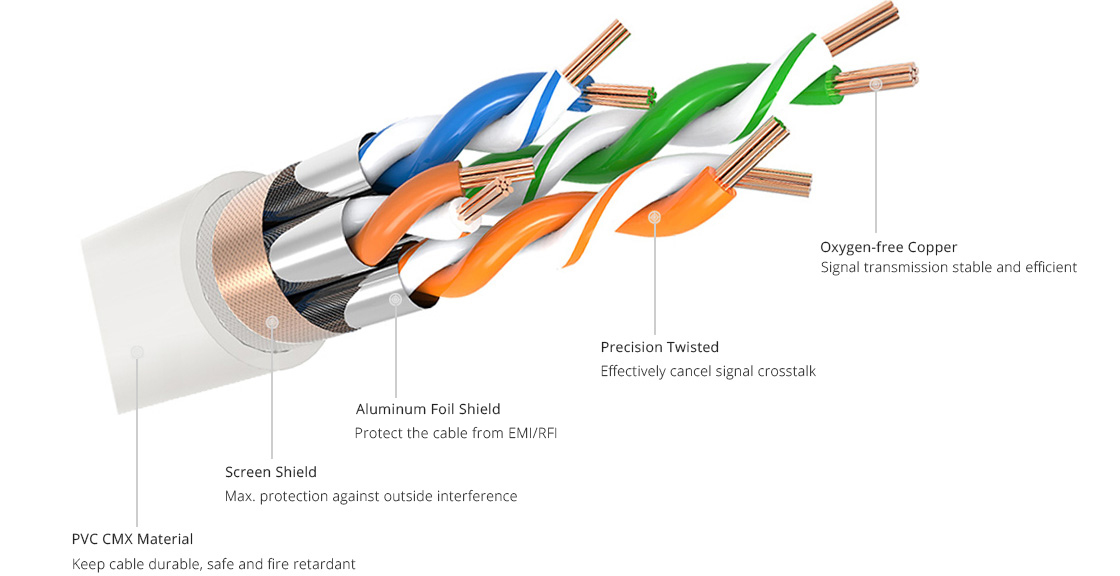

Precision Twisted SFTP Cable

8 cores are twisted in 4 pairs that was wrapped by foil and braiding shielding. The precise twisting can effectively counteract the signal crosstalk between the pairs, ensuring the stability of signal transmission.

Cat8 Patch Cables Precision Twisted SFTP Cable

Excellent Performance Test

Fibermart cat8 patch cables 100% pass the Fluke Channel Test and deliver specified testing report, in which include NEXT, return loss, ACR-F as well as ACR-N. The report indicates every patch cable is of high quality and performance.


Cat8 Patch Cables Excellent Performance Test

Copper Cabling Solution

Widely used in data centers, network cabinets, offices to connect any data transmission equipments, such as PoE switches. Structured cabling solutions help you design, deploy, and even maintain an efficient and flexible data circumstance.
