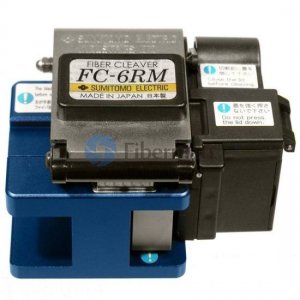

FC-6RM-C Mass Fiber Precision Automatic Blade Rotation Cleaver with Scrap

Unprecedented Precision Speed Performance and Reliability characterize Sumitomo Electric's new FC-6RM-C mass fiber automatic blade rotation cleavers. The FC-6RM-C is the industry's 1st and only automatic blade rotation cleaver for high precision cleaves of 1 to 12 fibers.

For user versatility, these precision cleavers also feature user selectable blade rotation options, backed by an impressively long blade life. The FC-6RM-C includes a convenient scrap collector.

Key Features

Industry's 1st and Only 1 to 12-Fiber Ribbon Cleaver with Automatic Blade Rotation
FC-6RM-C Includes Scrap Collector
Ideal Cleaver for High Volume Precision Cleaving Applications in Any Environment
Precision Blade Features 24 Blade Positions with 2,000 Cleaves per Position
Compatible with All Sumitomo Electric Fusion Splicers
User Selectable Blade Rotation Options Include: Automatic Blade Rotation with Each Fiber Cleave,No Rotation, and single Position Advance
48,000 Consecutive Fiber Cleaves Without User Manually Rotating the Blade or Adjusting Height
RoHS Compliant

Accessories

Description	Part #	Qty.
Single Fiber Adapter (250μm & 900μm)	FC6-ADAPTER	1 ea.
Fiber Scrap Catcher	FC6-CATCHER	1 ea.
Cleaver Blade	FCP-7RBL	1 ea.

Specification

Model	FC-6RM-C	FC-6RS	FC-6RS-C
Fiber Diameter	0.125mm
Fiber Count/Size	Single Fiber and Up to 12-Fiber Ribbon	Single Fiber (for Fiber Coating 250-900µm)
Cleave Length	10mm (For Ribbon) 5 - 16mm (for fiber coating 250µm) 10 - 16mm (for fiber coating 900µm)	5 - 16mm (for fiber coating 250µm) 10 - 16mm (for fiber coating 900µm)
Dimensions/Weight	63(W)×63(H)×76(D)mm/380g (FC-6RS) 100(W)×63(H)×81(D)mm/420g (FC-6RM-C/FC-6RS-C)
Typical Blade Life	48,000 Fiber Cleaves With No Adjustment

Model	FC-6RM-C	FC-6RS	FC-6RS-C
FiberDiameter	0.125mm
FiberCount/Size	SingleFiber andUpto12-FiberRibbon	SingleFiber (forFiberCoating250-900µm)
CleaveLength	10mm(ForRibbon) 5-16mm (forfibercoating250µm) 10-16mm (forfibercoating900µm)	5-16mm (forfibercoating250µm) 10-16mm (forfibercoating900µm)
Dimensions/Weight	63(W)×63(H)×76(D)mm/380g(FC-6RS) 100(W)×63(H)×81(D)mm/420g(FC-6RM-C/FC-6RS-C)
TypicalBladeLife	48,000FiberCleavesWithNoAdjustment
