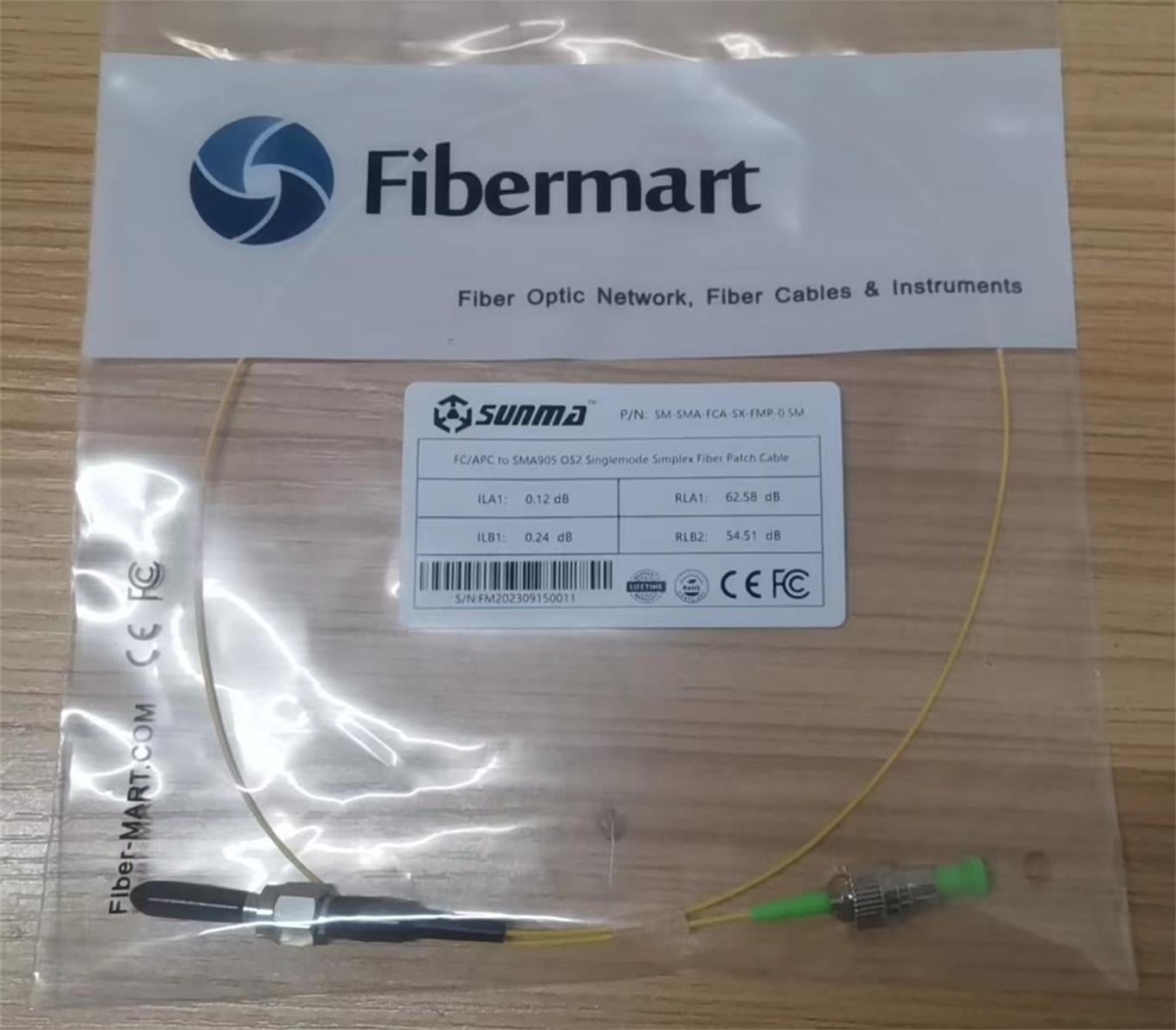

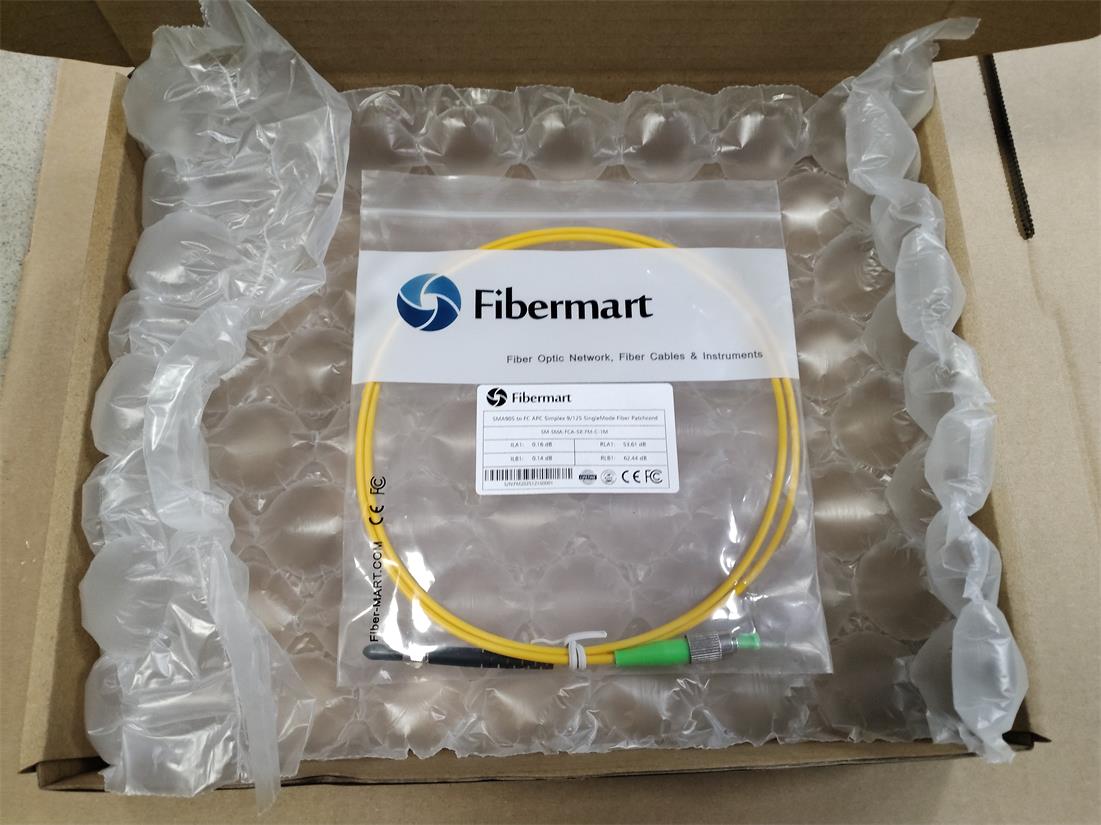

SMA905 to FC APC Simplex 9/125um Singlemode Fiber Patchcord

The 9/125um single-mode fiber patch cords with SMA905 connectors meet TIA and IEC compliant, and all cables are 100%optically tested for insertion loss to ensure high quality. It is widely used for the following areas:

Data Communication Laser Power DeliveryNear-IR SpectroscopyIndustrial and Military applicationAutomation and Programmable Logic Control system

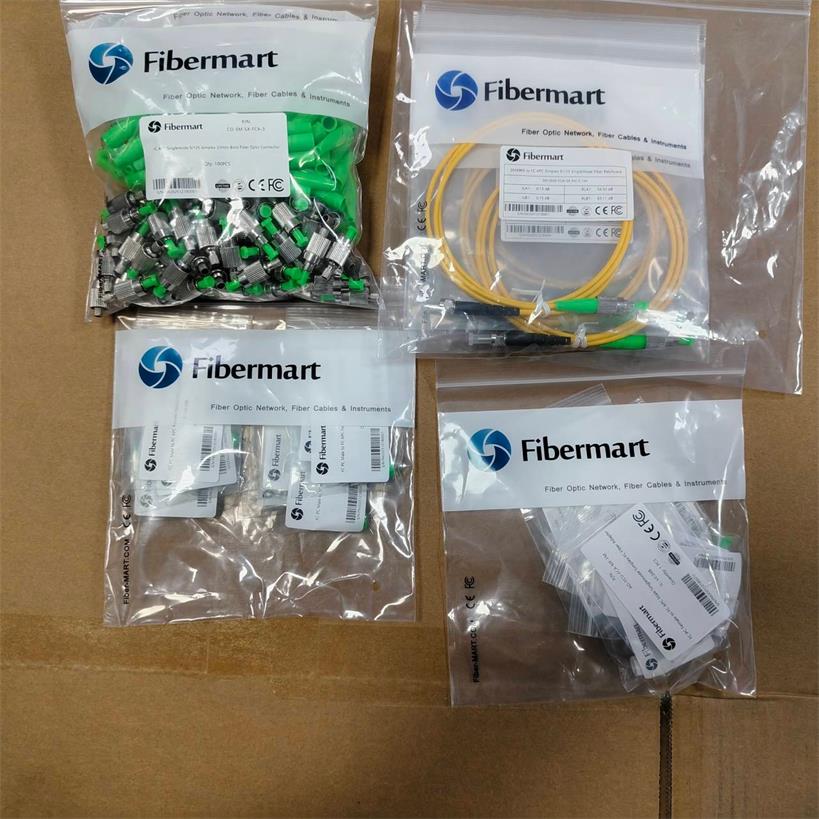

Fiber-MART also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Cable Details

Fiber Mode: 9/125um Single-mode	Insertion loss: 0.3dB
Connector: SMA905 to FC APC	Wavelength: 650nm
Numerical Aperture: 0.4-0.5NA	The Min bending radius: 10D
Out-Track: 2.0mm/3.0mm/2.5mm	(D: Optical Fiber Core Diameter)

How to correctly choose between PVC, LSZH and OFNP

PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table.
It is also work for vertical runs if the building features a contained ventilation system running through the duct work.
LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion.
It is same to PVC cable for horizontal runs between the table.
OFNP Cable: OFNP cable is a space within the building created by building components, designed for the movement of environmental air, complies with the NFPA fire safety.
It is usually work for vertical runs between floors.

SMA905 Connector Structure

1.The difference between metal ferrule and zirconia ferrule:

2.Two types of metal ferrule (with or without groove):

3.SMA905 connector with extended tailstock:

Notes:
1. The default ferrule is Metal Ferrule, the Zirconia Ferrule can be customized.
2. The default size standard of Inner Hole is 127um, other size standards can be customized.

Specifications

OVERVIEW
The Numerical Aperture Of the Quartz Fiber		0.22-0.37
Fiber Diameter (mm)		0.2	0.3	0.4	0.5	0.6	0.65	0.8
Minimum Bending Radius		10D (D: Optical Fiber Core Diameter)
Fiber Cor (Coating Layer)		1:1.05/1:1.4
Numerical Aperture		0.21-0.37
Transmission (%/m0)	Transmission (0.20-0.4um)	85-98
	Visible Light (0.4-0.7um)	97-99
	Near-Infrared (0.76-1.6um)	90-99
	Heliun-Neon (0.6328um)	99
	YAG (1.06um)	98
	Argon (0.5145um)	98
Transmission Power		>130w (Fibre [email protected])

Make To Order

Connector Type	Inner Hole Size	Core Material	Concentricity	Roundness	Tailstock Of Connector	Bare Fiber Clamp	Cable Length
Metal ferrule (Default) Zirconia ferrule	127μm (Default) Custom	Stainless steel Cupronickel	≤3.0μm	≤2.0μm	Standard (Default) Lengthen (Custom)	Without (Default) With	1m~999m Others
