SMA905-ST Duplex OM2 Fiber Patch Cable

SMA905-ST Duplex OM2 50/125 Fiber Patch Cable

The SMA-905 fiber optic patch cord, also known as FMMA connector, was one of the First fiber optic interconnect system that gained industry wide acceptance.SMA905 fiber patch cords make use of threaded connections and is still widely used for military, industrial, medical and Surgical applications and laser systems because of their low cost multimode coupling. It features simple termination and Assembly, and is TIA and IEC compliant. SMA 905 multimode connectors are available with stainless alloy or stainless steel ferrules.

Connector Features

• 1-4- 36 - UNS thread locking mechanism
• 3.175 mm cylindrical drivepipe
• Core diameter：0.126mm 0.23mm
• The minimum bending radius:10D（D：optical fiber Core diameter）
• Numerical Aperture：0.4-0.5na
• Out-Track：2.0mm/3.00mm/2.5mm
• Insertion loss：0.5db
• Wavelength：650nm

Applications

• Transmission with low loss, high transmission rate, high precision
• Laser surgery
• Photodynamic Therapy
• Spectral measurement
• Laser bonding
• Illumination
• Sensor

Specifications


Make to Order


Notes:
1 The default ferrule of the connector is Metal Ferrule,please post a inquiry for Zirconia Ferrule.

2 The common size standard of Inner Hole is 127+3/-0μm,please kindly enquiry us for other size standards.

Special Customization Requirements for High Power SMA905-SMA905 Duplex OM4 Dia2.5mm Fiber Patch Cable

Notes: Please kindly contact us at [email protected] for your special requirements of High Power SMA905-SMA905 Duplex OM4 Dia2.5mm Fiber Patch Cable according this specifications sheet.


HPSMA905 connector with extended tailstock

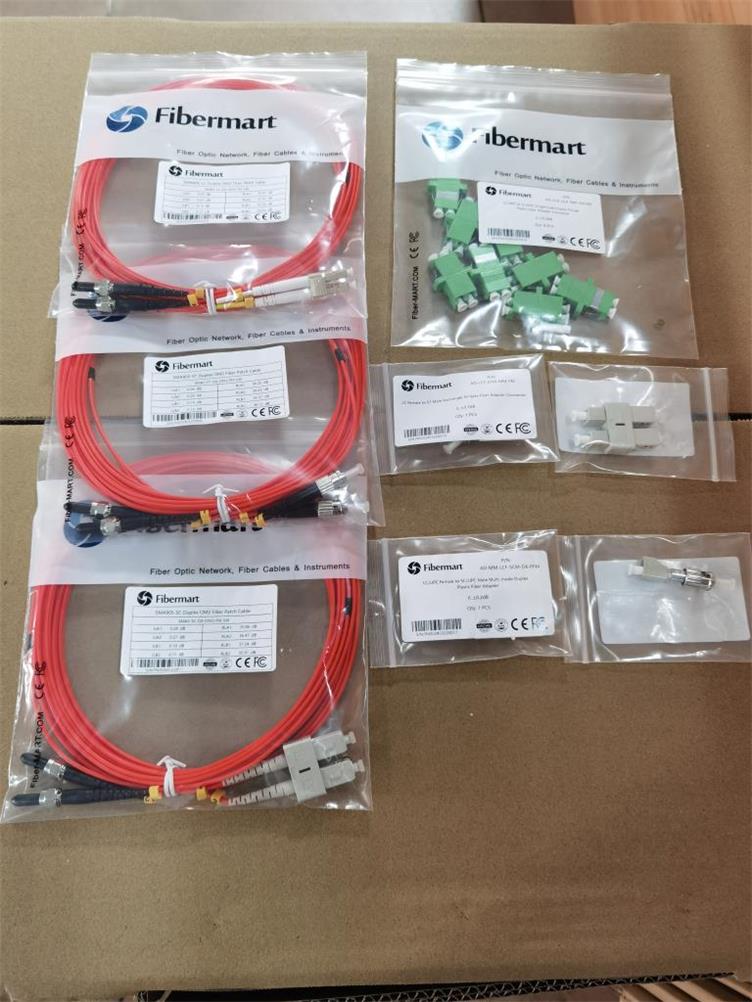

Sample Pictures

Buy our SMA905 Fiber Patch Cable with your confidence. Fiber-Mart also can work with your any customization requirements. You can buy SMA905 Fiber Patch Cable with any connectors or lengths. Let Fiber-Mart be your custom fiber optic solution.
