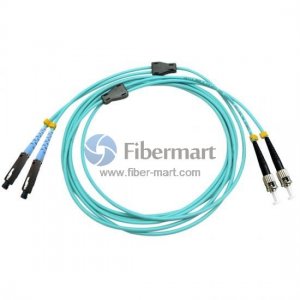

ST-MU Duplex OM4 Multimode Armored Fiber Patch Cable

ST-MU Duplex OM4 50/125 Mulitmode Armored Fiber Patch Cable

Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.
10G fiber optic patch cables provide 10 gigabit data transfer speeds in high bandwidth applications and they are 5 times faster than standard 50um fiber cable. Works with both VCSEL laser and LED sources. Our 10G fiber optic patch cables are 100% optically tested for maximum performance. We have all lengths and connectors available.
And for OM3 50/125 Mulitmode Armored Fiber Patch Cable and OM4 50/125 Mulitmode Armored Fiber Patch Cable, their main difference are as following:
A. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig /second link distances of up to 550 Meters (compared to 300M with OM3).
B. The effective modal bandwidth for OM4 is more than double that of OM3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.
Warm Tips:The default fiber diameter for the cable is 3.0mm,if you'd like to customize other types as 0.9mm,2.0mm,please kindly enquiry us. (The diameter is refer to the thickness of the cable,the size is able to match the corresponding equipment port.)

Key Features

• ST-MU Connectors
• Multimode Armored duplex fiber optic cable
• Complete with Lucent Technologies water blue jacket
• Bandwidth transmitting rates up to 10 gigabits
• All of our armored fiber optic patch cables feature the high degree connectors
• 100% optically tested to ensure high performance
• With stainless steel tube inside the outer jacket

Specifications

• Connectors: ST to MU
• Micron: 50/125um
• Insertion Loss: <0.75dB maximum
• Return Loss: >35dB
• Operating Temperature: -40℃ to 80℃
• Length: 1 meter
• Color: Water blue
• Fiber class: OM4
