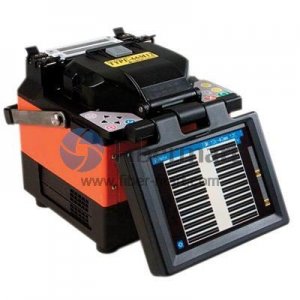

Sumitomo Type-66 Dual Heater Mass Fusion Splicer

Introduction

The Type-66 TuffCat mass fusion splicer features the industry's first Dual-Automatic-Splice Protection Sleeve Heater System - Sumitomo's exclusive patent-pending system. The dual heater system's simultaneous operation helps to eliminate squandered time waiting for a single heater system to complete its cycle. Instead, the streamlined splicing process reduces the bottle neck of "heater wait time" by 88% improving mass splicing efficiency and productivity in the field by 70%.

Features

1.Dual Independent Splice Protection Sleeve Heaters2.RoHS Compliant3.Optional Splice-on-connector Heater4.5.6" Switchable Color Monitor for Front to Back or Back to Front Operation5.Automatic Splice Start6.Automatic Heater Start7.Fiber Alignment Vibration clamps8.Extended Life Battery 140 Splices & Heater Cycles per Charge9.User-Friendly Menu Slection System with on Screen Assistance10.Spanish Language Option Standard11.24-Hour Technical Support via 888-SPLICER12.
Type 66-Kit-1 Components·T-66 Ribbon Fusion Splicer with Built-in Dual Heat Shrink Ovens·250um Fiber Holders·12ct Ribbon Fiber Holders·Heated Jacket Remover·Precision Cleaver·Spare Electrodes·AC Interface/Battery Charger·Battery Charger Cable·Battery·Power Cord·Shrink Sleeve Cooling Tray·Spare Electrodes·Hard Transit Case·V-Groove Brush·Manual

Specifications
Alignment Method	Fixed V-groove
RoHS	Compliant (engineered to be more environmentally friendly)
Fiber Requirement	Silica Glass
Number of Fibers	1-12
Fiber Placement	Fiber Holder System (Unified Holders for Type-25e/Type-66/Type-65)
Cladding Diameter	125μm
Coating Diameter	Ribbon 250μmSingle: 250 and 900μm
Typical Splice Time	20 seconds
Typical Splice Loss, Identical Fibers	SMF: 0.04dB, MMF:0.03dB, NZ-DSF: 0.07
Built-In Dual Splice Protection	Dual Independent Splice ProtectionSleeve Heater Sleeve Heaters
Heater Cycle Time	Heater 1 40 secondsHeater 2 40 seconds
Arc Test Compensation	Automatic
DC (Battery Operation)	Standard: 70 Splices & Heater CyclesExtended Life: 140 Splices & Heater Cycles
Arc Test	Automatically Compensates forEnvironmental Conditions
Interface	USB for PC InterfaceRCA Jack for External Monitor12 Volt DC Output for Accessories
Display Type	5.6 Inch Color TFT Low Glare High ResolutionColor Monitor
Display Positions	Multiple Positional for Front to Back/Back toFront Work Flow
Selectable Language Options	18 Language Options including Spanish
Lynx—CustomFit™ Splice-On Connector	Compatible
Splice Data Storage	2000 Splice Points
Size	150W x 150D x 150H mm (5.9W x 5.9D x 5.9H)
Weight	2.7 kg (5.95 lbs)
Power Requirement	Input: 100 to 240V AC; 5-/60Hz, 12V DC
Display	5.6 Inch TFT Low Glare High Resolution Color Monitor
Wind Protection	30 mph (15 m/s)
BatteryOperation	Standard 70 Splices & Heater CyclesExtended Life 140 Splices & Heater Cycles
