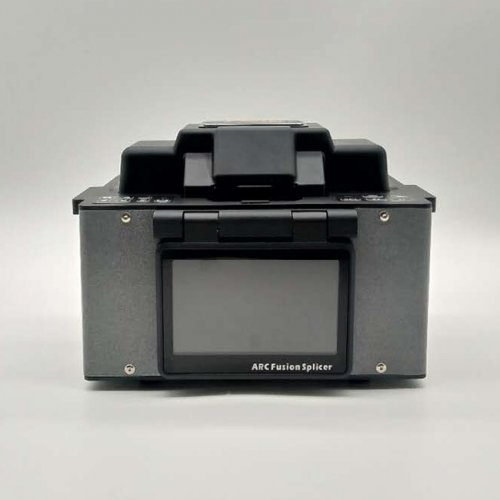

Polarization Maintaining (PM) Fiber Fusion Splicer S12PM

Product Item: #16887
P/N: PM-FM-S12PM
US$58,885.00



( Order Today, Ship before 08/03/2021, from U.S. or HK )
  • Description
  • Support
  • FAQ
  • Tags:

Fibermart Polarization Maintaining (PM) Fiber Fusion Splicer S12PM



Fibermart S-12 Polarization Maintaining (PM) fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is specially designed for  Panda ,bow-tie and elliptical fibers.



Features

* Core to core alignment, low splicing loss

* Endview and Profile observation and alignment

* Arc automatic calibration and splicing

* PM fiber 0, 45 and 90 degree alignment

* Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber



PM fusion splicer



Specifications



Applicable fiber

MMF(ITU-G651),SMF(ITU-G652), NZDS(ITU-G655),DS(ITU-G653)

PM fiber

Panda fiber and other type PMF, Bow-tie and Elliptical fiber

Cladding diameter

80~250µm

Coating diameter

5~900µm

Typical splice loss

SMF:0.02dB MMF:0.01dB NZDS,DS:0.03dB,PMF 0.05dB

Extinction ratio

32dB(PANDA)

Cleaved length

8~16mm(coating diameter<250um); 16mm(coating diameter:250-1000um)

Alignment method

Profile and Endface alignment

Splicing program

40 groups

Heating program

20group; Automatic heating

Operation mode

Manual/ Automatic

Typical splice time

Unpolarized fiber: 15seconds; PM Fiber:45seconds

Typical heating time

30 seconds for 60mm and 40mm shrinkable sleeves

Fiber Identification

Automatically Identify SMF,MMF,NZDS,DS,PANDA PMF

Fiber magnification

180X (X or Y view), 90X (X and Y view)

Viewing display

Dual high sensitivity camera, 5 inch 800*480 LCD Monitor

Data storage

4000 groups data records

Tension test

1.8~2.25N

Interface

GUI menu interface, easy for operation

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Terminals

USB 2.0 port, for software upgrading, records exporting

Operating condition

-10 ~ 50℃    Not frosted

Dimension/Weight

260mm(W)×202mm(D)×170mm(H) /5.1kg(incuding battery)
