Fiber Interferometer for Single Fiber Connector Endface 3D testing 0.5s auto focus

Automatic focus fiber optic Interferometer ML-AT for single fiber endface 3d testing including Radius of Curvature (ROC), Fiber Height, Apex Offset testings

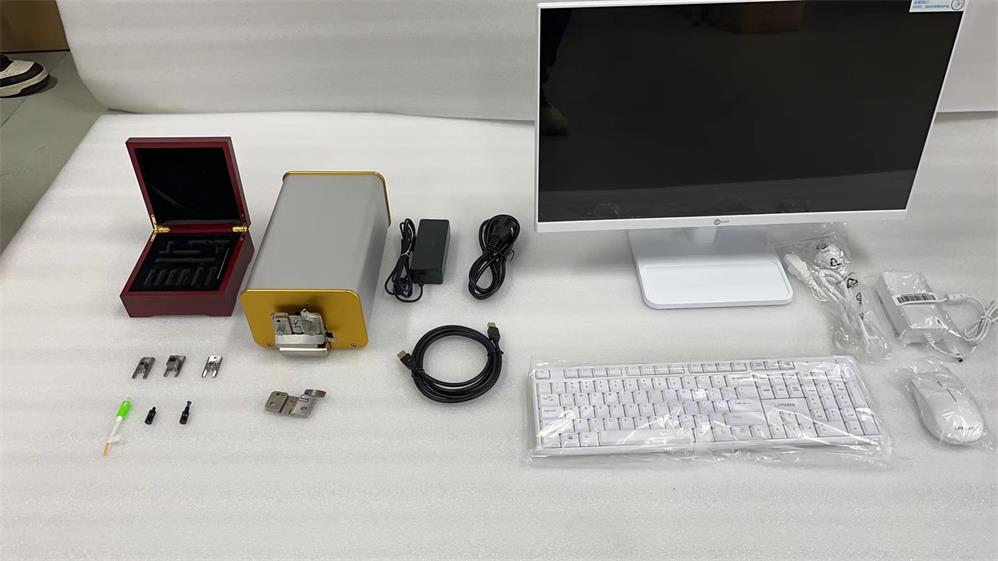

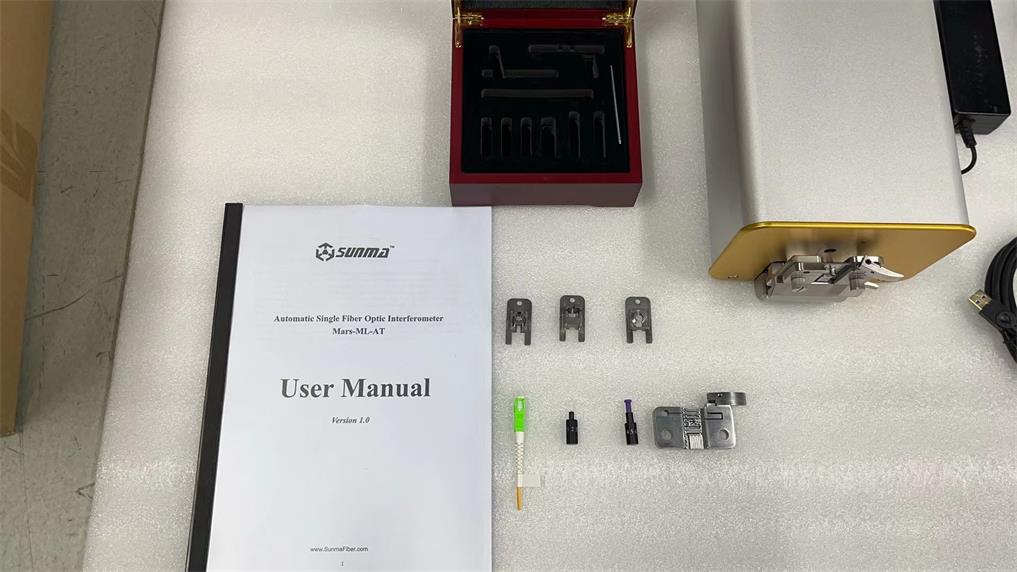

SunmaFiber-ML and SunmaFiber-AT Fiber Connector Optical Interferometer is a high precision instrument developed and manufactured by Wuhan Sunma Technology Co., Ltd. to measure the end face geometry of optical fiber connectors. It is used to measure standard fiber optic connectors such as SC/PC, SC/APC, FC/PC, FC/APC, ST, LC/PC, LC/APC, MU/PC connectors with diameter of 1.25mm or 2.5mm. Output parameters include Radius of Curvature (ROC), Fiber Height, Apex Offset, APC Angle and Key Angle, etc., which help to improve the end face polishing of fiber optic connectors, and lead to perfect transmission.

SunmaFiber-ML  Manual Focus Fiber Connector Optical Interferometer


SunmaFiber-AT  Auto Focus Fiber Connector Optical Interferometer



Key Features and Benefits:

1、Test result maintains a high degree of consistency to all other brand equipment.
2、Fast response of measurement in 0.5 second.
3、Precise data processing, with high accuracy measurement results.
4、Novel robust algorithm, accurate results even with contaminated ferrule surface

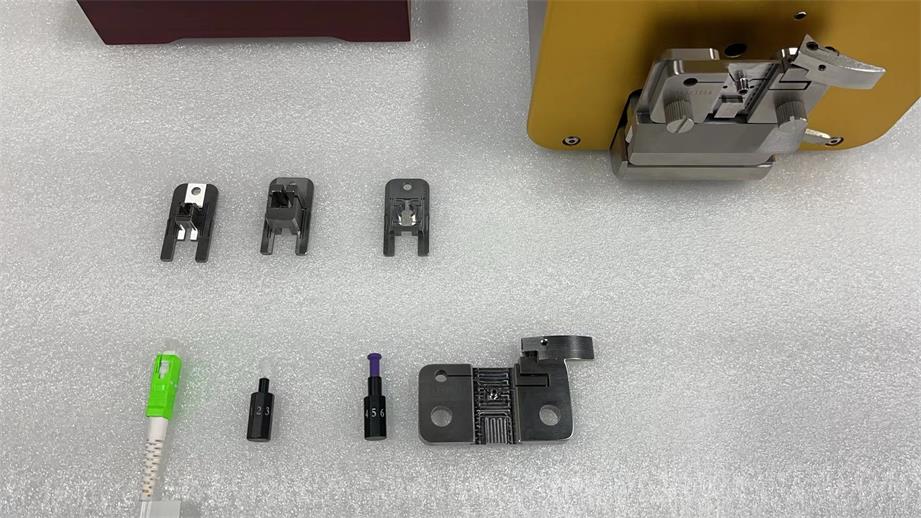

5、High-precision and long life fiber clamp.
6、Automatically generate three-dimensional map, fitting map which directly reflect the details of the optical fiber connector;
7、Automatically generate test reports and test data in Excel format, which is easy to manage and print;

Specification:

Measure Item Measurement Range Repeatability Reproducibility
ROC(mm) 3～∞ ±0.03 ±0.05
Fiber Height(nm) -160～160 ±2.0 ±3.0
Apex-Offset(um) 0～500 ±1.0 ±2.0
APC Angle(deg) 7～9* ±0.01 ±0.02
APC Key Angle(deg) ±1 ±0.02 ±0.03

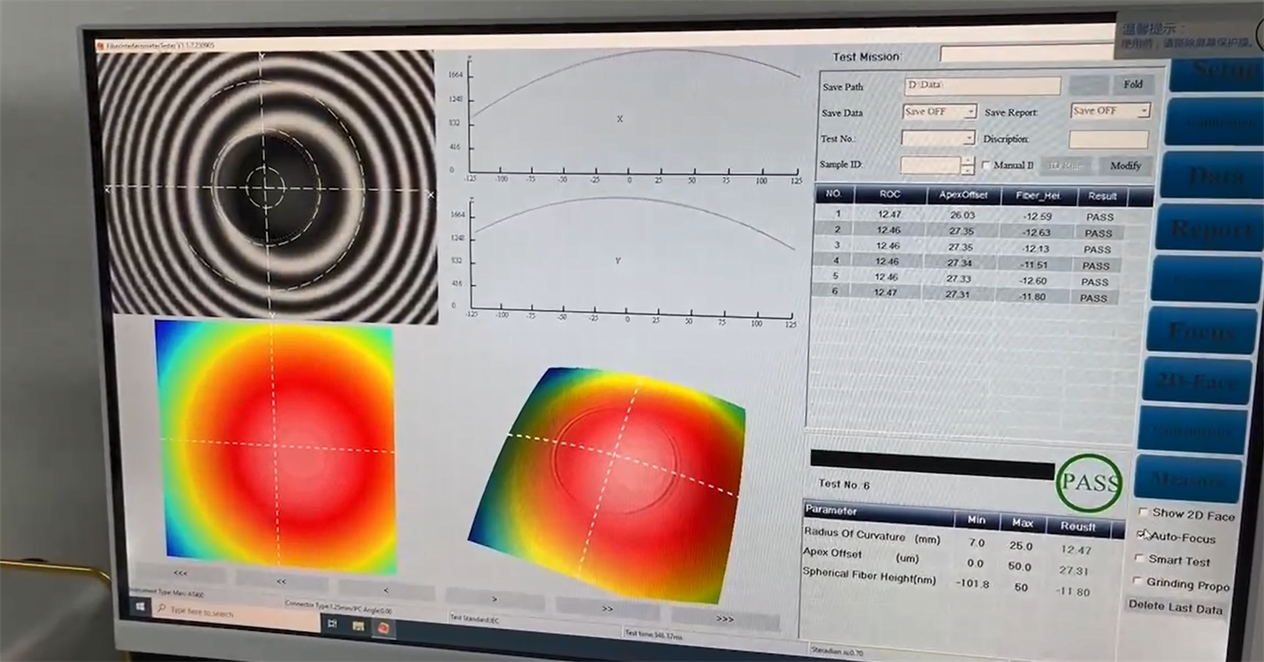

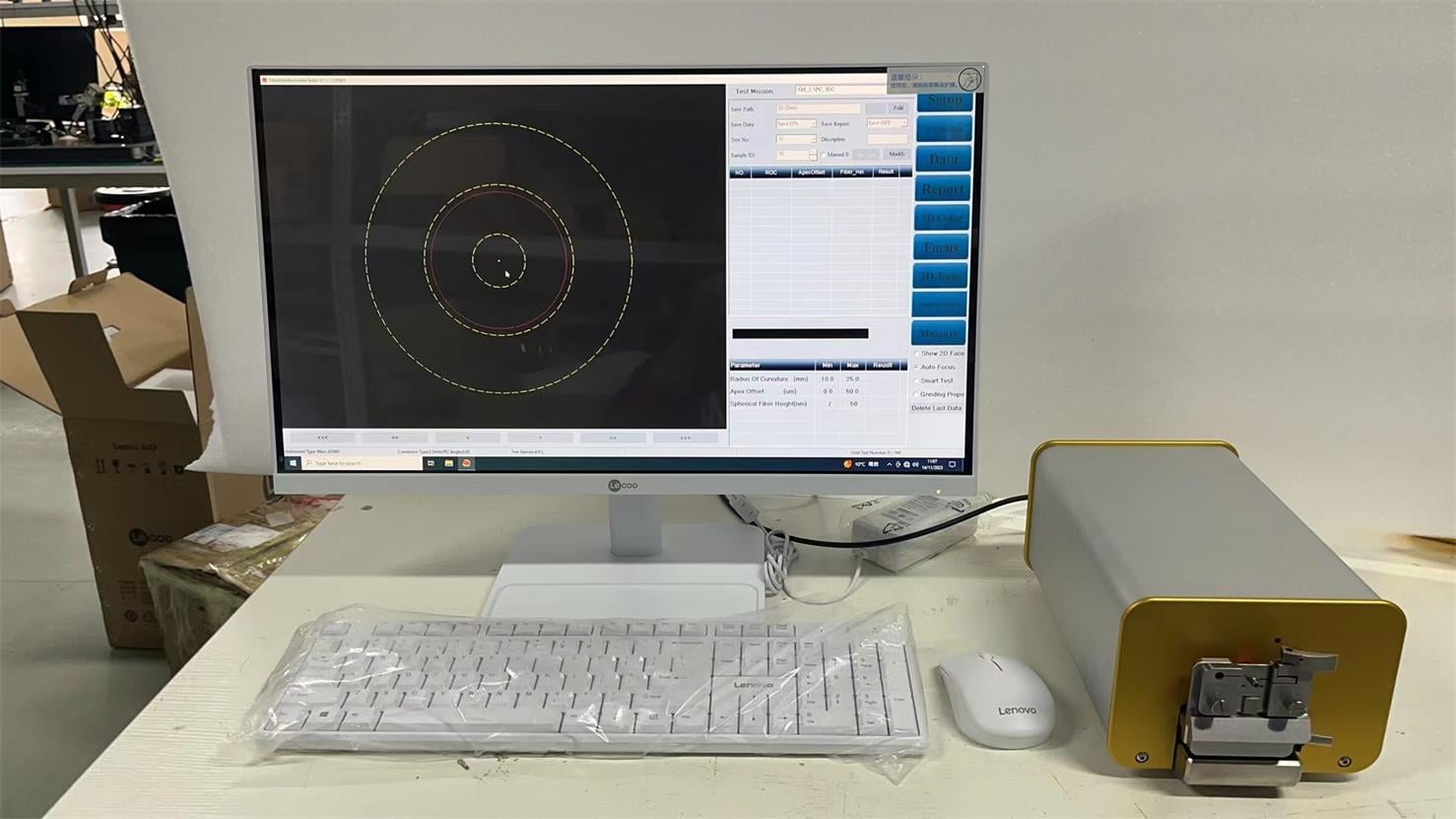

Software Interface In 3D Mode And Interferogram Mode：


Ferrule 3-D End Face Geometry Test And Show：


Concentricity test：


2D-Endface Show In two mode:
