DWDM OADM East-and-West 2 channels ABS Pigtailed Module Simplex

Simplex DWDM OADM for East-and-West Traffic

The Simplex DWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over dual fiber Simplex DWDM MUX & DEMUX link for East-and-West Traffic.

Fiber-Mart DWDM OADM ( DWDM/AD) modules are Dense Wavelength Division Multiplexing (DWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path.

Using high performance filter technology, the DWDM/AD is a passive optical add/drop multiplexer designed to optically add/drop one or multiple DWDM channels into one or two fibers. It is an ideal solution for Metro-Core, Metro-Access and Enterprises, comprise a family of flexible, cost-effective solutions that expand the bandwidth capacity of existing fiber in point-to-point, ring, or bus configurations' applications.

Add/drop channels are interfaced to any of Fiber-Mart DWDM transceivers on the equipment side, and we also provide optional port configurations such as: Monitor Port, 1310nm passband port and Express port according to customer request. Available in 100GHz or 200GHz (0.8/1.6nm), 19" Rack Mount, LGX module or Pigtailed ABS box packaging.

Front Panel Details

a

Common port:

Trunk input and output in both west and east traffic.
LC, SC, ST and FC connectors available.

b

Add/Drop port on west:

Add and Drop on west.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.

c

Add/Drop port on east:

Add and Drop on east.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.

NOTE:

Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
We also provide optional port configurations such as: Monitor Port, 1310nm passband port and Express Port for these multiplexers according to customer choice, need more details, please contact at [email protected]

Item Details

2 channels DWDM OADM
2 x Common ports for West and East traffic
All Add/Drop Channels for West and East traffic: 100GHz Grid (0.8 nm). Note: 200 GHz Grid (16nm) are also available on request.

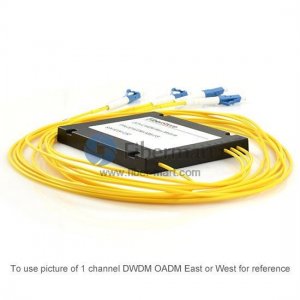

ABS box pigtailed housing
OADM complement to the express DWDM product line
Compliant to ITU-T G.657A1 DWDM standard
Protocol and rate transparent for applications up to 10Gbp
Metro distance, up to 80 km
Entirely passive device, no power supply needed
It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
Front panel is equipped with adapters according to customer choice (see options)
ISO 9001 manufacturing facility
