Corning SMF-28® Ultra 200 Single-mode 125/200±5um Optical Fiber per Km

Product Item: #17401
P/N: CORNING-SMF28-Ultra200
US$190.00



Order Today, Ship before 06/08/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Corning SMF-28® Ultra 200 Optical Fiber - Bare Fiber in Roll



"The price above is for one kilometer length"



Corning’s SMF-28® Ultra 200 optical fiber is a single-mode fiber with a reduced coating diameter that
leverages the latest technology of Corning® SMF-28® Ultra optical fiber. SMF-28 Ultra 200 shares the
same advanced optical performance as SMF-28 Ultra fiber and is designed for use in applications where
space is at a premium. SMF-28 Ultra 200 fiber enables maximized fiber count per cable and minimized
cable outer diameter while maintaining superior optical and mechanical performance. It has bend
performance that exceeds Recommendation ITU-T G.657.A1, and is compatible and fully compliant with
Recommendation ITU-T G.652.D.

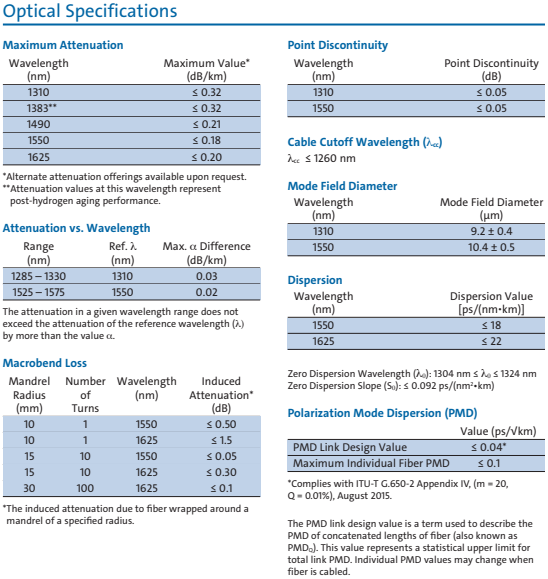

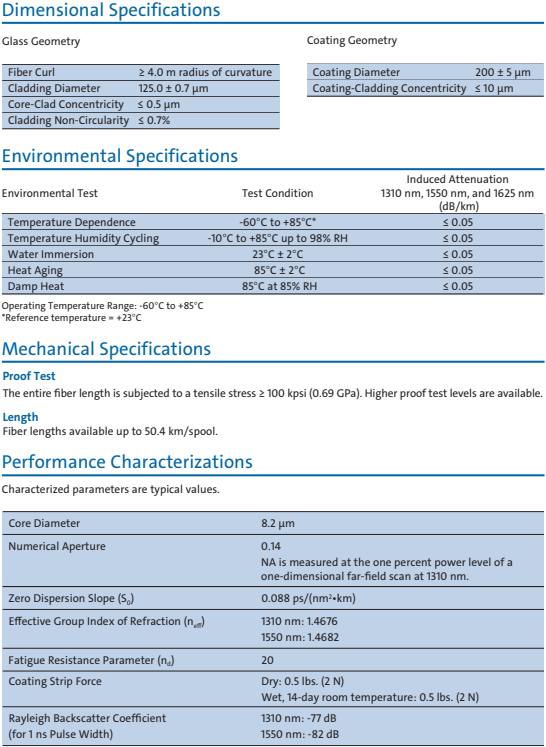

Key Specifications

Attribute Units Corning®
SMF-28® Ultra 200
fiber
ITU-T G.652.D / IEC
60793-2-50, type B1.3
ITU-T G.657.A1 / IEC
60793-2-50, type
B6_a1
Coating diameter
200 micron fibers   200 ± 5 200 ± 10* 200 ± 10*
Conventional diameter fibers   - (235 – 255) (235 – 255)
Coating-cladding concentricity error microns ≤ 10 ≤ 10* ≤ 10*
Attenuation
1310 nm dB/km ≤ 0.32 ≤ 0.4 ≤ 0.4
1383 ± 3 nm dB/km ≤ 0.32 ≤ 0.4 ≤ 0.4
1550 nm dB/km ≤ 0.18 ≤ 0.3 ≤ 0.3
1625 nm dB/km ≤ 0.20 ≤ 0.4 ≤ 0.4
Macrobend Loss (dB)
100 turns, 30 mm radius at 1625 nm  dB ≤ 0.01 ≤ 0.1 ≤ 0.1
1 turn, 10 mm radius at 1550 nm  dB ≤ 0.50 Not specified ≤ 0.75
1 turn, 10 mm radius at 1625 nm  dB ≤ 1.5 Not specified ≤ 1.5
Mode Field Diameter at 1310 nm microns 9.2 ± 0.4 8.6-9.5 ± 0.4  8.6-9.5 ± 0.4
Polarization mode dispersion (PMD)
Link Design Value (ps/√km) (ps/√km) ≤ 0.04 ≤ 0.20 ≤ 0.20
Maximum Individual Fiber PMD (ps/√km) ≤ 0.1 Not specified Not specified
*Published specified limits for 200 micron fibers. The values shown above are for un-colored fibers.




Customized Service :



● If you need any customized products or services, please write your request in Order Remarks, or send an email to [email protected]



Get Quote or Checkout Online :



● To request a Quote or Checkout to pay online, simply add items into your cart and select your preferred method.



Free Shipping & No Tariff :



● Online Order over US$200 is Free Shipping (Not included Heavy Items like Outdoor Cable, Outdoor Cabinet etc),

● For US customer, Fibermart covers all customs duty and fees - no additional tariff charges.



Shipping Time :



● FedEx : 2-4 business days
● UPS : 2-5 business days
● DHL : 2-6 business days
● Shipment by Sea : 20-25 business days



Payment Method :



● PayPal (Online)

● Credit / Debit Card (Online)

● ABA Routing (US Local)

● T/T Wire Transfer (International)



Returns & Warranty :



● 1-Year Warranty

● 60-Day Returns

● 60-Day Exchange

● Limited Lifetime Warranty.

   Read full Return & Refund Policy



Net Term & Credit :



● Fibermart accept Net 30 and Net 60 payment terms, Contact Us for Credit Account by submit a credit form.



Volume Discount :



● Fibermart offers discount prices for large-volume order, Contact Sales Team for more details.
