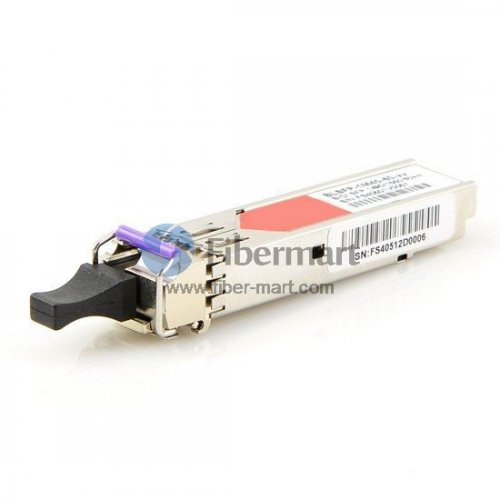

100BASE BX SFP 1490nmTX/1550nmRX BiDi SFP 60km Transceiver

Product Item: #421
P/N: BSFP-1M45-60FM
US$63.00

Please Choose:






Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

100/155Mbps 1490nmTX/1550nmRX BiDi SFP 60km Transceiver



BSFP-1M45-60

The SFP BIDI transceivers are small form factor pluggable module for IEEE 802.3ah 100BASE-BX and OC-3/STM-1 SONET/SDH single fiber applications by using 1490nm/1550nm transmitter and 1550 nm/1490nm receiver. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses a multiple quantum well A type/B type laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated B type/A type detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The SFP BIDI transceivers are designed to be compliant with SFF-8472 Multi-source Agreement (MSA).



Key Features

  • Support 155Mbps Data Links
  • 1490nm DFB Tx/1550nmRx
  • 60km with 9/125 µm SMF
  • Single 3.3V Power Supply and TTL Logic Interface
  • Hot-Pluggable SFP Footprint SC/LC Connector Interface
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • Compliant with SFP MSA Specification



Applications

  • SONET OC-3 /SDH STM-1
  • WDM Fast Ethernet Links



Datasheet



Part Number

Distance

Media

Port

Datasheet

SFP-1MT-1MFM 100m Cat5 RJ45
SFP-1M31-2FM

2km

MMF LC

SFP-1M31-10FM 10km MMF LC
BSFP-1M53-20FM 20km-BiDi SMF LC
BSFP-1M35-20FM 20km-BiDi SMF LC
SFP-1M31-20FM

20km

SMF LC
SFP-1M31-40FM

40km

SMF LC
SFP-1M55-80FM

80km

SMF LC
SFP-1M55-100FM 100km SMF LC
SFP-1M55-160FM 160km SMF LC



Quality Certification



Quality and standards are the foundation of Fiber-MART. we are dedicated to providing customers with outstanding, standards-compliant products and services. Fiber-MART has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.


Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.





Ordering Information

Part No. Data Rate (Mbps) Wavelength (nm) TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
BSFP-1M35-2 155 1310/1550 -20~-15 ﹤-30 2km MMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M53-2 155 1550/1310 -20~-15 ﹤-30 2km MMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M35-10 155 1310/1550     10km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M53-10 155 1550/1310     10km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M35-15 155 1310/1550 -15~-8 ﹤-28 15km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M53-15 155 1550/1310 -15~-8 ﹤-28 15km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M34-20 155 1310/1490     20km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M43-20 155 1490/1310     20km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M35-20 155 1310/1550     20km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M53-20 155 1550/1310     20km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M34-40 155 1310/1490     40km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M43-40 155 1490/1310     40km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M35-40 155 1310/1550 -5~0 ﹤-33 40km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M53-40 155 1550/1310 -8~-3 ﹤-33 40km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M45-60 155 1490/1550     60km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M54-60 155 1550/1490     60km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M45-80 155 1490/1550     80km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M54-80 155 1550/1490     80km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M35-80 155 1310/1550 0~+5 ﹤-34 80km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M53-80 155 1550/1310 0~+5 ﹤-34 80km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M45-120 155 1490/1550     120km SMF LC/SC Com./Ex./Ind. Yes/NO
BSFP-1M54-120 155 1550/1490     120km SMF LC/SC Com./Ex./Ind. Yes/NO

Notes

  • X means LC or SC connector.
  • xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear. The two characters are short for compatible brand.)



Packaging

  • Antistatic bag
  • Packed on pallets in a box(Default Customer Options)
  • Specific Labels as Request
  • Seperate white Box for each transceiver



OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiber-Mart provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiber-Mart in the world.

  • OEM/ODM order is available
  • We can supply BSFP-1M45-60 according to your requirements, and design BSFP-1M45-60 label and packaging for your company. We welcome any inquiry for customized BIDI SFP optical transceiver.



Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.



Save Cost By Buying BIDI SFP From Original Manufacturer Fiber-Mart Directly.

Fiber-Mart is an professional manufacturer & supplier of BIDI SFP transceivers. All of our BIDI SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee BIDI SFP transceivers to work in your system and all of our BIDI SFP transceivers come with a lifetime advance replacement warranty. If you have questions about BIDI SFP optics, please feel free to contact us at [email protected]. If you have questions about BIDI SFP optics, please feel free to contact us at [email protected]
