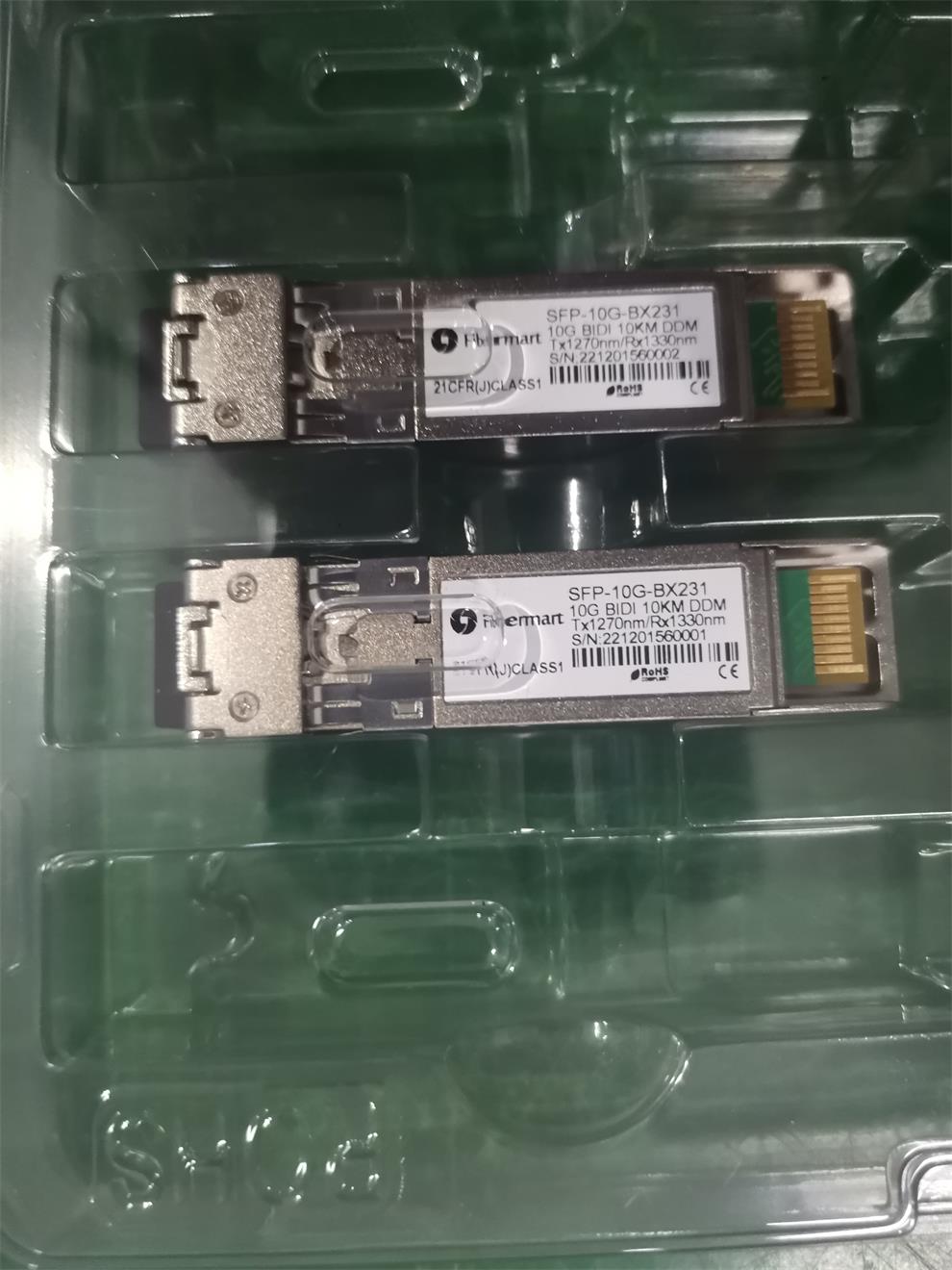

10GBASE BX SFP+ 1270nmTX/1330nmRX BiDi SFP+ 10km Transceiver

Press Esc key to close this popup
  • 10GBASE BX SFP+ 1270nmTX/1330nmRX BiDi SFP+ 10km Transceiver
  • 10GBASE BX SFP+ 1270nmTX/1330nmRX BiDi SFP+ 10km Transceiver
  • 10GBASE BX SFP+ 1270nmTX/1330nmRX BiDi SFP+ 10km Transceiver

10GBASE BX SFP+ 1270nmTX/1330nmRX BiDi SFP+ 10km Transceiver

Product Item: #586
P/N: SFP-10G-BX231
US$45.00

Please Choose:






Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

10GBASE 1270nmTX/1330nmRX BiDi SFP+ 10km Transceiver



BSFP-10G23-10

10km BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.



Key Features

  • Operating data rate up to 10.3Gbps
  • 1270nm DFB Transmitter/1330nm Receiver
  • Power budget 9dB at least
  • Single 3.3V Power supply and TTL Logic Interface
  • Simplex LC Connector Interface
  • Hot Pluggable
  • Power Dissipation < 1.5W
  • Operating case temperature Standard : 0°C to +70°C
  • Average Output Power:-5~0dBm
  • Receiver Sensitivity:-14dBm
  • Compliant with SFP+ MSA Specification SFF-8431
  • Compliant with IEEE 802.3ae 10GBASE-LR
  • Compliant with IEEE 802.3ae 10GBASE-LW
  • Built-in Digital Diagnostic Function



Applications

  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • Other Optical Links



Datasheet



Part Number

Distance

Wavelength

Port

Datasheet

SFP-10G-BX231

10km

T1270/R1330nm LC

SFP-10G-BX321

10km

T1330/R1270nm LC
SFP-10G-BX232

20km

T1270/R1330nm LC
SFP-10G-BX322

20km

T1330/R1270nm LC
SFP-10G-BX234

40km

T1270/R1330nm LC
SFP-10G-BX324

40km

T1330/R1270nm LC
SFP-10G-BX236 60km T1270/R1330nm LC
SFP-10G-BX326 60km T1330/R1270nm LC
SFP-10G-BX458 80km T1490/R1550nm LC
SFP-10G-BX548 80km T1550/R1490nm LC



Quality Certification



Quality and standards are the foundation of Fiber-MART.COM. We are dedicated to providing customers with outstanding, standards-compliant products and services. Fiber-MART.COM has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.





Ordering Information

Part No. Data Rate (Gbps) Wavelength (nm) TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
BSFP-10G23-10 ≤ 10 1270/1330 -5~0 ﹤-14 10km SMF LC Com. Yes
BSFP-10G32-10 ≤ 10 1330/1270 -5~0 ﹤-14 10km SMF LC Com. Yes
BSFP-10G23-20 ≤ 10 1270/1330 -2~3 ﹤-14 20km SMF LC Com. Yes
BSFP-10G32-20 ≤ 10 1330/1270 -2~3 ﹤-14 20km SMF LC Com. Yes
BSFP-10G23-40 ≤ 10 1270/1330 1~5 ﹤-15 40km SMF LC Com. Yes
BSFP-10G32-40 ≤ 10 1330/1270 1~5 ﹤-15 40km SMF LC Com. Yes
BSFP-10G23-60 ≤ 10 1270/1330 1~6 ﹤-20 60km SMF LC Com. Yes
BSFP-10G32-60 ≤ 10 1330/1270 1~6 ﹤-20 60km SMF LC Com. Yes
BSFP-10G23-80 ≤ 10 1270/1330 - - 80km SMF LC Com. Yes
BSFP-10G32-80 ≤ 10 1330/1270 - - 80km SMF LC Com. Yes

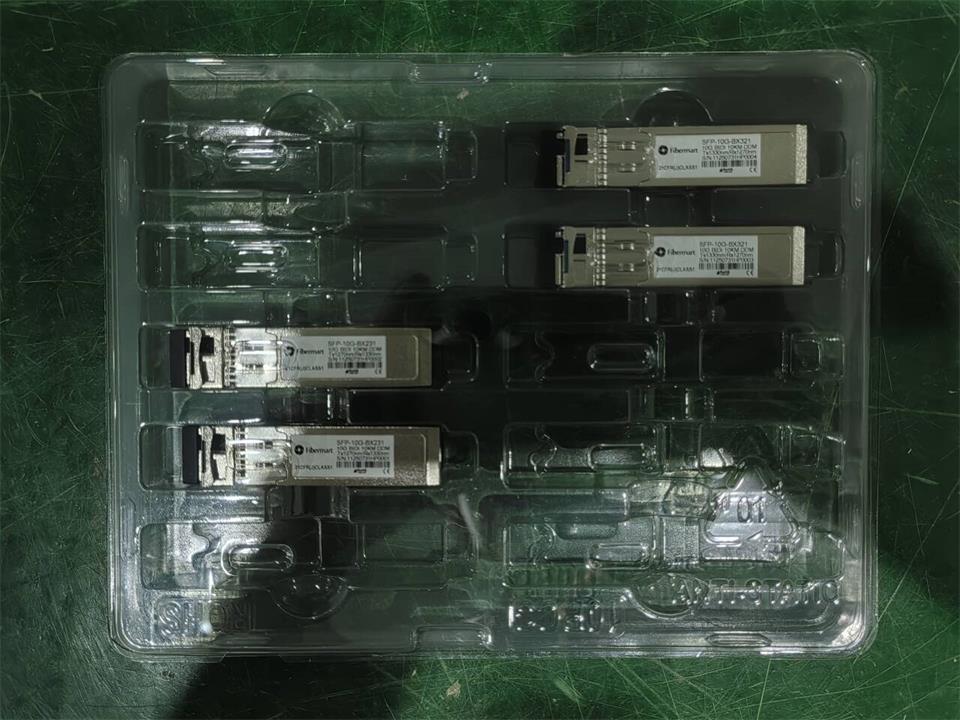

Packaging

  • Antistatic bag
  • Packed on pallets in a box(Default Customer Options)
  • Specific Labels as Request
  • Seperate white Box for each transceiver



OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiber-Mart provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiber-Mart in the world.

  • OEM/ODM order is available
  • We can supply BSFP-10G23-10 according to your requirements, and design BSFP-10G23-10 label and packaging for your company. We welcome any inquiry for customized 10G SFP+ BIDI optical transceiver.



Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.



Save Cost By Buying 10G SFP+ BIDI From Original Manufacturer Fiber-Mart Directly.

Fiber-Mart is an professional manufacturer & supplier of 10G SFP+ BIDI transceivers. All of our 10G SFP+ BIDI transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 10G SFP+ BIDI transceivers to work in your system and all of our 10G SFP+ BIDI transceivers come with a lifetime advance replacement warranty. If you have questions about 10G SFP+ BIDI optics, please feel free to contact us at [email protected]. If you have questions about 10G SFP+ BIDI optics, please feel free to contact us at [email protected].


Part Number

Distance

Wavelength

Port

Datasheet

SFP-10G-BX231

10km

T1270/R1330nm LC

SFP-10G-BX321

10km

T1330/R1270nm LC
SFP-10G-BX232

20km

T1270/R1330nm LC
SFP-10G-BX322

20km

T1330/R1270nm LC
SFP-10G-BX234

40km

T1270/R1330nm LC
SFP-10G-BX324

40km

T1330/R1270nm LC
SFP-10G-BX236 60km T1270/R1330nm LC
SFP-10G-BX326 60km T1330/R1270nm LC
SFP-10G-BX458 80km T1490/R1550nm LC
SFP-10G-BX548 80km T1550/R1490nm LC



Datasheet to Download

Customer Reviews


by Dave Maven
Date Added: 12/06/2022
Well received with good performance, 100% working fine sfp+ modules from fibermart!

Rating: 5 of 5 Stars [5 of 5 Stars]
