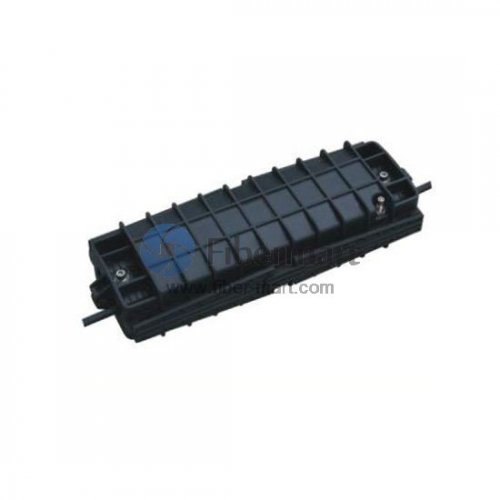

24 Fibers 2In-2Out FM032 Series Horizontal Fiber Optic Splice Closure

Description

Horizontal (inline) fiber optic splice closures are made of excellent engineering plastics. Fiber-Mart supply different ports types, fittings and different fiber optic core numbers for horizontal fiber optic splice closures.
Fiber-Mart's Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.

Key Features

Suitable for ordinary fiber and ribbon fiber.
Fully kitted with all parts for convenient operation.
Overlap structure in splicing tray for easy installation.
Fiber-bending radium guaranteed more than 40mm.
Easy to install and re-entry with a common can wrench.
Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
Stand up to severe condition of moisture,vibration and extreme temperatures.

Main Technical Parameters

Item	FM-F032
Cable ports	4 Entires(2 on each side)
Number of fiber fusion	24 (bunchy)
Splice tray cores	24 (bunchy)
Number of splice trays(max)	4
Dimension (mm)	485x165x110
Cable diameter(mm)	Ф10～Ф22
Max capacity of fiber	96 (bunchy)
Working temperature	-40℃~65℃
Insulation resistance	＞2×104MΩ
Opening Type	Anti-removable Screw-Type
Installation Type	Aerial
Sealing structure	Sticky cincture

Notes: Installation of Aerial is default in Fiber-Mart, the other can also be customized according to your requirements, please contact at [email protected] for details.

Application

Be suitable for Aerial,Duct and Direct Buried application.
CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.

Horizontal (inline)Optic Splice Closure

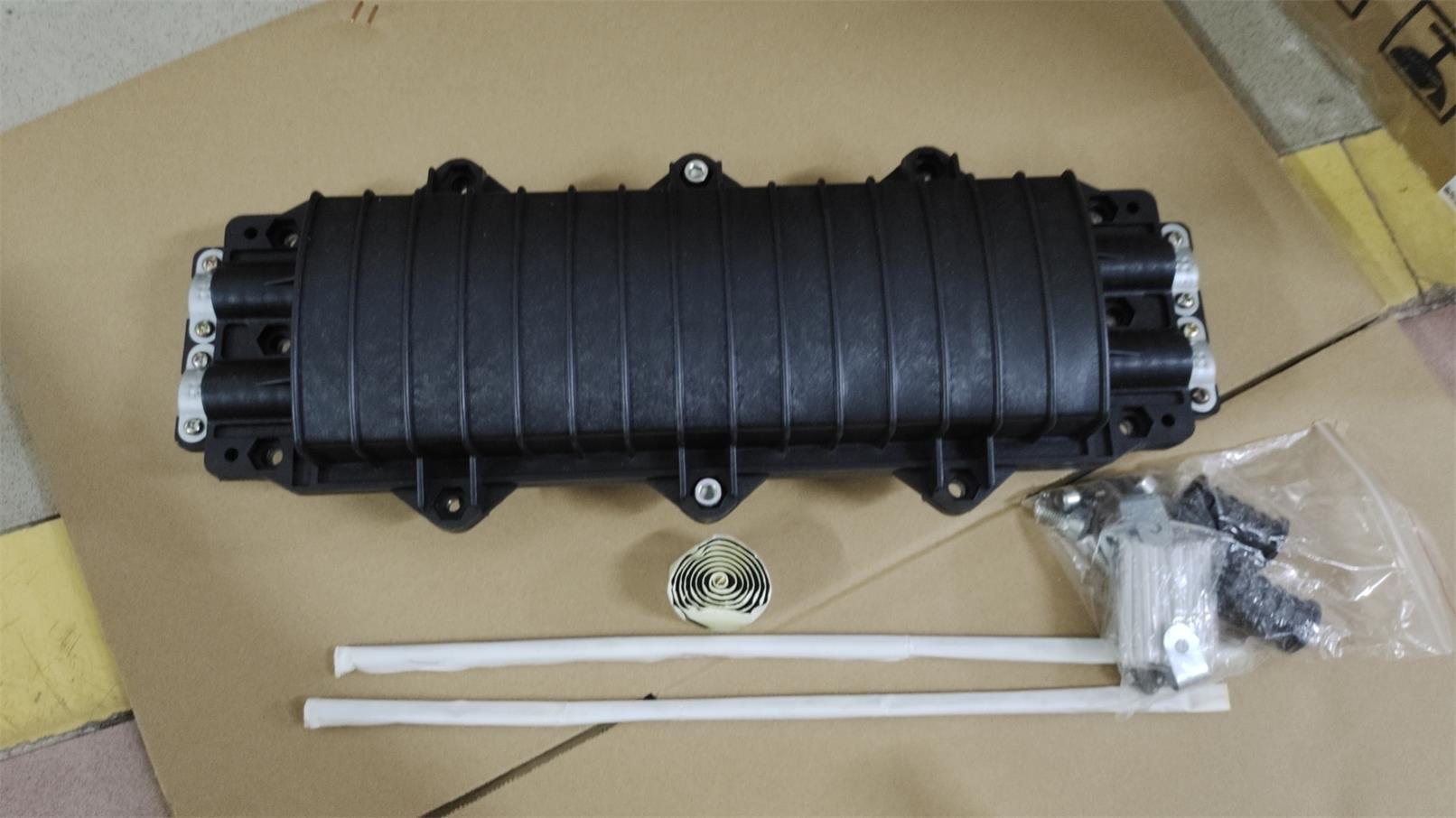

Main components

No.	Name of components	Quantity	Usage	Remarks
1	Housing	1 set	Protecting fiber cable splices in whole
2	Insert plate	2 pairs	Fixing the housing	175x56x30(mm)
3	Fiber optic splice tray (FOST)	Max 4 trays(bunchy)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:12,24,36,48,72,96(cores)
4	Foundation	1 set	Fixing fiber cable, reinforced core and FOST
5	Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
6	Port plug	6pieces	Sealing empty ports
7	Pressure testing valve	1 set	After injecting air, it is used for pressure testing and sealing testing	Configuration as per requirement
8	Earthing deriving device	1 set	Deriving metallic parts of fiber cable in FOSC for earthing connection	Configuration as per requirement

Optional accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing devices	To put through as per actual requirement
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special wrench	3 pieces	Fixing bolts, tightening nut of reinforced core
10	Measuring paper	1 piece	To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape	To measure perimeter with the corresponding measuring paper
11	Buffer tube	To be decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
